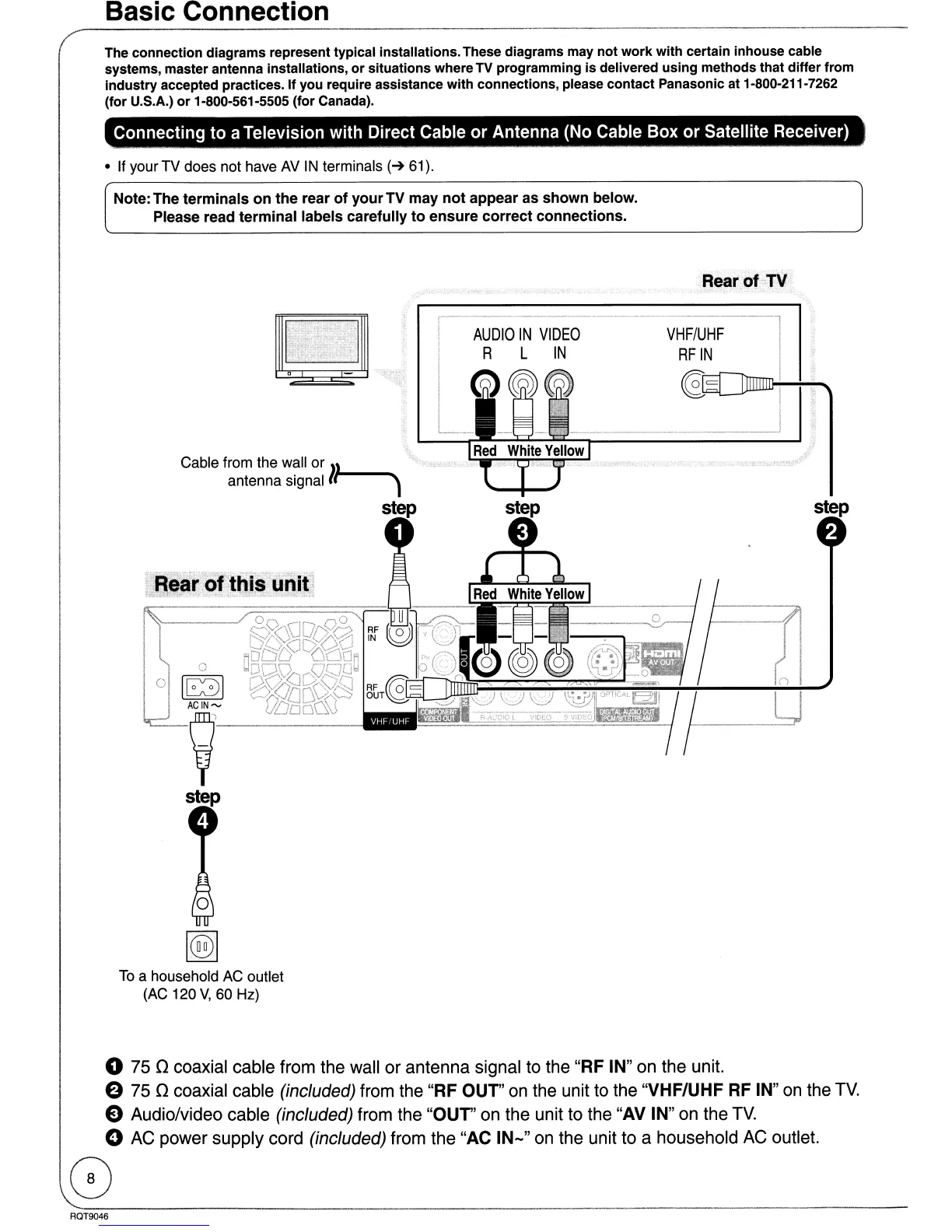

Basic Connection
The connection diagrams represent typical installations.These diagrams may not work with certain inhouse cable
systems, master antenna installations,
or
situations where
TV
programming is delivered using methods that differ from
industry accepted practices. If you require assistance with connections, please contact Panasonic at 1-800-211-7262
(for U.S.A.)
or
1·800-561-5505 (for Canada).
Connecting
to
a Television with Direct Cable
or
Antenna (No Cable Box
or
Satellite Receiver)
• If your TV does not have
AV
IN
terminals
(-+
61).
Note:The terminals on the rear
of
your
TV
may not appear as shown below.
Please read terminal labels carefully to ensure correct connections.
Rear of-TV
Cable from the wall
or
)~
antenna signal n 1
step
Rear
of
this unit
o
o
I~I
AC
IN
"-
V
step
To
a household AC outlet
(AC 120
V,
60 Hz)
AUDIO
IN
VIDEO
R L
IN
R-I\JDiO-l
\no=:o
VHF/UHF
RFIN
step
o 75 0 coaxial cable from the wall or antenna signal to the "RF IN" on the unit.
e 75 0 coaxial cable (included) from the "RF OUT"
on
the unit to the "VHF/UHF
RF
IN"
on
the
TV.
a Audio/video cable (included) from the "OUT' on the unit to the "AV IN" on the
TV.
o
AC
power supply cord (included) from the "AC
IN-"
on the unit to a household
AC
outlet.
0)
RQT9046
