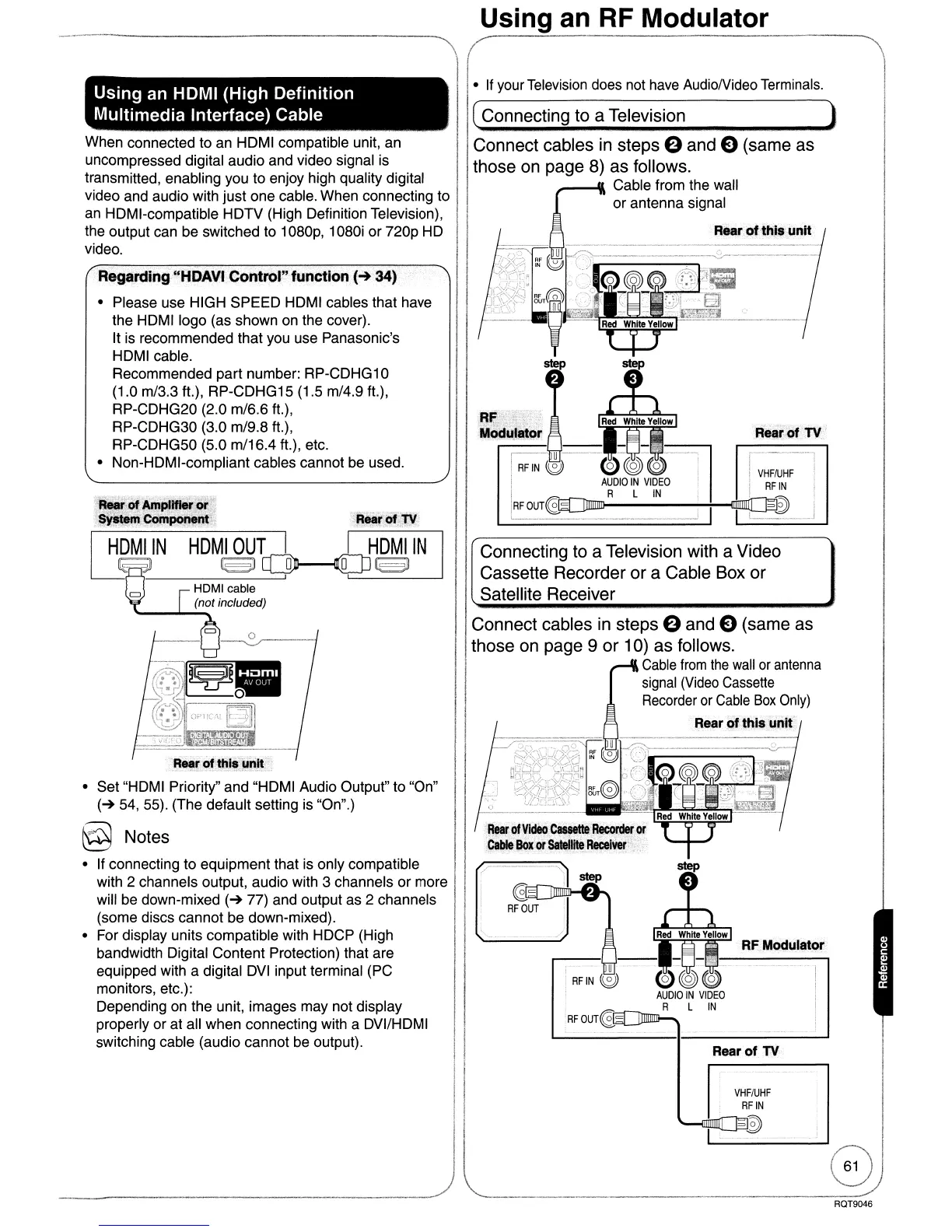

Using an HDMI (High Definition
Multimedia Interface) Cable
When connected to an HDMI compatible unit, an
uncompressed digital audio and video signal is
transmitted, enabling you to enjoy high quality digital
video and audio with just one cable. When connecting to
an HDMI-compatible HDTV (High Definition Television),
the output can be switched to 1080p, 1080i or 720p HD
video.
Regarding "HDAVI
Control"
function
(-+
34)
• Please use HIGH SPEED HDMI cables that have
the
HDMIIogo
(as shown on the cover).
It
is
recommended that you use Panasonic's
HDMI cable.
Recommended part number: RP-CDHG10
(1.0 m/3.3 ft.), RP-CDHG15 (1.5 m/4.9 ft.),
RP-CDHG20 (2.0 m/6.6 ft.),
RP-CDHG30 (3.0 m/9.8 ft.),
RP-CDHG50 (5.0 m/16.4 ft.), etc.
• Non-HDMI-compliant cables cannot be used.
HDMI cable
(not included)
'-_...I-..;.....,.
R
..
r
o!
tfIls
.~nlt.
• Set "HDMI Priority" and "HDMI Audio Output" to "On"
(-+
54, 55). (The default setting is "On".)
@ Notes
• If connecting to equipment that is only compatible
with 2 channels output, audio with 3 channels or more
will be down-mixed
(-+
77) and output as 2 channels
(some discs cannot be down-mixed).
• For display units compatible with HDCP (High
bandwidth Digital Content Protection) that are
equipped with a digital
DVI
input terminal (PC
monitors, etc.):
Depending on the unit, images may not display
properly or at all when connecting with a DVI/HDMI
switching cable (audio cannot be output).
Using an RF Modulator
• If
your
Television does
nOf
have AudiolVideo
Term~
( Connecting to a Television )
Connect cables
in
steps a and E) (same as
those
on
page 8) as follows.
__
....
Cable from the wall
or antenna signal
Rurof
th.ls
.unit
Rear
of
TV'
I
VHF/UHF
1
1
I
RF
IN
iIDIIIID----+--lIl)lllI[jl~
__
~
Connecting to a Television with a Video
Cassette Recorder or a Cable Box or
Satellite Receiver
Connect cables
in
steps a and E) (same as
those on page 9 or 10) as follows.
Cable
from
the
wall
or
antenna
signal
(Video
Cassette
Recorder
or
Cable
Box
Only)
Rear
qf
this unit
RF
Modulator
RFOUT~=
Rear
of
TV
ROT9046
To Next Page
