5.2 PC Connection
KX-NS1000
has 3 physical ports for PC and LAN connections. A default IP address is assigned to each port.
A PC connect to the PBX either directly or over a LAN using the appropriate method for the port being used.
Port Default IP Address Default Subnet Mask
MNT Port 223.0.0.1
255.255.255.0
LAN Port 192.168.0.101

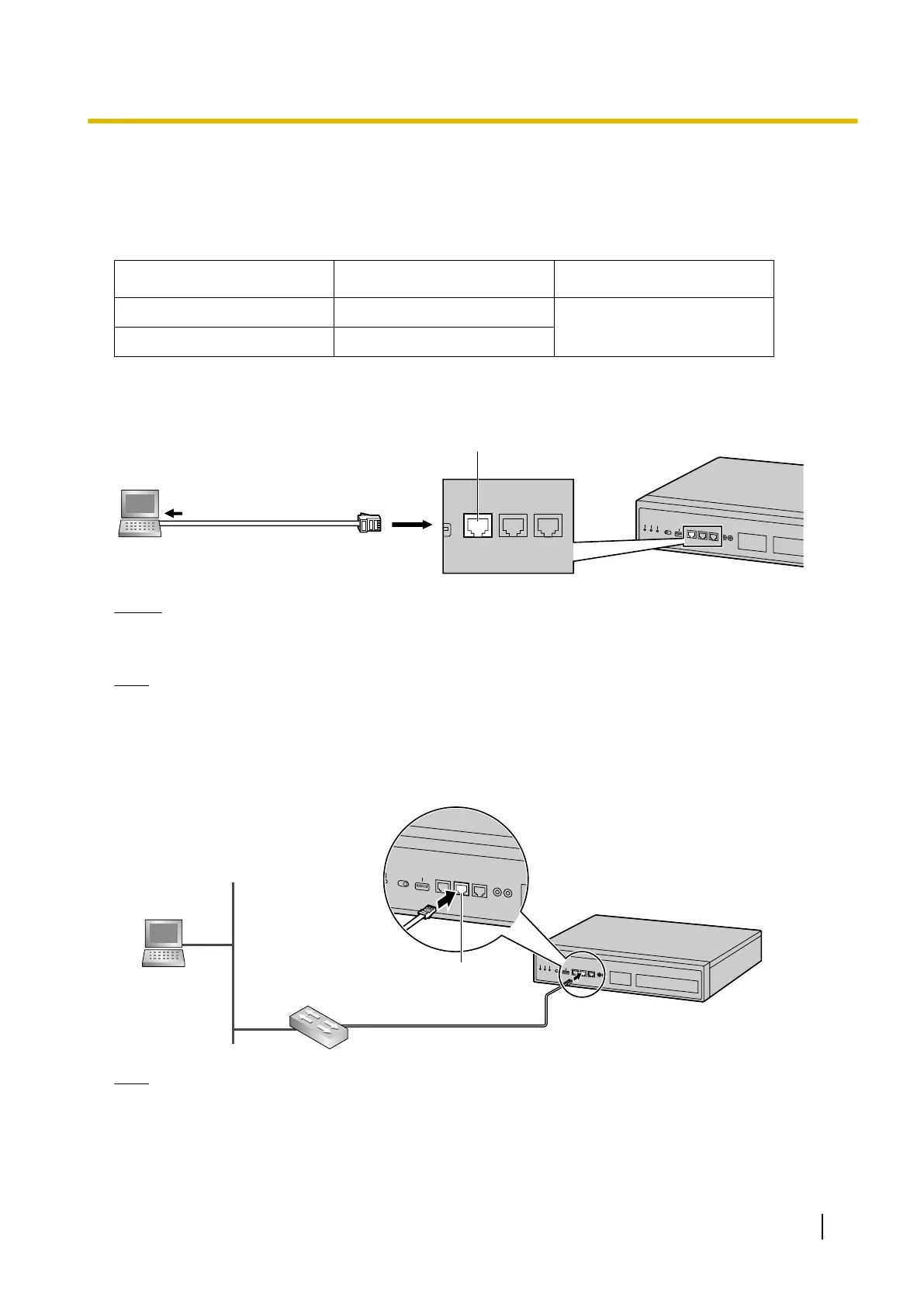

Direct Connection
To LAN Port
MNT Port
Notice
When connecting the PC to the MNT port, if the PC is set to obtain the IP address automatically, the IP
address of the PC will be set to an appropriate IP address to establish a connection to the PBX.
Note
• Use an Ethernet cable with an RJ45 connector to connect a PC to the PBX.
• For pin assignments and maximum cabling distance, refer to
"4.10 Connection of Peripherals".
Connection via LAN
Switching Hub
LAN Port
LAN
PC
Note
For details about connecting a switching hub to the PBX, refer to
"4.11.1 LAN Connection for the Main
Unit".
Installation Manual 199
5.2 PC Connection

Panasonic KX-NS1000 Specifications

General

Type	Hybrid IP-PBX
Max Concurrent Calls	256
VoIP Protocols	SIP, H.323
Power Supply	AC 100-240V, 50/60Hz
Maximum Extensions	1, 000
IP Extensions	1000
Operating Temperature	0°C to 40°C
Humidity	10 to 90% (non-condensing)
Max Users	1000
