2-16-3 Communication, I/O Setting (Environment 3)
Reference
• Setting of Environment 3 is saved without overwriting.
1
3
2


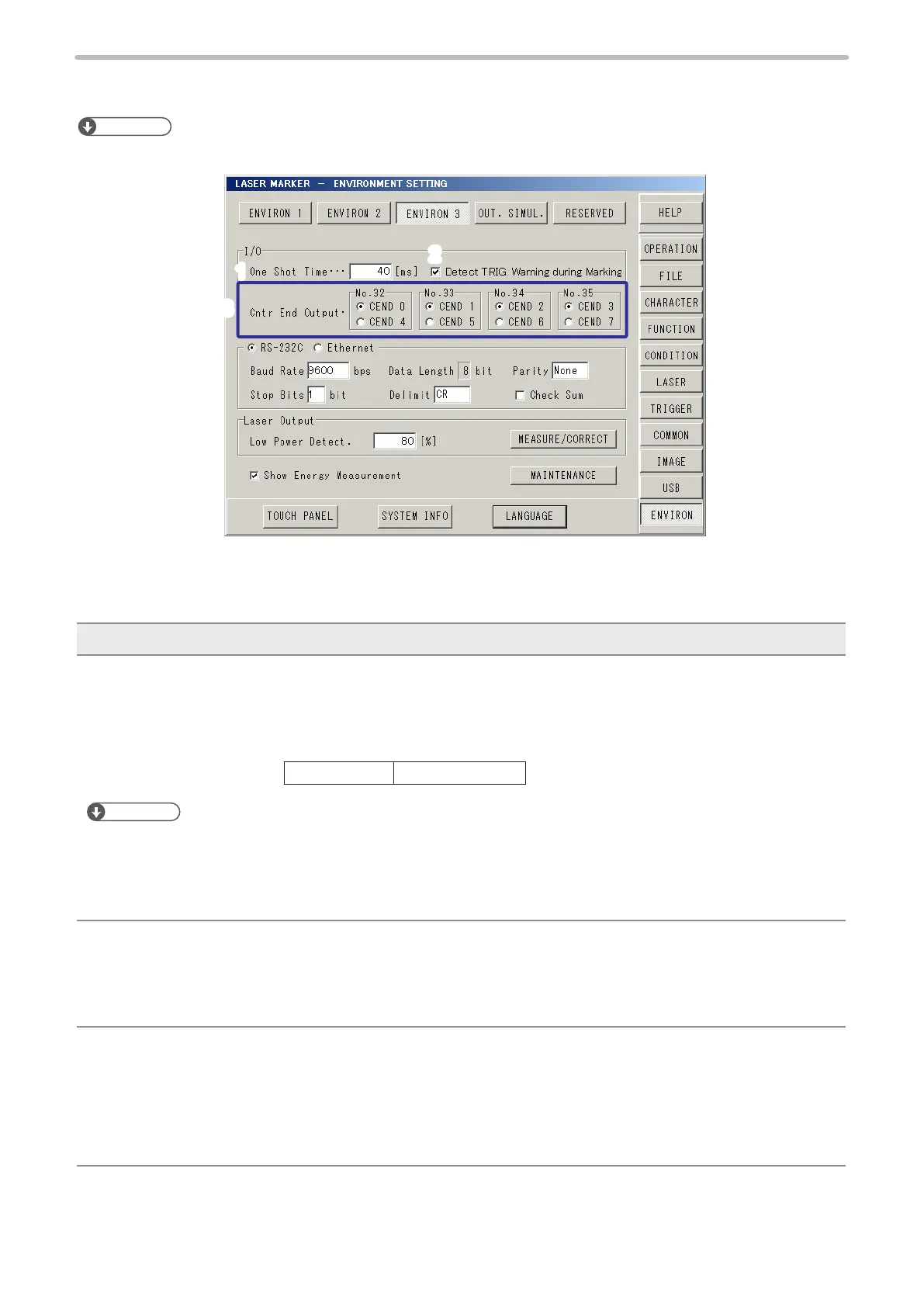

Input/Output
This screen species the settings related to the signals on the output terminal and I/O connector.
Item Description
1 One-shot time : Sets the output duration for the following signals.
There is a margin of error between the setting value and actual output time.
• MARK END OUT
• SET OK OUT
• TRIG. WARNING of E800
Setting Range 2 to 510 ms
Reference
• In case the marking time is shorter than the set one-shot output time, the marking output remains ON until the one-
shot output time ends.
• “E623 Too narrow marking interval for proportioned ying object” is generated at equidistant marking to ying object
when the setting of one-shot time is longer than the period in which the line moves the distance specied at “Interval”.
2 Detect TRIG.
Warning during
Marking
: Enabling this setting, the warning (E800) to show that the trigger cannot be accepted is
output in case the trigger is input while the shutter is opened.
If the invalid trigger is detected, the warning E800 occurs for the setting one-shot time.
When this function is disabled, the warning does not occur if there is an invalid trigger
input.
3 Counter End Output: No. 32, No. 33, No. 34, No. 35
Selects assignation of I/O Connector No. 32 to 35.
No. 32
No. 33
No. 34
No. 35
:
:
:
:
Selects either “Counter 0 end” or “Counter 4 end”.
Selects either “Counter 1 end” or “Counter 5 end”.
Selects either “Counter 2 end” or “Counter 6 end”.
Selects either “Counter 3 end” or “Counter 7 end”.
