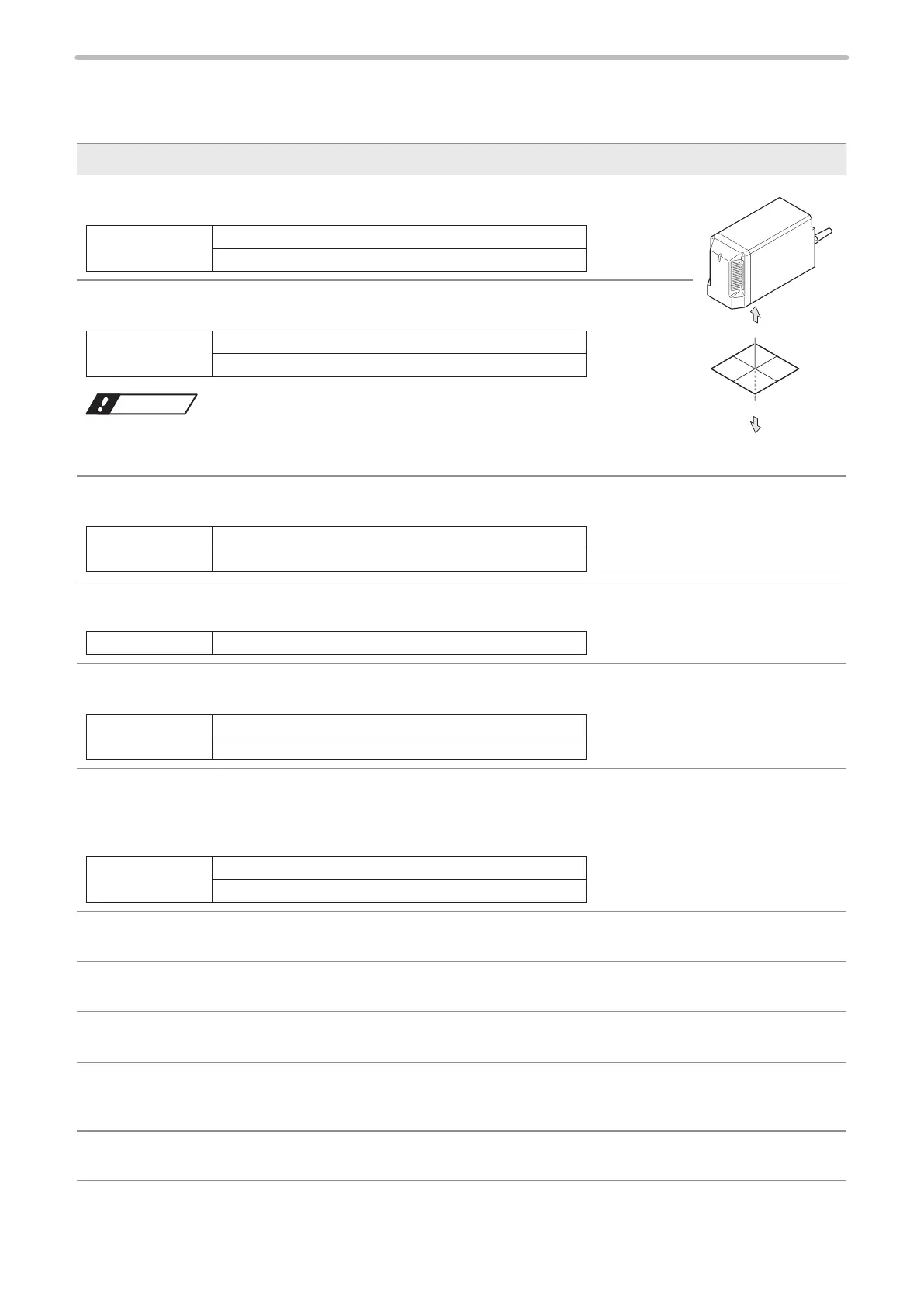

2-4-2 Operator Adjustable Items
Select the items to give the permission of setting change in the environment setting screen of “2-16-1 Display Setting
(Environment 1)” (P.225).
Description of Changeable Items
X/Y Offset:
Sets X and Y offset values.
Setting Range
-60.000 to +60.000 mm (LP-M500 / LP-Z130)*
-45.000 to +45.000 mm (LP-S500)*
+Y
-Z
-Y
+X
-X
+Z
Z Offset (LP-M / LP-Z series only) :
Sets Z offset value.
Setting Range
-22.000 to +22.000 mm (LP-M500)*
-25.000 to +25.000 mm (LP-Z130)*
Notice
• The work distance adjusted with the Z-offset setting should conform with the actual distance
from the head base to the marking surface for the proper marking performance.
Laser Power:
Sets the laser power.
Setting Range
12.0 to 100.0 (LP-M500 / LP-S500)*
0.5 to 100.0 (LP-Z130)*
Scan Speed:
Marks value of scan speed.
Setting Range 1 to 12000 mm/s (LP-M500 / LP-S500 / LP-Z130)*
Pulse Cycle (Except LP-SxxxW type):
Sets the laser pulse cycle.
Setting Range
2.0 to 20.0
m
s (LP-M500 / LP-S500)*
10.0 to 50.0
m
s (LP-Z130)*
Line Speed / Line Speed Fine Adjustment (Except LP-SxxxW type) :
Sets the line speed for marking to ying object. Displayed with the setting of the marking to ying object without encoder.
The ne adjustment of the line speed can be set after starting the marking in run mode. Refer to “2-12-2 Marking to
Flying Object” (P.194).
Setting Range
0.060 to 170.000 m/min. (LP-M500 / LP-Z130)*
0.060 to 240.000 m/min. (LP-S500)*
FILE:
Selects le No. Refer to “2-7-2 Change File No.” (P.97) for setting method.
CHARACTER :
Sets character. Refer to “2-8-2 Character Input” (P.104) for setting method.
SAVE:
Overwrites and registers the items changed on operator adjustment screen. Refer to “2-7-3 Save” (P.98).
ENERGY (Marking Energy) (LP-M series and LP-Sxxx type only) :
Sets the warning threshold for the measurement result of the marking energy. Refer to “2-11-2 Marking Energy
Measurement” (P.187) for setting method.
Laser Check :
Radiates the laser to the center of marking eld by laser power set. Refer to “Laser Check” (P.87).
* For the setting range of the other model, refer to “Input Setting Value by Series” (P.296).
