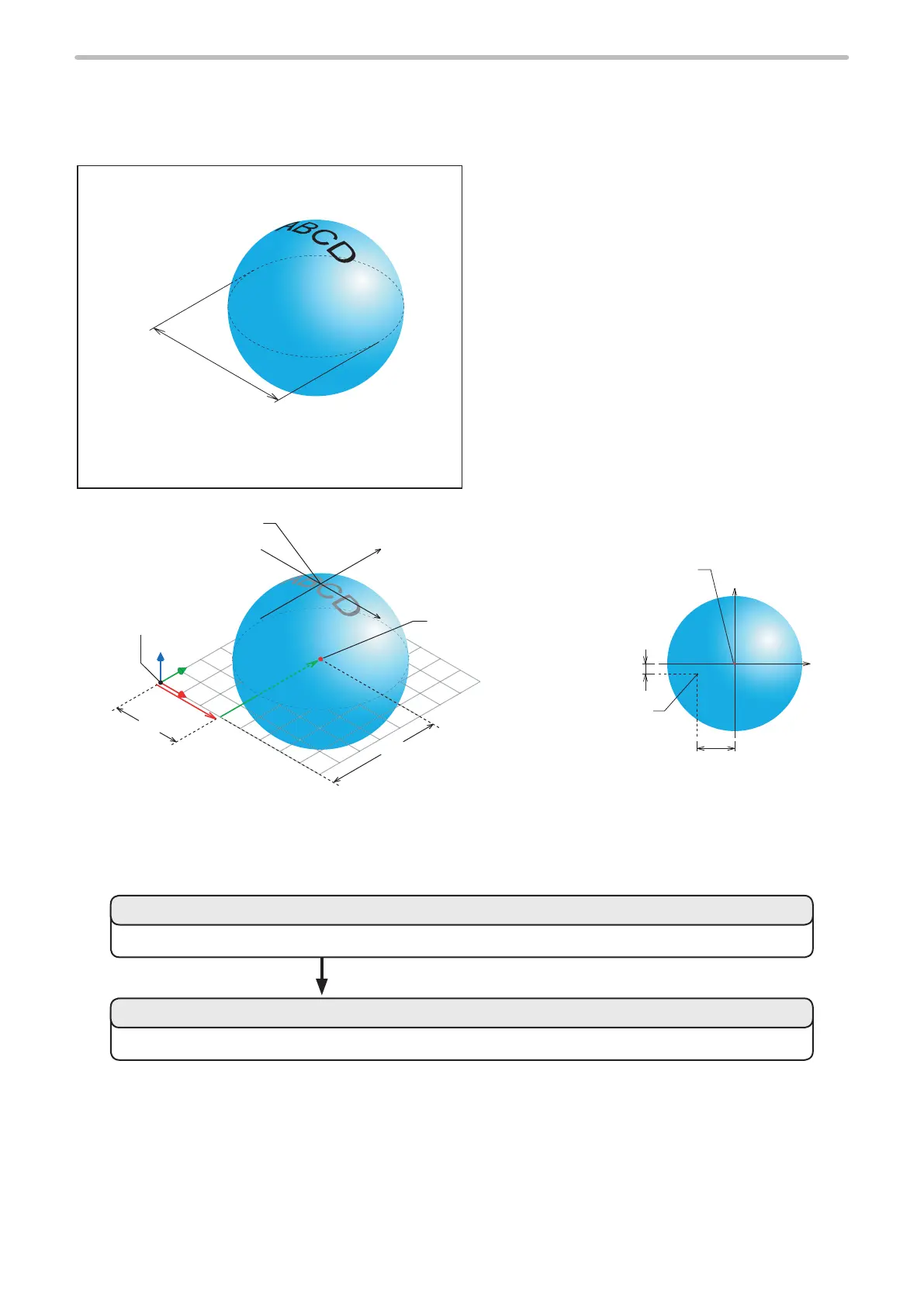

1-4-7 Mark on Sphere
Sample
The character is marked on the sphere.
Diameter: 24mm
[Setting of gure]
• Layer No. : 0
• Work Shape : Sphere Convex
• Diameter : 24 mm
• Center X : 12 mm
• Center Y : 18 mm
• Center Z : 0 mm
[Character Condition]
• Marking content : ABCD
• Starting Coordinate X : -8 mm
• Starting Coordinate Y : -2 mm
• Character Height : 4 mm
• Character Width : 3 mm
Marking Image
• Character Interval : 4 mm
X
Y
X
Y
18mm
12mm
Original Point of
Local Coordinate
Original Point of
World Coordinate
Center of
3D Figure
ABCD
X
Y
-2mm
-8mm
Original Point of
Local Coordinate
X Position,
Y Position
(Character
Condition)
Marking Figure Marking Character
Setting Flow
Set the character type and character position to be marked on the sphere.
Set the size, angle, and center position of the sphere.
2. Set the marking condition.
1. Set the sphere.
To Next Page
