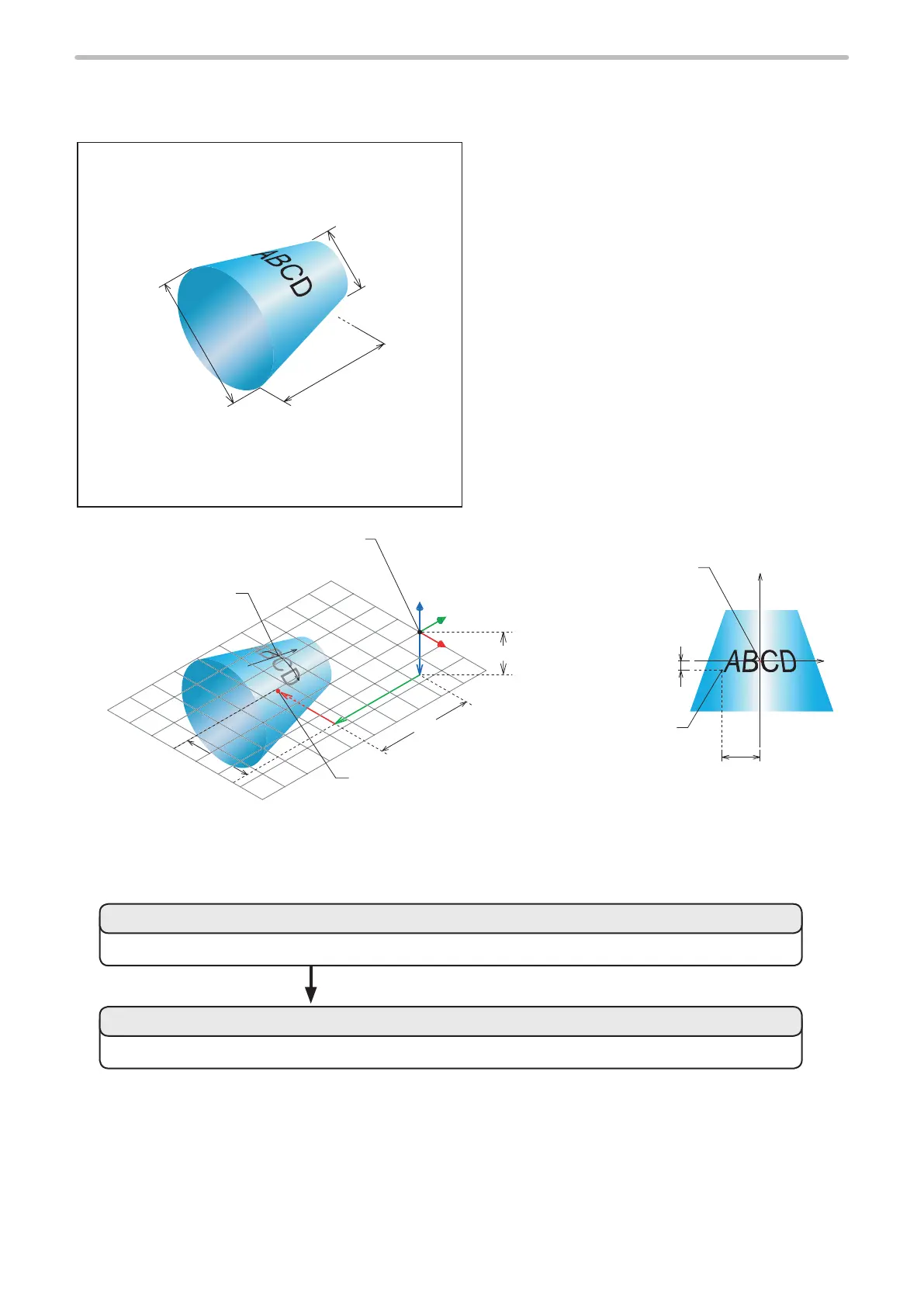

1-4-5 Mark on Horizontal Cone
Sample
Top-base
Diameter of
Cone: 10 mm
Bottom-base
Diameter of
Cone: 20 mm
Length of
Cone: 20 mm
[Setting of gure]
• Layer No. : 0
• Work Type : Hori. Cone Convex
• Top-base Diameter : 10 mm
• Bottom-base Diameter : 20 mm
• Length of Cone : 20 mm
• Center Position X : -10 mm
• Center Position Y : -16 mm
• Center Position Z : -8 mm
[Character Condition]
• Marking content : ABCD
• Starting Coordinate X : -8 mm
• Starting Coordinate Y : -2 mm
• Character Height : 4 mm
• Character Width : 3 mm
Marking Image
• Character Interval : 4 mm
X
Y
Z
X
Y
-16mm
-8mm
-10mm
Original Point of Local
Coordinate
Center of 3D Figure
Original Point of World
Coordinate
X
Y
-2mm
-8mm
Original Point of
Local Coordinate
X Position, Y Position
(Character Condition)
Marking Figure Marking Character
Setting Flow
Set the character type and character position to be marked on the cone (horizontal).
Set the size, angle, and center position of the cone.
2. Set the marking condition.
1. Set the cone (laid-down).
To Next Page
