Before Use

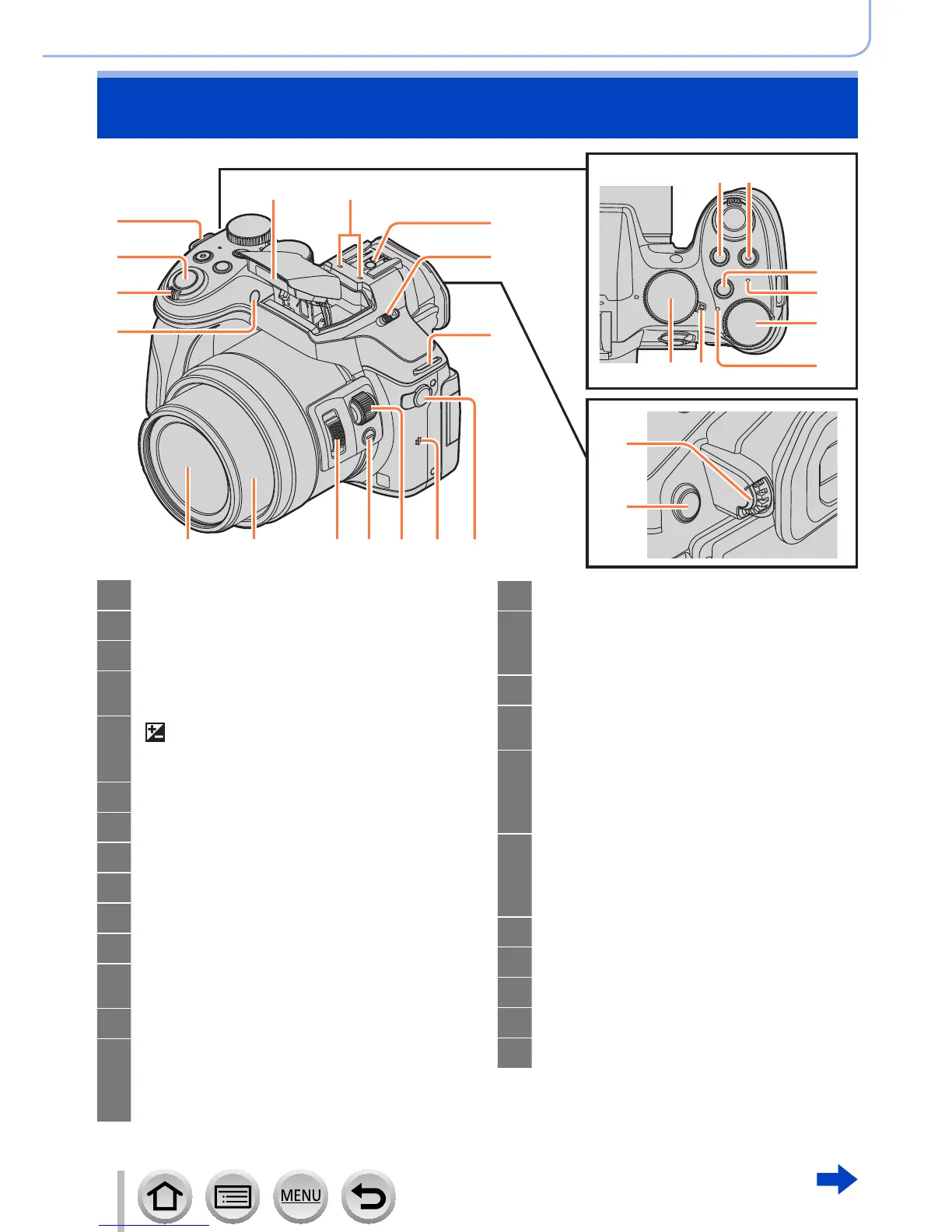

Names and Functions of Main Parts
1
Shoulder strap eyelet (→22)
2
Shutter button (→38)
3
Zoom lever (→37)
4
Self-timer indicator (→180) /
AF Assist Lamp (→144)
5
[ ] (Exposure Compensation) button
(→154) /
[Fn1] button (→61)
6
Motion picture button (→39)
7
[Fn2] button (→61)
8
Wi-Fi
®
connection lamp (→257)
9
Rear dial (→41)
10
Status indicator (→34)
11
Camera [ON/OFF] switch (→34)
12
Mode dial (→40)
Use this to select the recording mode.
13
Flash (→206)
14
Stereo microphone (→226)
Be careful not to cover the microphone
with your finger. Doing so may make
sound difficult to record.
15
Hot shoe (→321)
16
Flash open lever (→206)
The flash opens, and recording with the
flash becomes possible.
17
Diopter adjustment dial (→50)
18
[LVF] button (→50) /
[Fn4] button (→61)
19
[MIC] socket (→323)
An external microphone (optional) can
record higher quality audio than the
built-in microphone.
20
Speaker (→66)
Be careful not to cover the speaker with
your finger. Doing so may make sound
difficult to hear.
21
Side dial (→41)
22
Side button (→44)
23
Side lever (→37)
24
Lens barrel (→36)
25
Lens (→356)
1
4
3
2
5 6
7
8
9
10
1112
17
18
13 14
15
16
1
19202122232425
