Names of the
Components

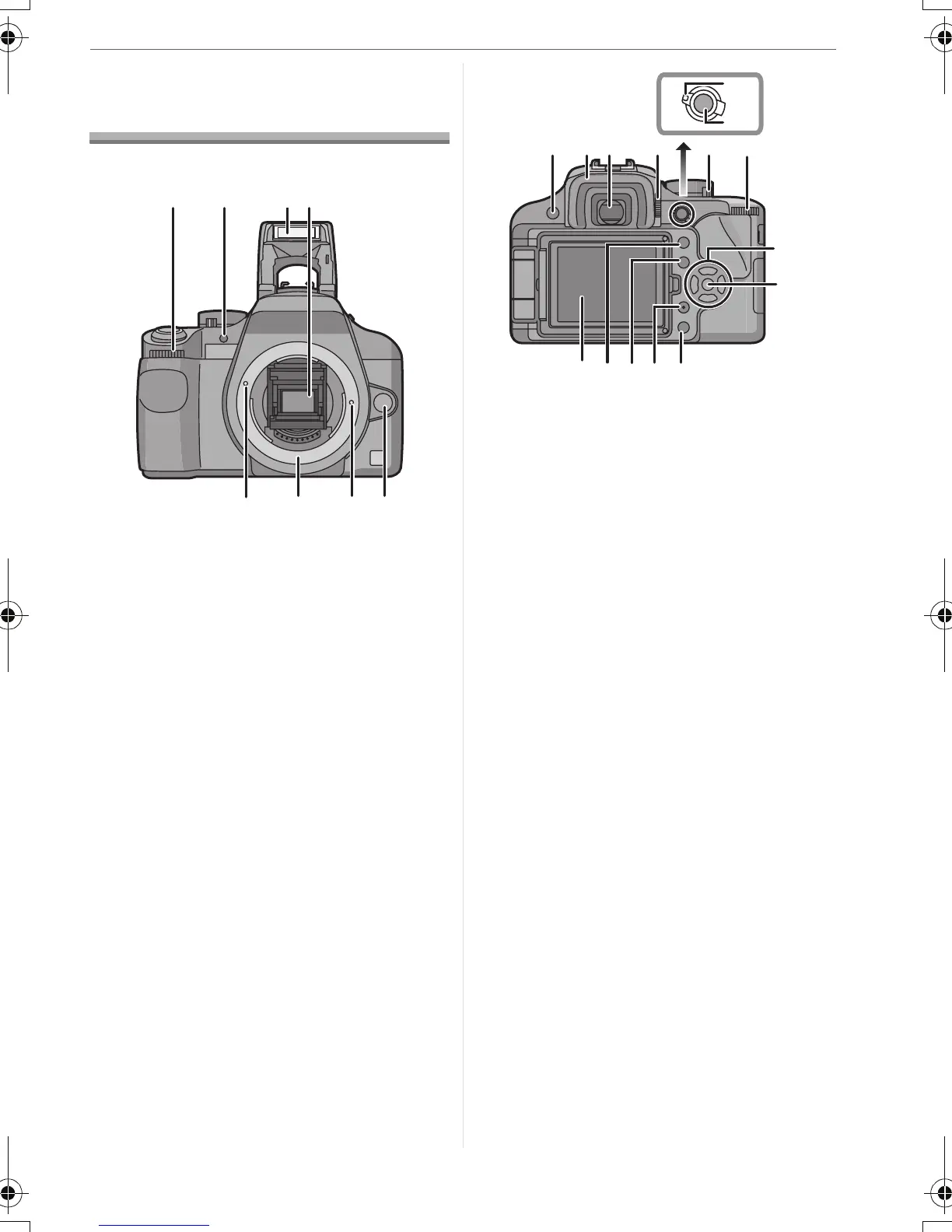

∫ Camera body
1 Front dial (P41, 42, 45, 51)
2 AF assist lamp (P106)
Self-timer indicator (P74)
3 Flash (P64)
4 Mirror
5 Lens fitting mark (P14)
6 Mount
7 Lens lock pin
8 Lens release button (P15)
9 [LIVE VIEW] button (P34, 54)
10 Eye cup (P17)
11 Viewfinder (P32, 35, 131)
12 Diopter adjustment dial (P35)
13 Focus mode lever (P36, 40, 45, 58, 60,
62)
14 [AFL/AEL] button (P69)
15 Camera ON/OFF switch (P24)
16 Rear dial (P42, 44, 51, 52, 116)
17 LCD monitor (P33, 36, 48, 54, 55, 56,
57, 131)
18 Playback button (P48, 49, 51, 52, 53,
124)
19 [DISPLAY] button (P36, 48, 55)
[LCD MODE] button (P56)
20 [FUNC] button (P91)
21 Delete button (P49)
22 Cursor buttons
3/ISO (P78)
2/AF mode (P60)
1/Metering mode (P81)
4/WB (White balance) (P75)
23 [MENU/SET] button (P24)
