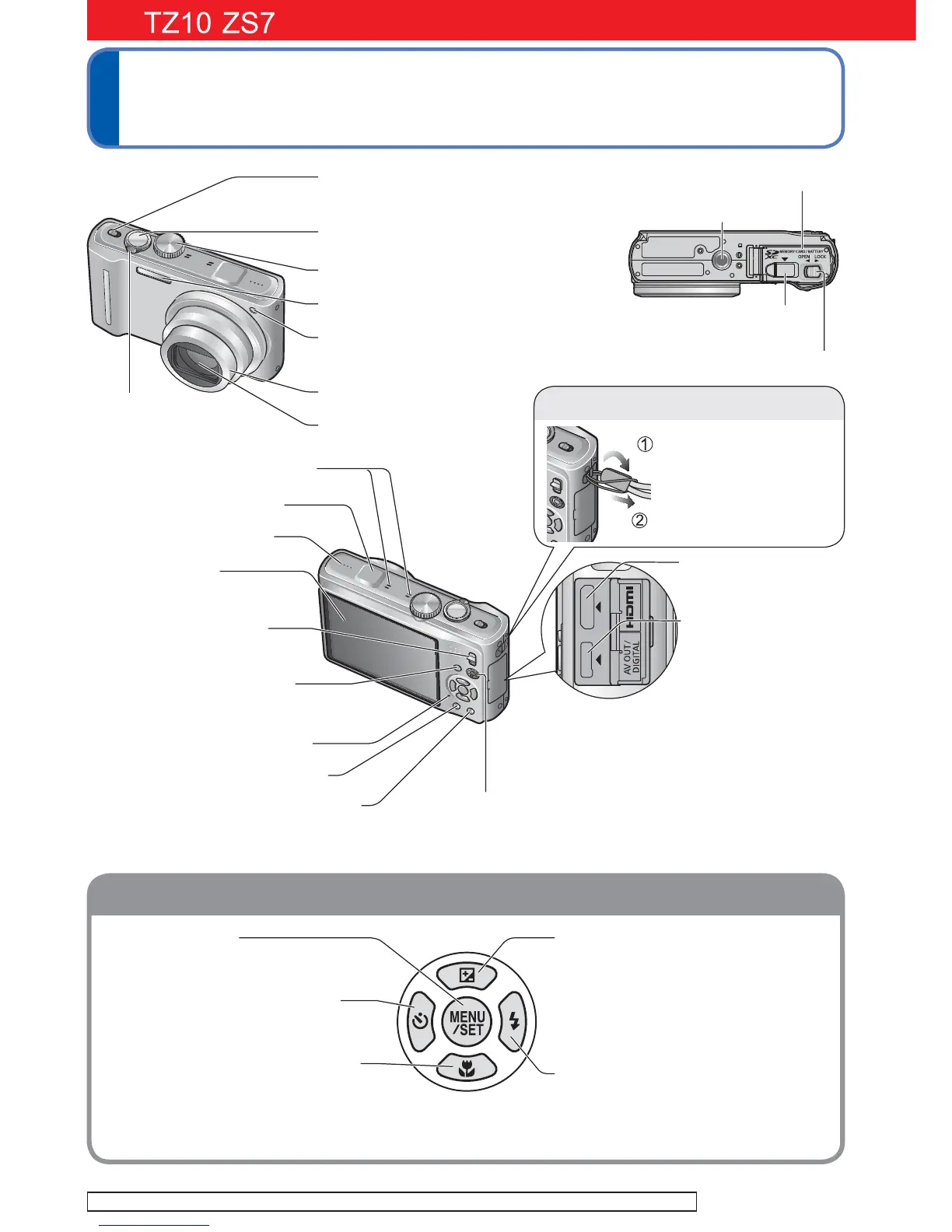

Names of parts
Cursor button
[MENU/SET]
(menu display/set/finish) (20)
Left cursor button ()
• Self-timer (52)
Down cursor button ()
• Macro Mode (49)
• AF Lock (AF Tracking) (36, 99)
Tripod receptacle
Card/Battery door (14)
Release lever (14)
Hand strap eyelet
We recommend
using the supplied
hand strap to
avoid dropping
the camera.
Camera ON/OFF switch
(17)
Shutter button (34)
Mode dial (31)
Flash (47)
Self-timer indicator (52)/
AF Assist Lamp
(106)
Lens barrel
Lens
(7)
Zoom lever
(39)
Microphone (72, 106)
GPS antenna (84)
Speaker (22, 115)
LCD monitor
(6, 23, 46, 152, 158)
REC/PLAY switch
(30)
[EXPOSURE] button
(56, 57, 58)
Status indicator (84)
[DISPLAY] button (46)
Q.MENU (Quick setting 112)/
Delete button
(45)
Motion picture button (72)
Up cursor button ()
• Exposure Compensation (53)
• Auto Bracket (54)
• Multi Aspect (55)
• White Balance fine adjustment
(98)
Right cursor button ()
• Flash (47)

In this manual, the button that is used is shaded or indicated by.

The illustrations and screens in this manual may differ from
the actual product.
DC coupler cover
(15)
HDMI socket
(148, 149)
[AV OUT/
DIGITAL]
socket
(141, 144, 147)
For the DMC-TZ8/DMC-ZS5 (10)
