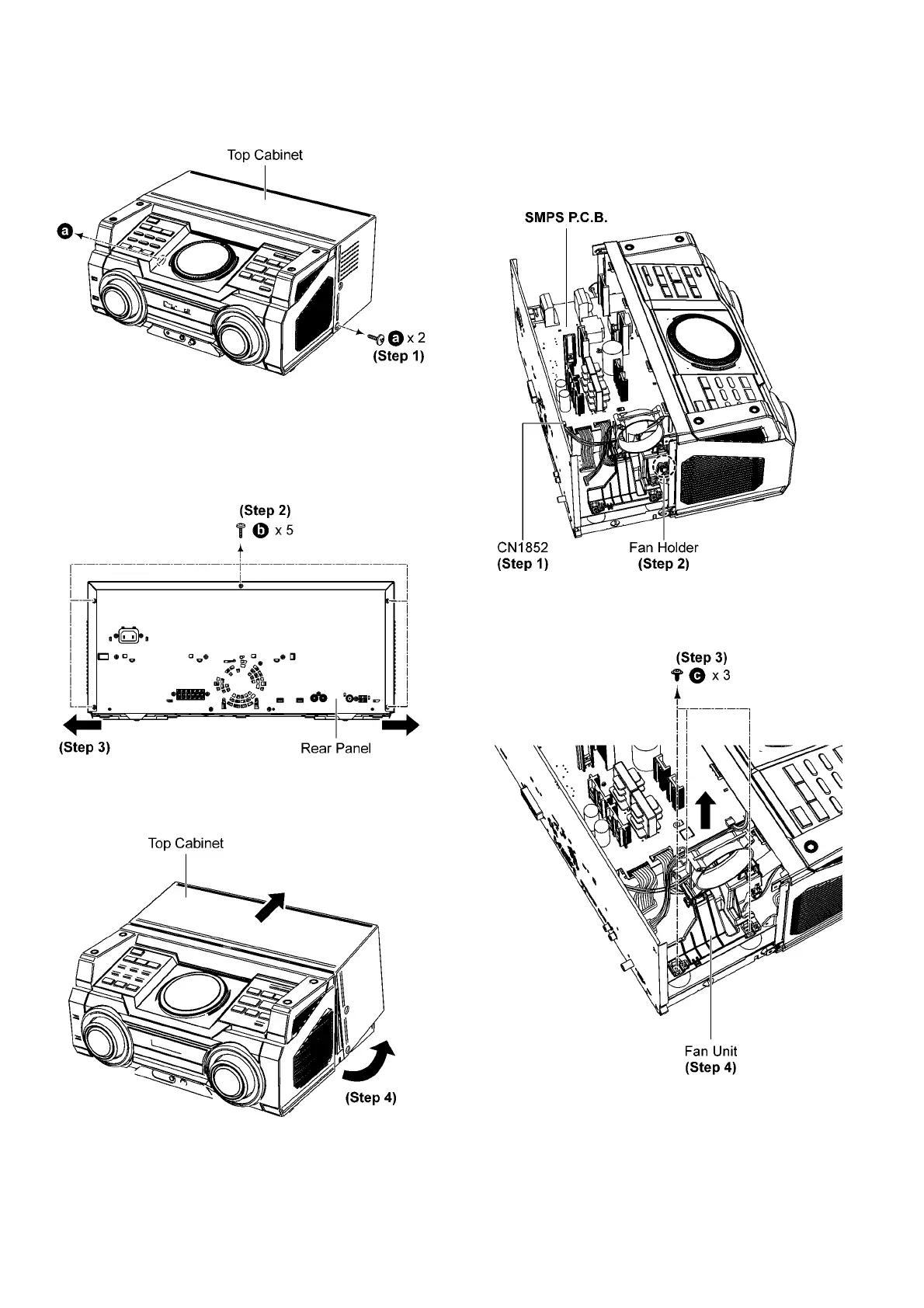

8.4. Disassembly of Top Cabinet
Step 1 Remove 2 screws.
Step 2 Remove 5 screws.
Step 3 Slightly release both sides of Top Cabinet as arrow
shown.
Step 4 Slightly lift up to remove Top Cabinet.
8.5. Disassembly of Fan Unit
• Refer to “Disassembly of Top Cabinet”.
Step 1 Detach 2P Wire at connector (CN1852) on SMPS
P.C .B..
Step 2 Lift up wire from Fan Holder.
Step 3 Remove 3 screws.
Step 4 Remove Fan Unit.
