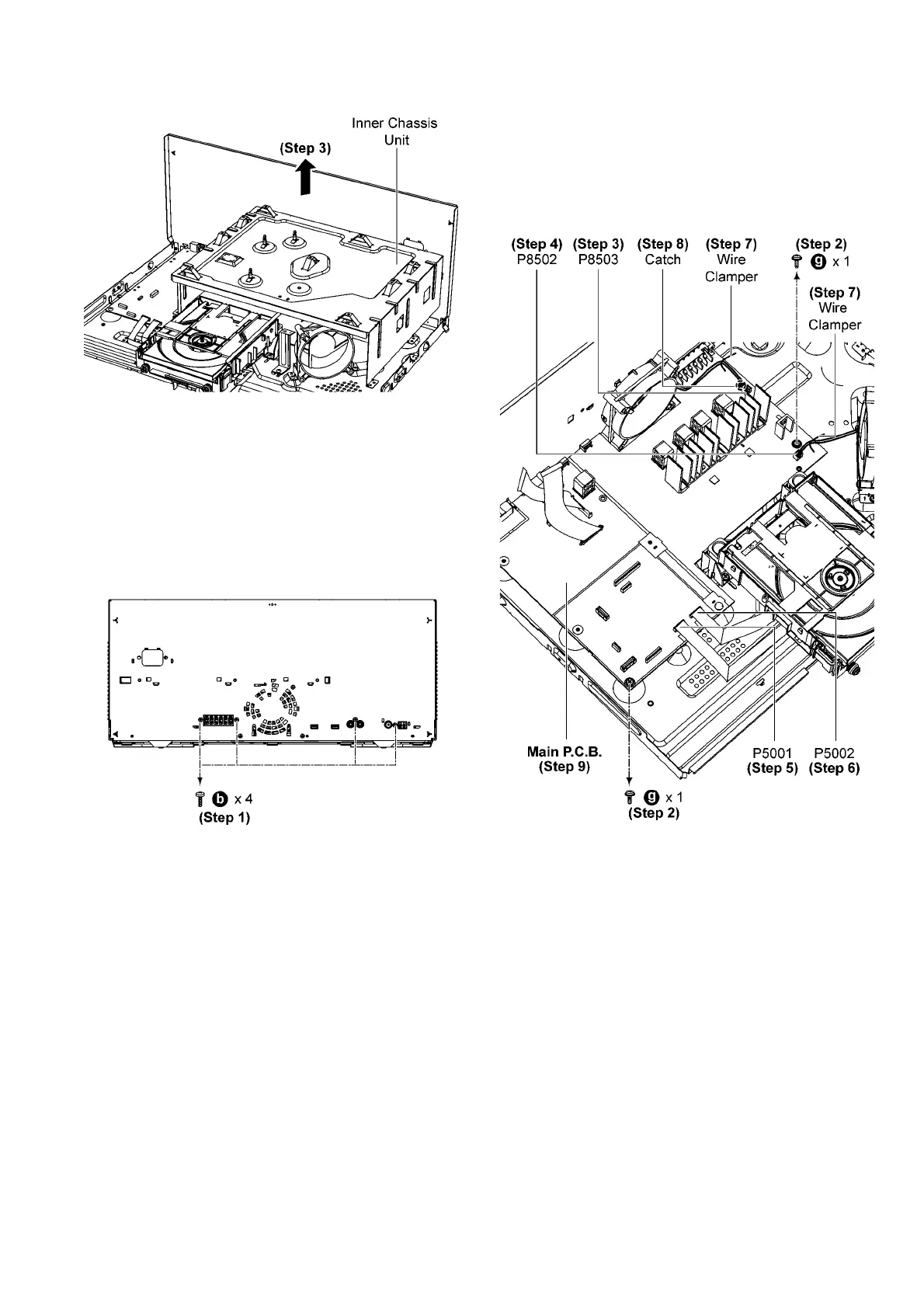

Step 3 Lift up to remove Inner Chassis Unit.
8.21. Disassembly of Main P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of SMPS P.C.B.”.
• Refer to “Disassembly of Inner Chassis Unit”.
Step 1 Remove 4 screws.
Step 2 Remove 2 screws.
Step 3 Detach 2P Wire at connector (P8503) on Main P.C.B..
Step 4 Detach 2P Wire at connector (P8502) on Main P.C.B..
Step 5 Detach 10P FFC at connector (P5001) on Main P.C.B..
Step 6 Detach 24P FFC at connector (P5002) on Main P.C.B..
Step 7 Lift up wire clampers.
Step 8 Release catch.
Step 9 Remove Main P.C.B..
