8.6. Disassembly of Front Panel
Unit
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.

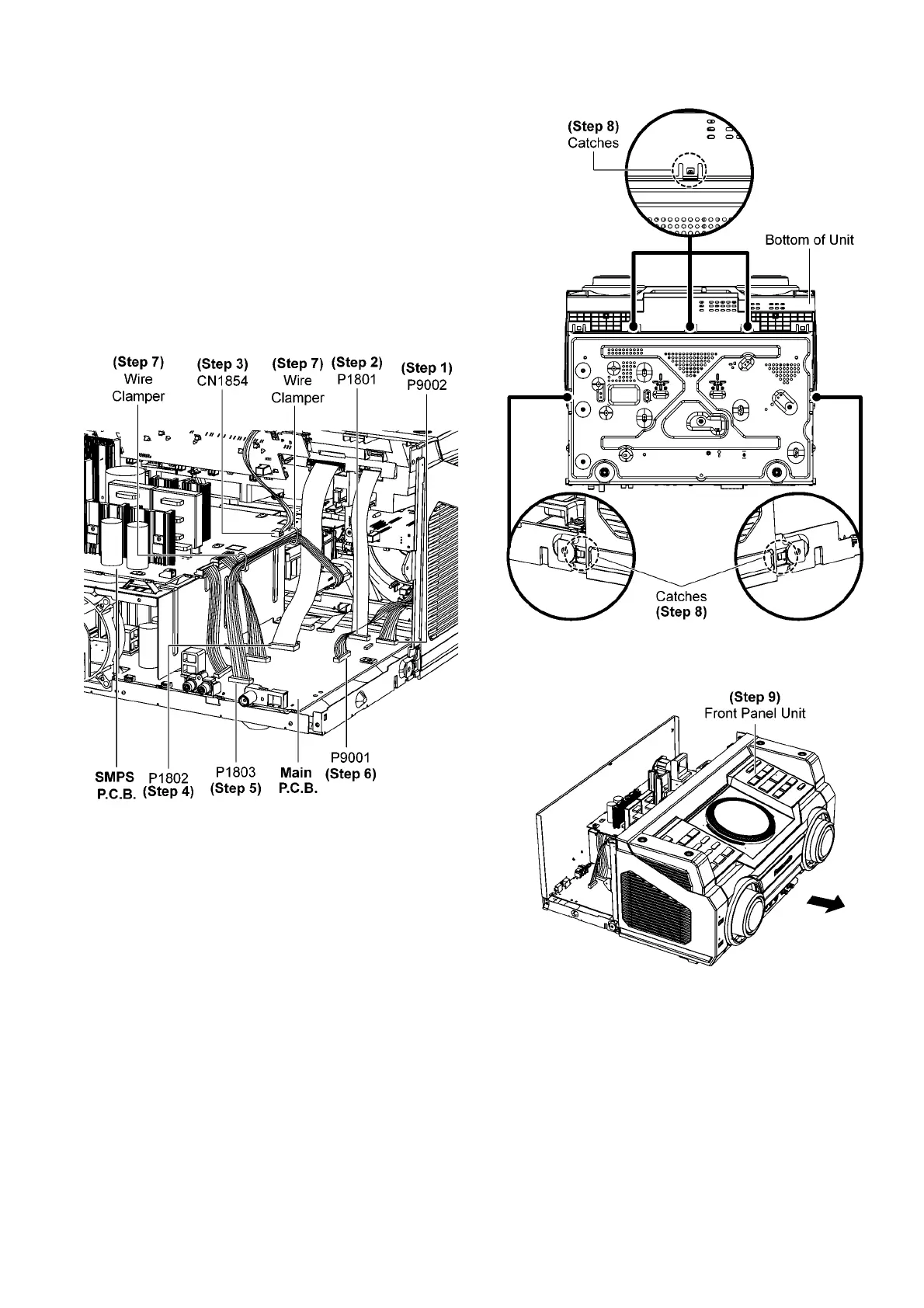

Step 1 Detach 7P Wire at connector (P9002) on Main P.C.B..
Step 2 Detach 14P FFC at connector (P1801) on Main P.C.B..
Step 3 Detach 3P Wire at connector (CN1854) on SMPS
P.C .B..
Step 4 Detach 30P FFC at connector (P1802) on Main P.C.B..
Step 5 Detach 9P Wire at connector (P1803) on Main P.C.B..
Step 6 Detach 6P Wire at connector (P9001) on Main P.C.B..
Step 7 Lift up Wire Clampers.
Step 8 Release tabs at bottom of the unit.
Step 9 Detach to remove Front Panel Unit
