Panasonic SA-MAX8000 - Disassembly of SMPS P.C.B; Disassembly of Inner Chassis Unit

30

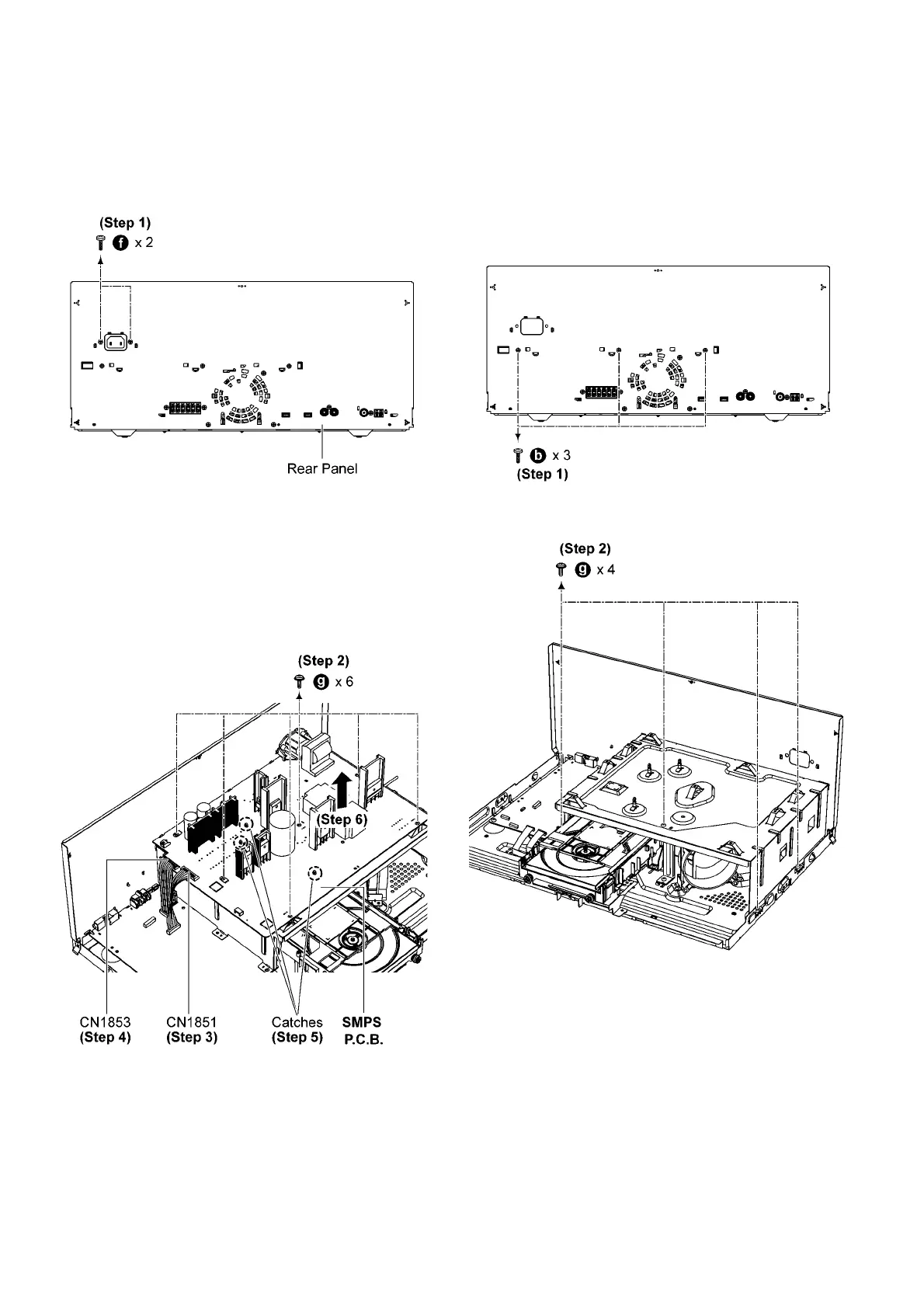

8.19. Disassembly of SMPS P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 2 screws.
Step 2 Remove 6 screws.
Step 3 Detach 13P Wire at connector (CN1851) on SMPS
P.C .B..
Step 4 Detach 10P Wire at connector (CN1853) on SMPS
P.C .B..
Step 5 Release catches.
Step 6 Remove SMPS P.C.B..
8.20. Disassembly of Inner Chassis
Unit
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of SMPS P.C.B.”.
Step 1 Remove 3 screws.
Step 2 Remove 4 screws.
