Panasonic SA-MAX8000 - Disassembly of Button Left P.C.B

28

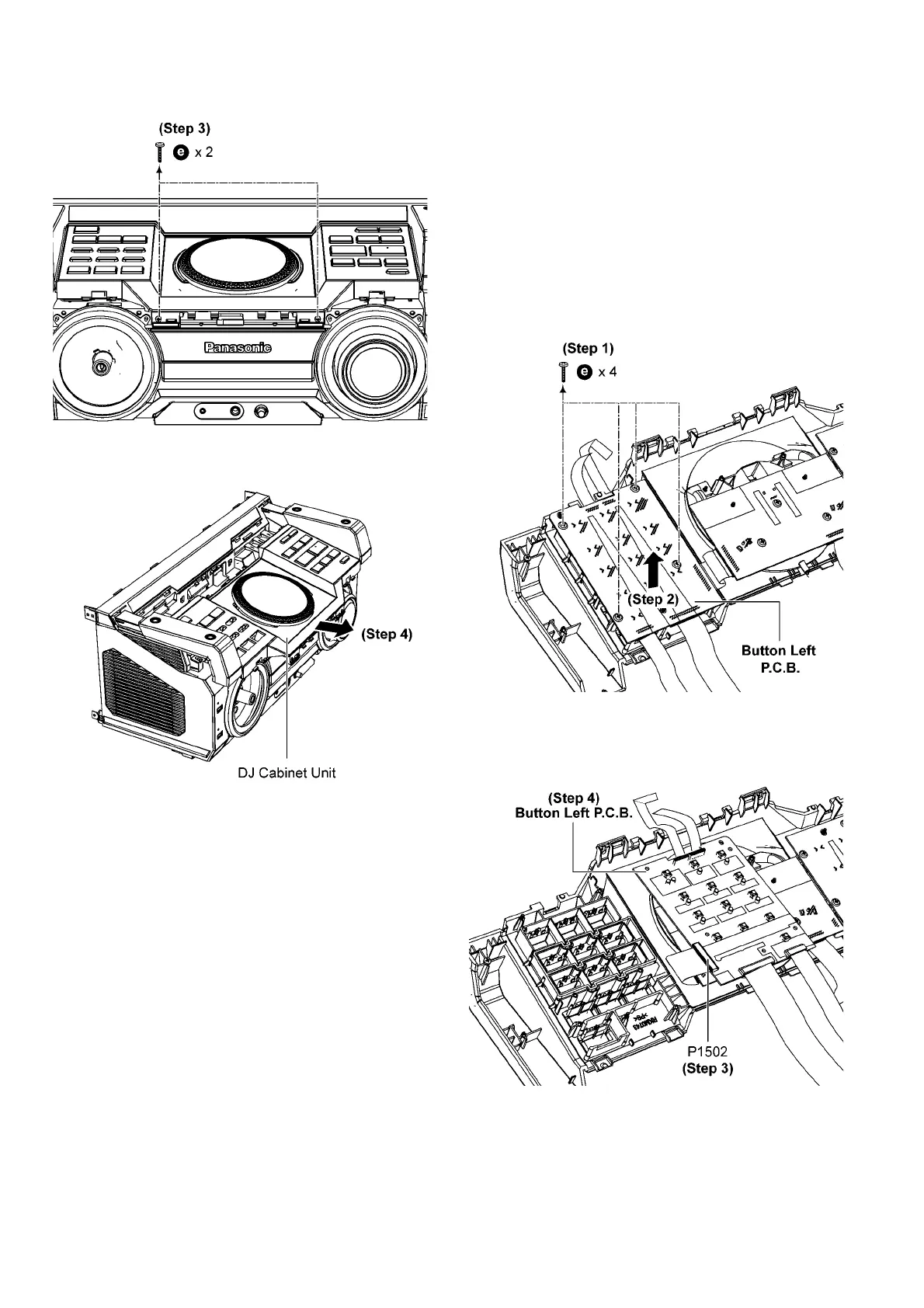

Step 3 Remove 2 screws.
Step 4 Remove DJ Cabinet Unit.
8.16. Disassembly of Button Left
P. C. B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of FL Display P.C.B.”.
• Refer to “Disassembly of Illumination Jog P.C.B.”.
• Refer to “Disassembly of BT&NFC P.C.B”.
• Refer to “Disassembly of DJ Cabinet Unit”.
Step 1 Remove 4 screws.
Step 2 Lift up Button Left P.C.B..
Step 3 Detach 22P FFC at connector (P1502) on Button Left
P.C .B..
Step 4 Remove Button Left P.C.B..
