8.17. Disassembly of Multi Control
P. C. B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of FL Display P.C.B.”.
• Refer to “Disassembly of Illumination Jog P.C.B.”.
• Refer to “Disassembly of BT&NFC P.C.B”.
• Refer to “Disassembly of DJ Cabinet Unit”.

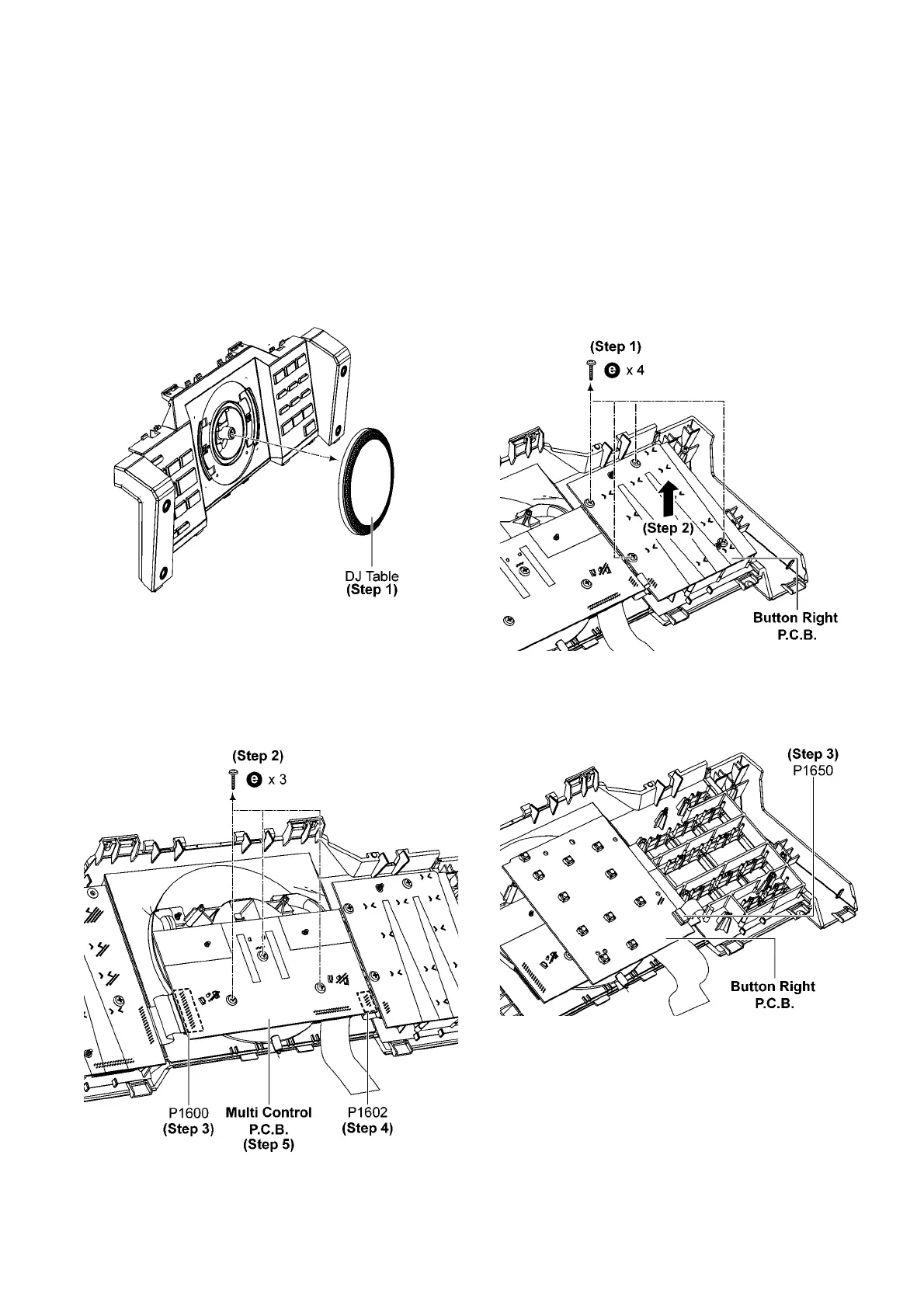

Step 1 Remove DJ Table.
Step 2 Remove 3 screws.
Step 3 Detach 22P FFC at connector (P1600) on Multi Control
P.C .B..
Step 4 Detach 5P FFC at connector (P1602) on Multi Control
P.C .B..
Step 5 Remove Multi Control P.C.B..
8.18. Disassembly of Button Right
P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of FL Display P.C.B.”.
• Refer to “Disassembly of Illumination Jog P.C.B.”.
• Refer to “Disassembly of BT&NFC P.C.B”.
• Refer to “Disassembly of DJ Cabinet Unit”.
Step 1 Remove 4 screws.
Step 2 Lift up Button Right P.C.B..
Step 3 Detach 5P FFC at connector (P1650) on Button Right
P. C .B ..
Step 4 Remove Button Right P.C.B..
