Panasonic SA-MAX8000 - Disassembly of Illumination Right P.C.B; Disassembly of USB P.C.B

26

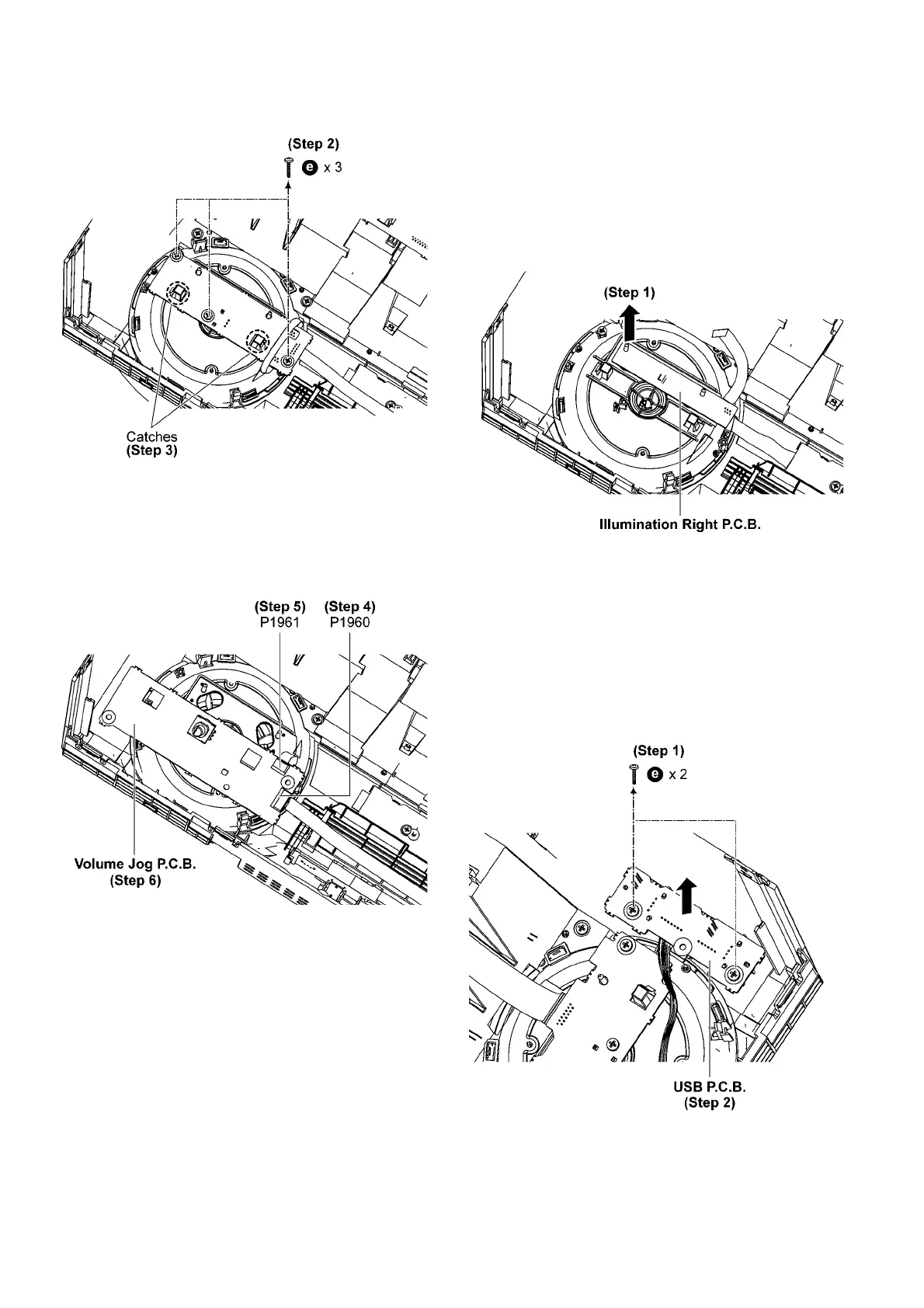

Step 2 Remove 3 screws.
Step 3 Release catches.
Step 4 Detach 10P FFC at connector (P1960) on Volume Jog
P.C .B..
Step 5 Detach 6P FFC at connector (P1961) on Volume Jog
P.C .B..
Step 6 Remove Volume Jog P.C.B..
8.12. Disassembly of Illumination
Right P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of Volume Jog P.C.B.”.
Step 1 Lift up to remove Illumination Right P.C.B.
8.13. Disassembly of USB P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 2 screws.
Step 2 Lift up to remove USB P.C.B..
