83

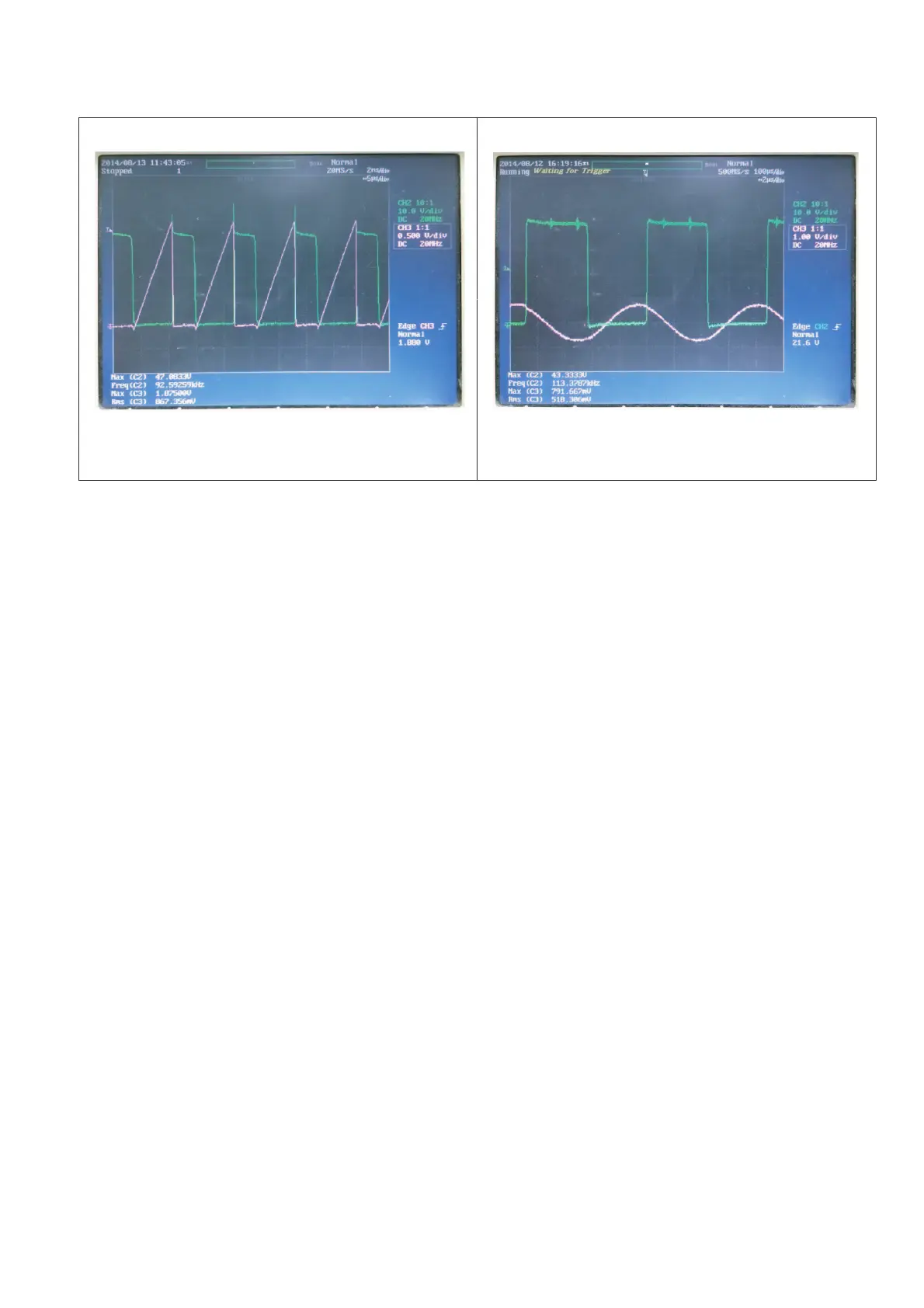

14.2. Waveform Chart
WF No. Q1103 and Q1204
WF No. Q1501 and Q1502
Drain-Source.
Measured at Ch2.
Value = Ch2 x10
D-S = 470V
Drain-Source.
Measured at Ch2.
Value = Ch2 x10
D-S = 433V
