Panasonic SA-MAX8000 - Disassembly of FL Display P.C.B; Disassembly of Illumination Jog P.C.B

24

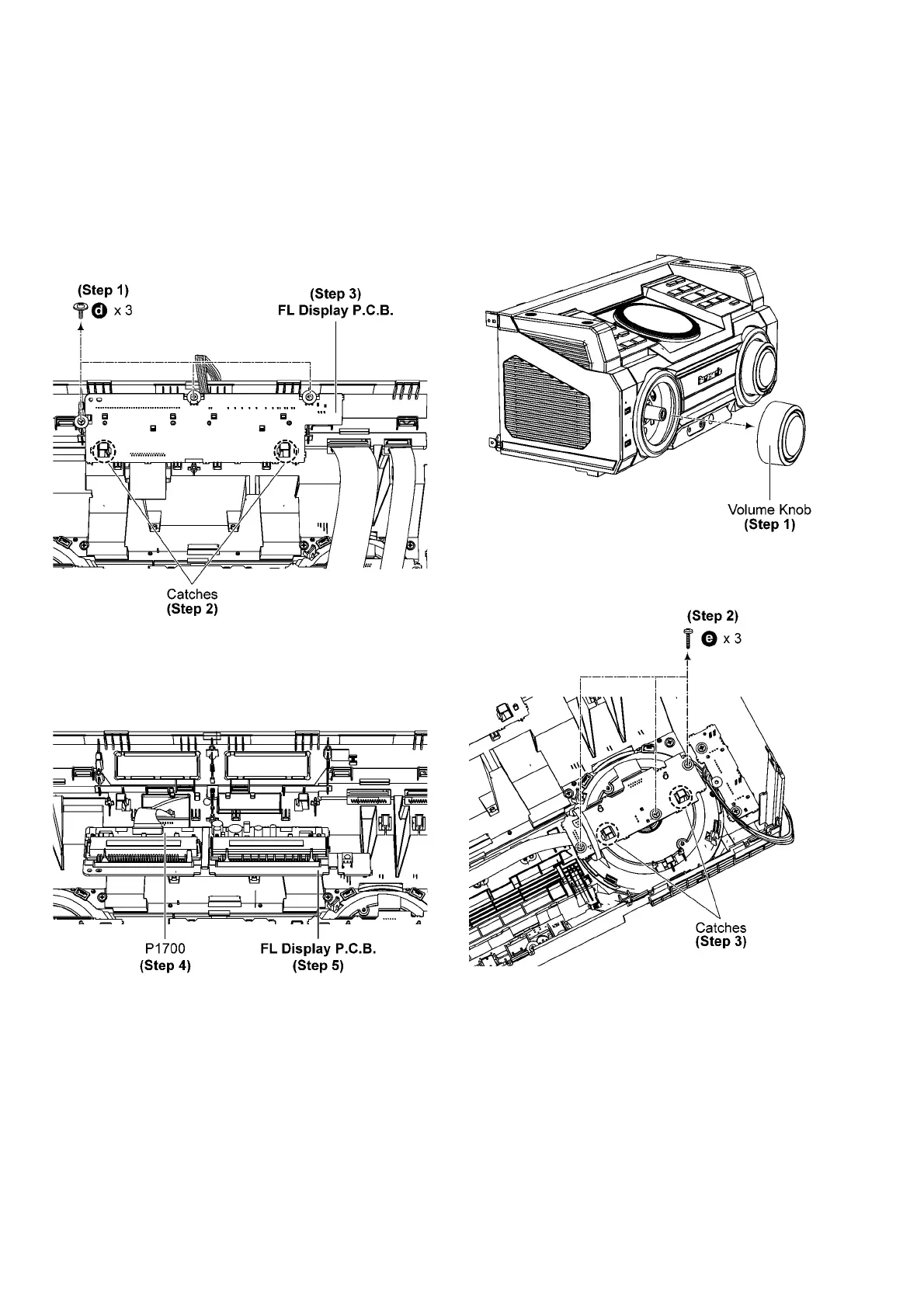

8.7. Disassembly of FL Display
P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 3 screws.
Step 2 Release catches.
Step 3 Lift up FL Display P.C.B..
Step 4 Detach 13P FFC at connector (P1700) on FL Display
P.C .B..
Step 5 Remove FL Display P.C.B..
8.8. Disassembly of Illumination
Jog P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove Volume Knob.
Step 2 Remove 3 screws.
Step 3 Release catches.
