Panasonic SA-MAX8000 - Disassembly of Illumination Left P.C.B; Disassembly of BT&NFC P.C.B; Disassembly of Volume Jog P.C.B

25

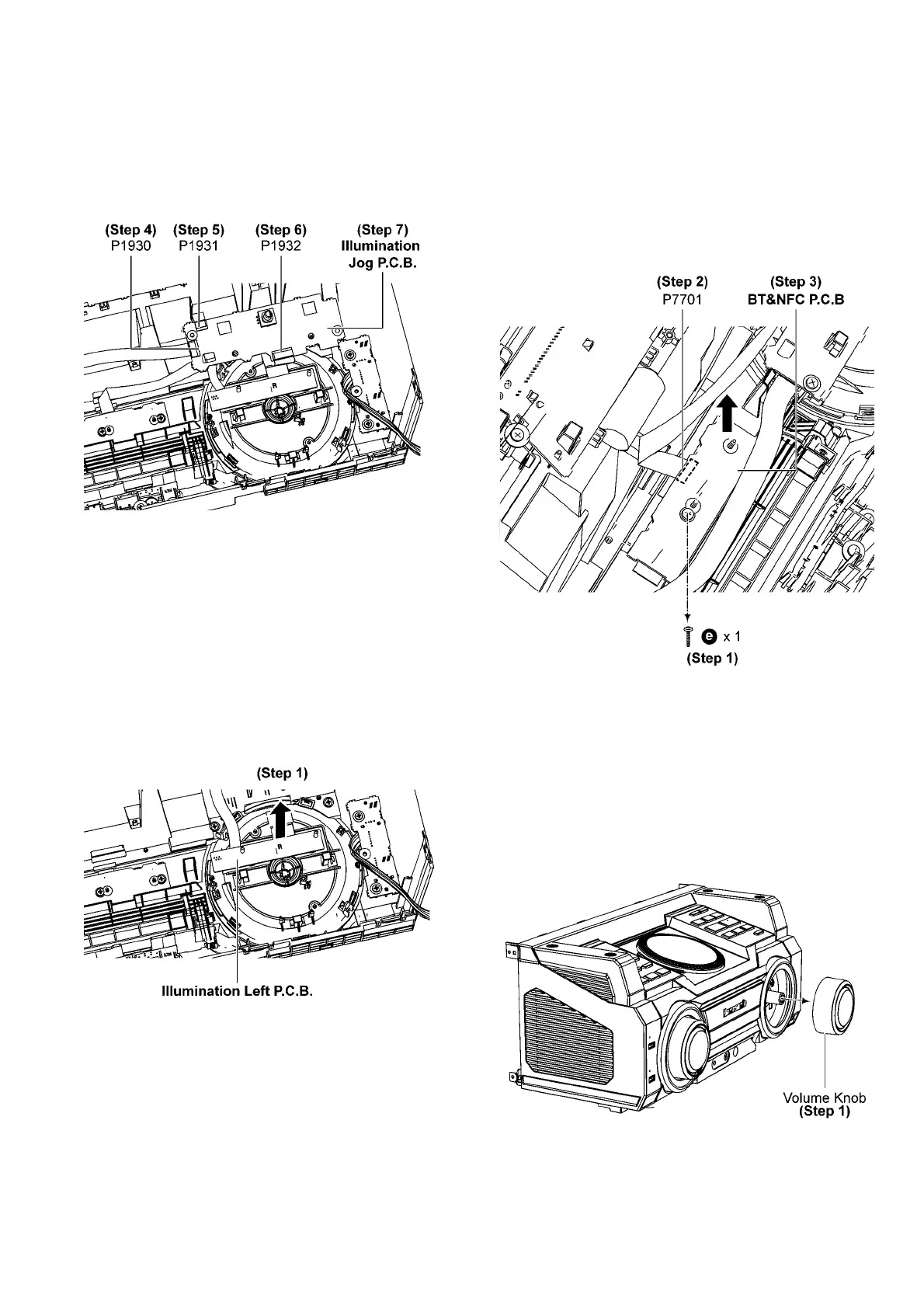

Step 4 Detach 10P FFC at connector (P1930) on Illumination
Jog P.C.B..
Step 5 Detach 6P FFC at connector (P1931) on Illumination
Jog P.C.B..
Step 6 Detach 13P FFC at connector (P1932) on Illumination
Jog P.C.B..
Step 7 Remove Illumination Jog P.C.B..
8.9. Disassembly of Illumination
Left P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of Illumination Jog P.C.B.”.
Step 1 Lift up to remove Illumination Left P.C.B..
8.10. Disassembly of BT&NFC P.C.B
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove screw.
Step 2 Detach 12P FFC at connector (P7701) on BT&NFC
P. C .B ..
Step 3 Lift up to remove BT&NFC P.C.B.
8.11. Disassembly of Volume Jog
P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Fan Unit”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove Volume Knob.
