9.3. Disassembly of Top Cabinet
Assembly

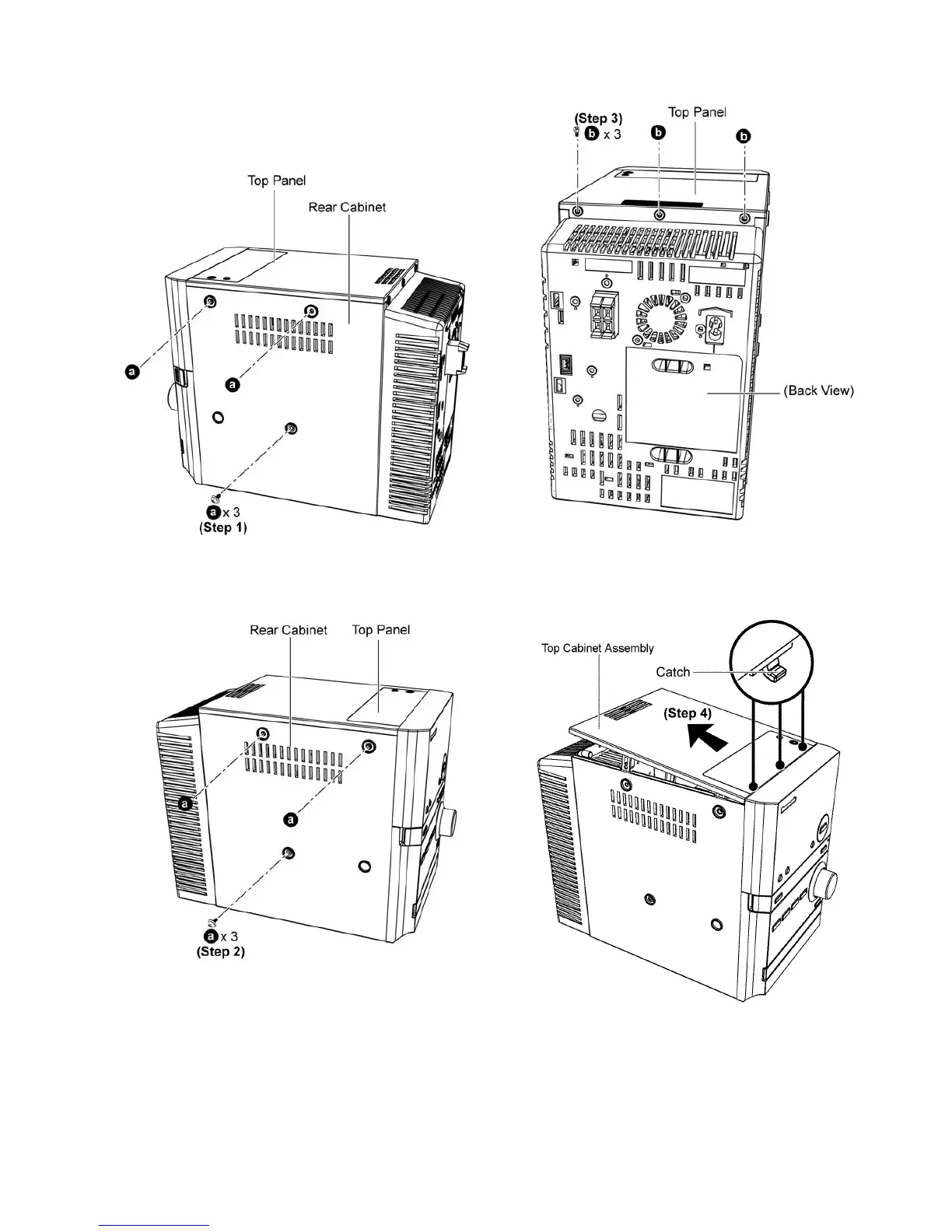

Step 1 : Remove 3 screws.
Step 2 : Remove 3 screws.
Step 3 : Remove 3 screws.
Step 4 : Lift up the Top Cabinet Assembly and remove it.
Caution : During assembling, ensure the Top Cabinet
Assembly is seated properly.
