Panasonic SA-PM24EB - 9.7. Disassembly of Panel P.C.B.; Disassembly of Panel P.C.B.

31

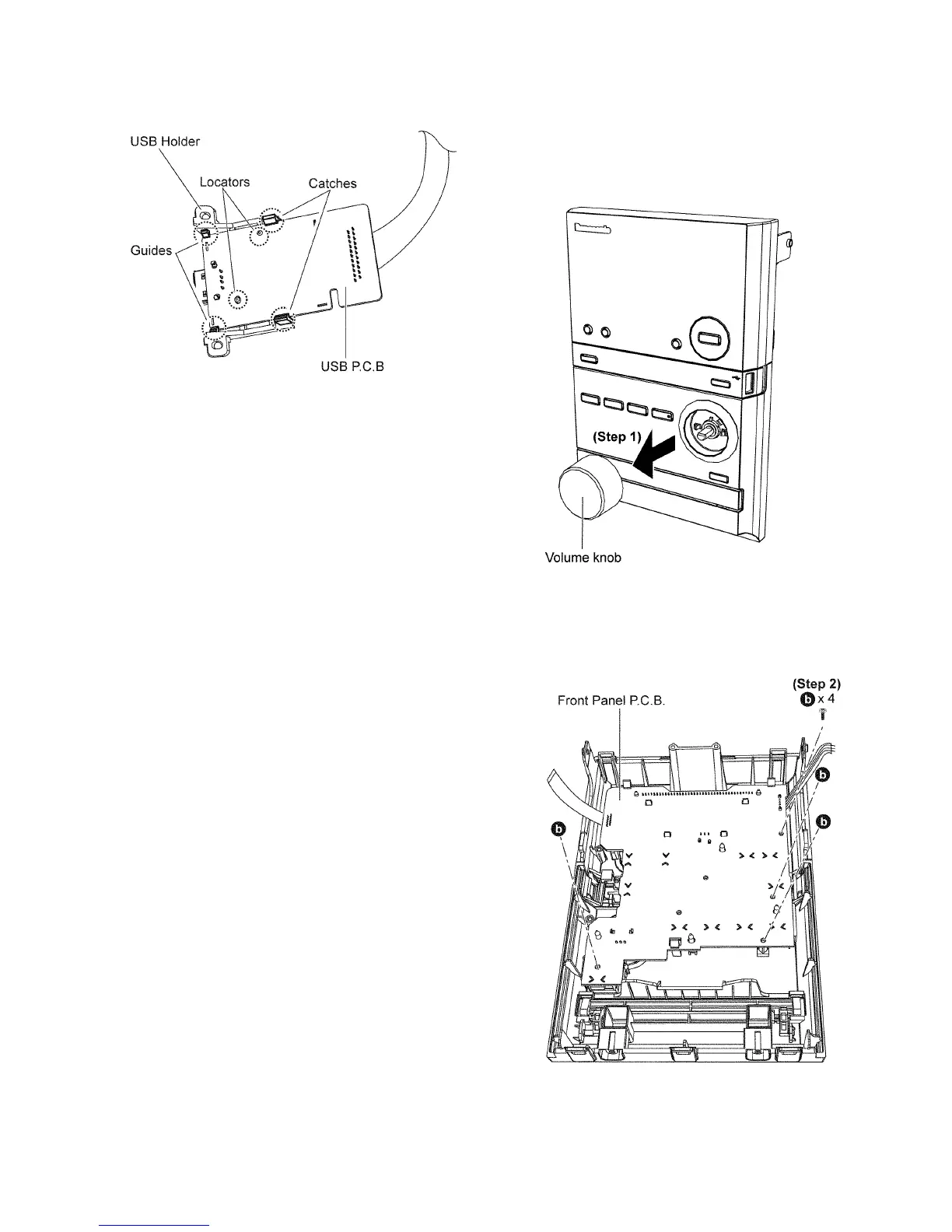

Caution : During assembling, ensure that USB P.C.B. is
properly catched and seated on the guides/locators of the
USB Holder.
9.7. Disassembly of Panel P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly”.
• Refer to “Disassembly of Front Panel Assembly”.
• Refer to (Step 1) of Item 9.6.
Step 1 : Remove Volume knob.
Step 2 : Remove 4 screws.
