Panasonic SA-PM24EB - 9.13. Replacement of Power Amp IC (IC5101); Replacement of Power Amp IC (IC5101)

39

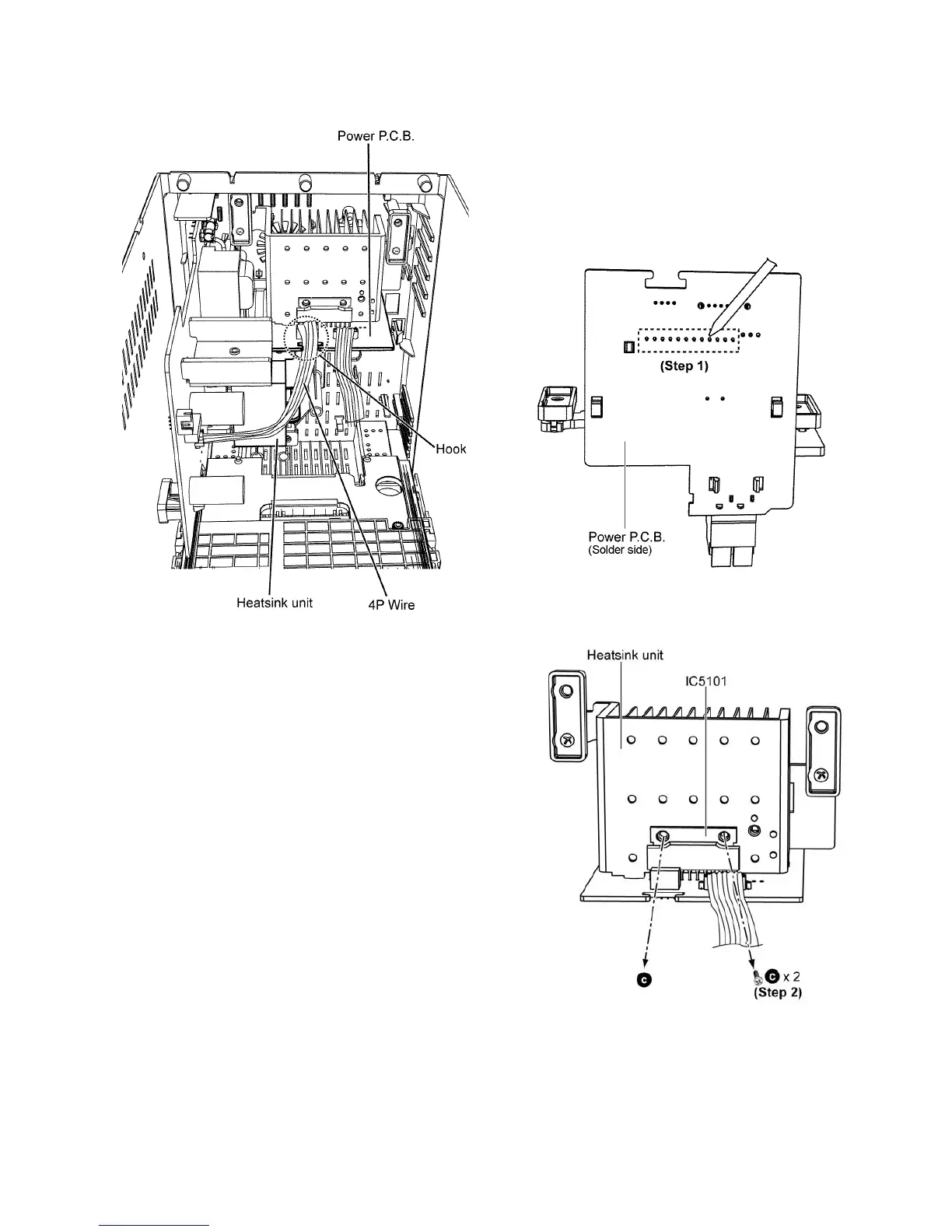

Caution 2 : Ensure the 4P wire from Transformer P.C.B. is
properly dressed into the hook of Power P.C.B. and pre-
vent touching the heatsink unit.
9.13. Replacement of Power Amp IC
(IC5101)
• Refer to “Disassembly of Power P.C.B.”.
Caution : Handle the heatsink unit and P.C.B. with caution
due to its high temperature after prolonged use. Touching
it may lead to injuries.
Step 1 : Desolder pins of Power Amp IC (IC5101) .
Step 2 : Remove 2 screws.
