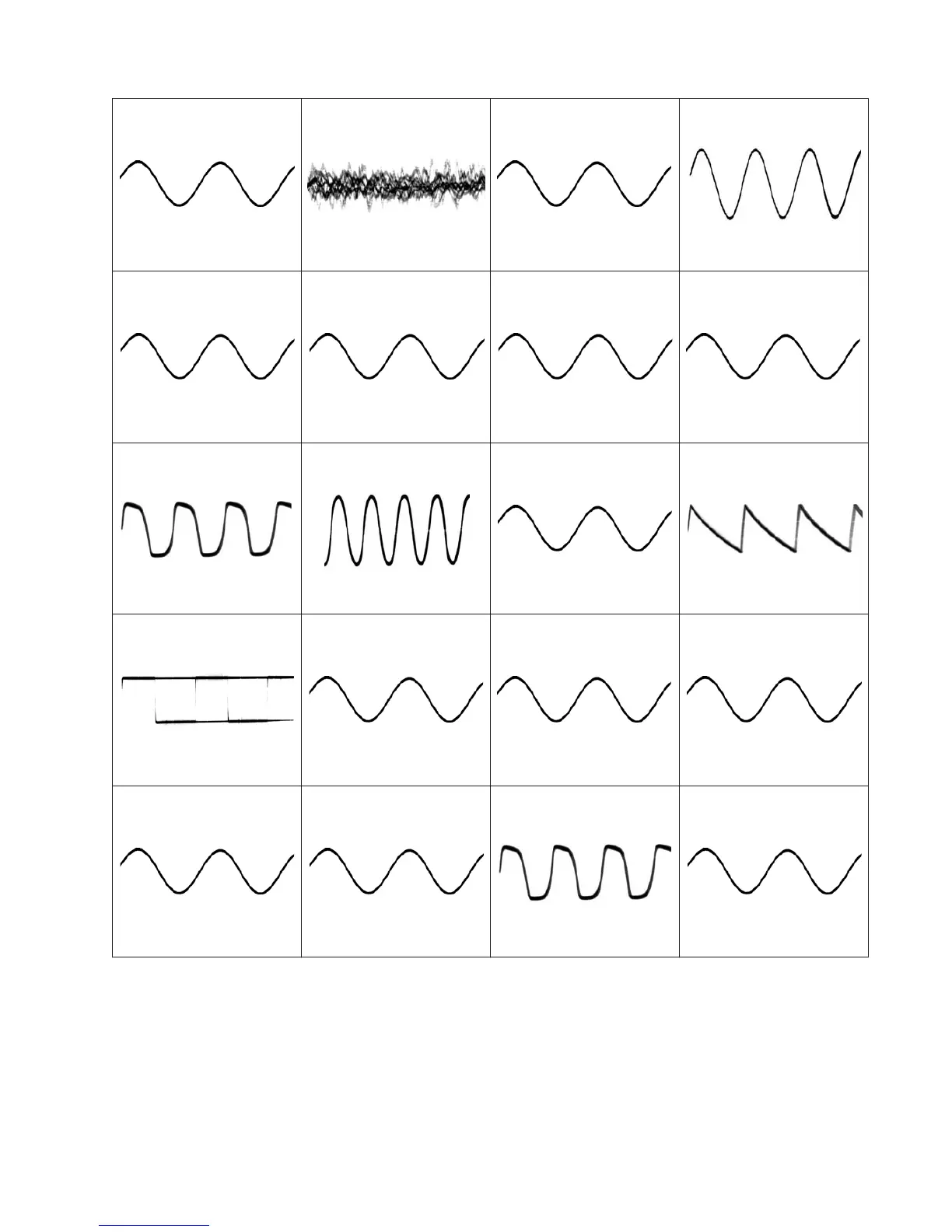

12.8. Waveform Chart
WF No. IC1-9,11 (PLAY)
0.11Vp-p(50nsec/div)
WF No. IC1-12,13 (PLAY)
0.6Vp-p(50usec/div)
WF No. IC1-19 (PLAY)
0.56Vp-p(5usec/div)
WF No. IC1-20 (PLAY)
0.68Vp-p(5usec/div)
WF No. IC301-9,10 (PLAY)
0.04Vp-p(100usec/div)
WF No. IC301-11,12 (PLAY)
0.36Vp-p(200usec/div)
WF No. IC301-21,22 (PLAY)
0.1Vp-p(200usec/div)
WF No. IC302-13,14 (PLAY)
2.4Vp-p(100nsec/div)
WF No. IC800-12 (PLAY)
4Vp-p(50nsec/div)
WF No. IC800-13 (PLAY)
2.5Vp-p(50nsec/div)
WF No. IC800-15,16 (PLAY)
2.1Vp-p(10usec/div)
WF No. IC900-5 (PLAY)
1.5Vp-p(1usec/div)
WF No. IC900-8 (PLAY)
3Vp-p(2usec/div)
WF No. IC1501-2,4 (PLAY)
0.28Vp-p(200usec/div)
WF No. IC1501-6,8 (PLAY)
0.76Vp-p(200usec/div)
WF No. IC1501-10,12 (PLAY)
0.24Vp-p(200usec/div)
WF No. IC7001-23,24 (PLAY)
0.52Vp-p(1usec/div)
WF No. IC7001-81 (PLAY)
1.9Vp-p(20nsec/div)
WF No. IC7001-56,59 (PLAY)
2.4Vp-p(100nsec/div)
WF No. IC7001-80 (PLAY)
4.8Vp-p(20nsec/div)
