Panasonic SA-PM24EB - Disassembly of Transformer P.C.B.

41
9.14. Disassembly of Transformer
P. C. B.
• Refer to “Disassembly of Top Cabinet Assembly”.
• Refer to “Disassembly of Front Panel Assembly”.

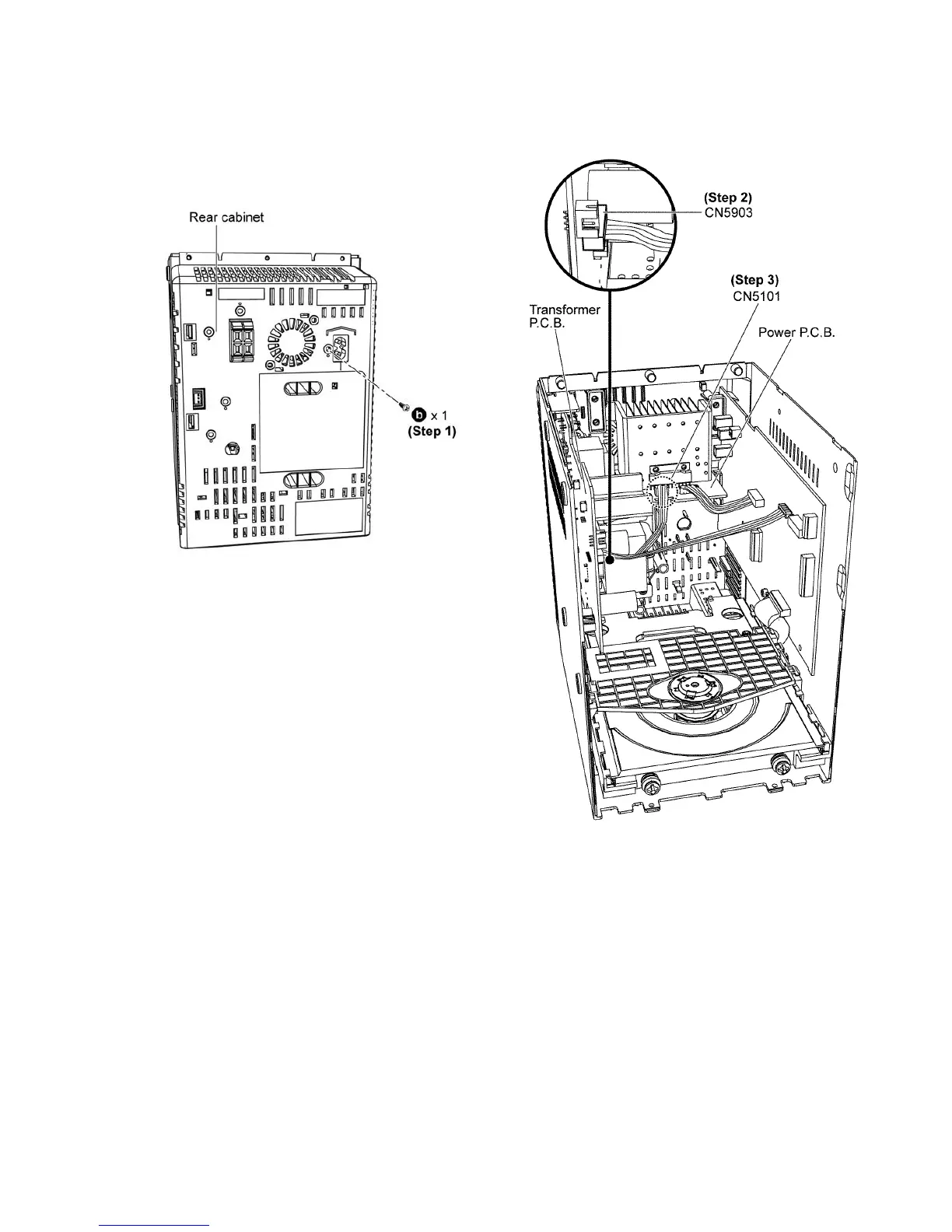

Step 1 : Remove 1 screw.
Step 2 : Detach 7P Cable at the connector (CN5903) on Trans-
former P.C.B.
Step 3 : Detach 4P Cable at the connector (CN5101) on Power
P. C .B .
