Panasonic SA-PM24EB - Disassembly of Headphone P.C.B

28

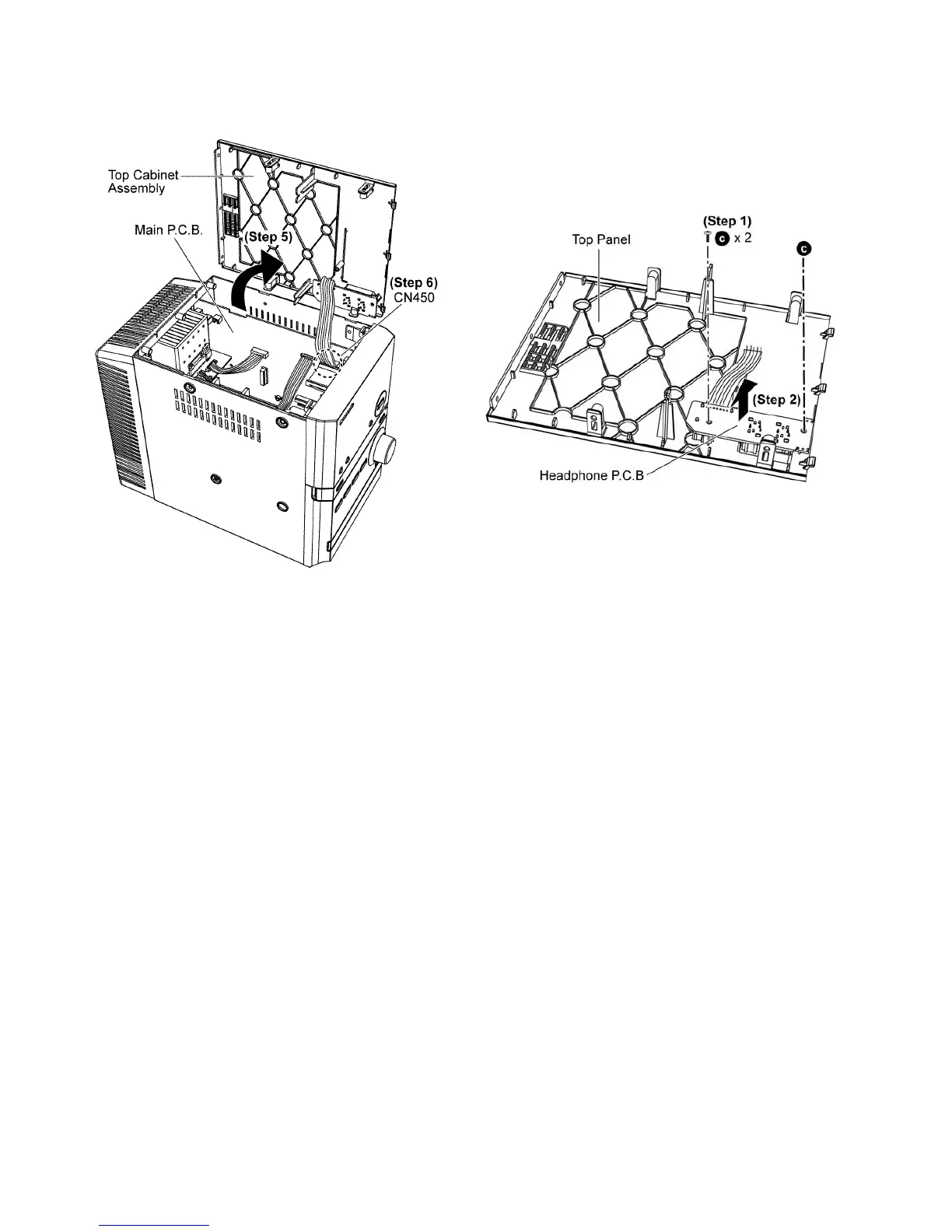

Step 5 : Upset the Top Cabinet Assembly as arrow shown.
Step 6 : Detach 7P Cable at the connector (CN450) on Main
P. C.B .
9.4. Disassembly of Headphone
P. C. B.
• Refer to “Disassembly of Top Cabinet Assembly”.
Step 1 : Remove 2 screws.
Step 2 : Remove the Headphone P.C.B.
