9.9. Disassembly of Centre Orna-
ment
• Refer to “Disassembly of Top Cabinet Assembly”.
• Refer to “Disassembly of Front Panel Assembly”.
• Refer to (Step 1) of Item 9.6.
• Refer to “Disassembly of Panel P.C.B.”.
• Refer to “Disassembly of FL Window”.

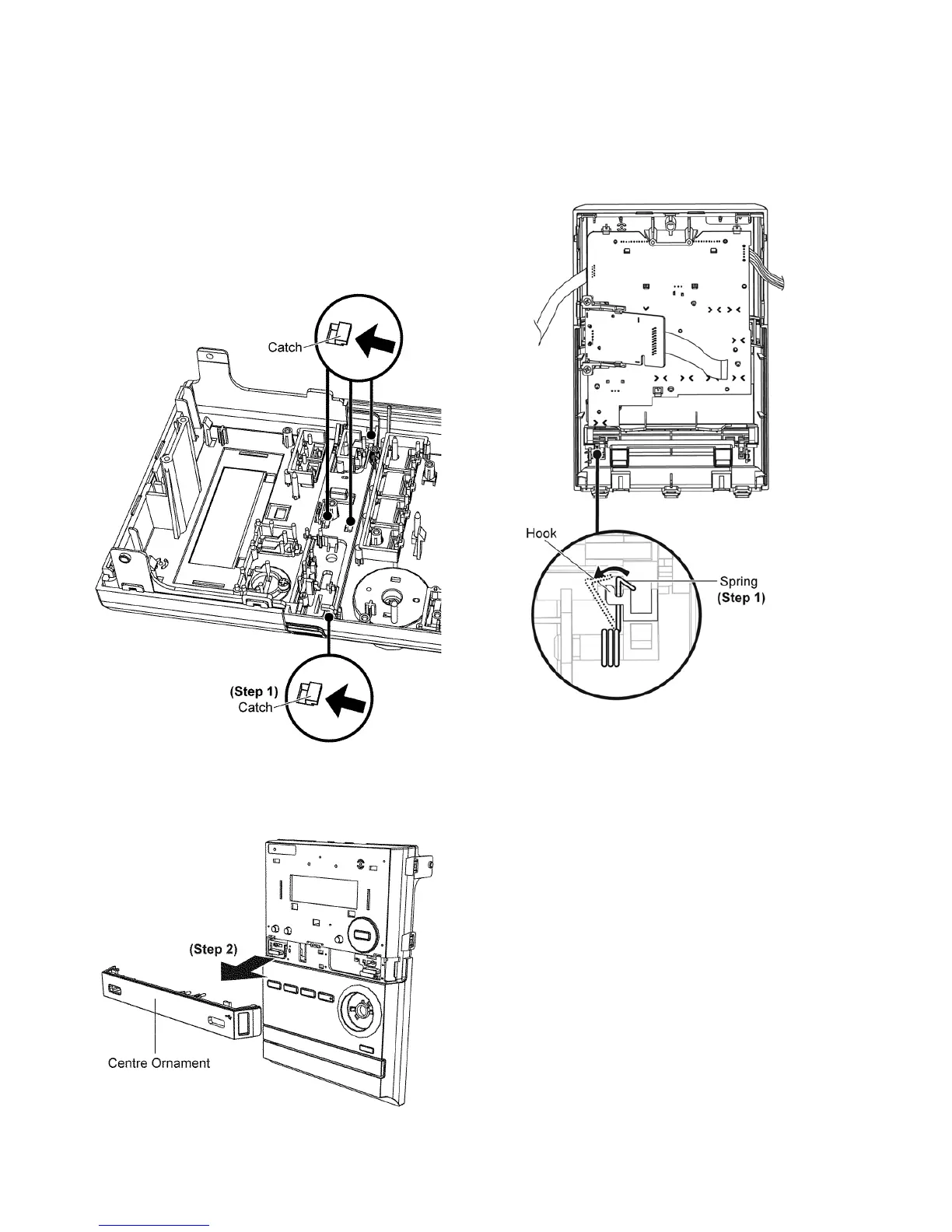

Step 1 : Release all catches as arrows shown.
Caution : During assembling, ensure that Centre Ornament
is properly catched to the Front Panel Assembly.
Step 2 : Remove the Centre Ornament as shown.
9.10. Disassembly of CD Lid
• Refer to “Disassembly of Front Panel Assembly”.
Step 1 : Lift the spring out of the hook as arrow shown.
Caution : Keep the spring in a safe place for assembling it
back.
To Next Page
