9.5. Disassembly of Front Panel
Assembly
• Refer to “Disassembly of Top Cabinet Assembly”.

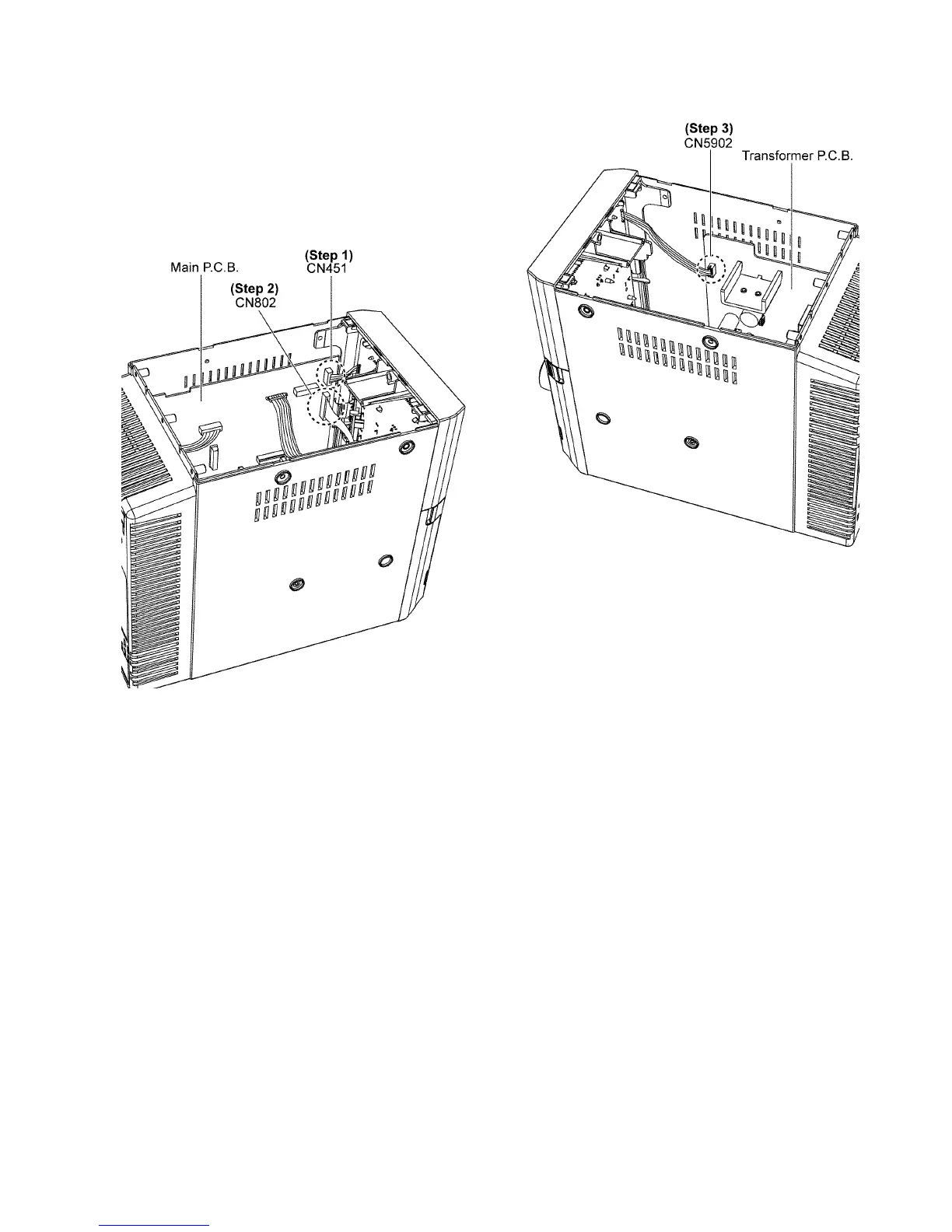

Step 1 : Detach 10P FFC at the connector (CN451) on Main
P. C. B .
Step 2 : Detach 22P FFC at the connector (CN802) on Main
P. C. B .
Step 3 : Detach 4P Cable at the connector (CN5902) on Trans-
former P.C.B.
