11.3. Checking and Repairing of
Transformer P.C.B.
Step 1 : Remove the Top Cabinet Assembly.
Step 2 : Remove the Front Panel Assembly.
Step 3 : Remove the USB Assembly.
Step 4 : Remove the Panel P.C.B.
Step 5 : Remove the Main P.C.B.
Step 6 : Remove the Power P.C.B.
Step 7 : Remove the Transformer P.C.B.
Step 8 : Remove the CD Mechanism Unit (DLS6C).
Step 9 : Place a support block.

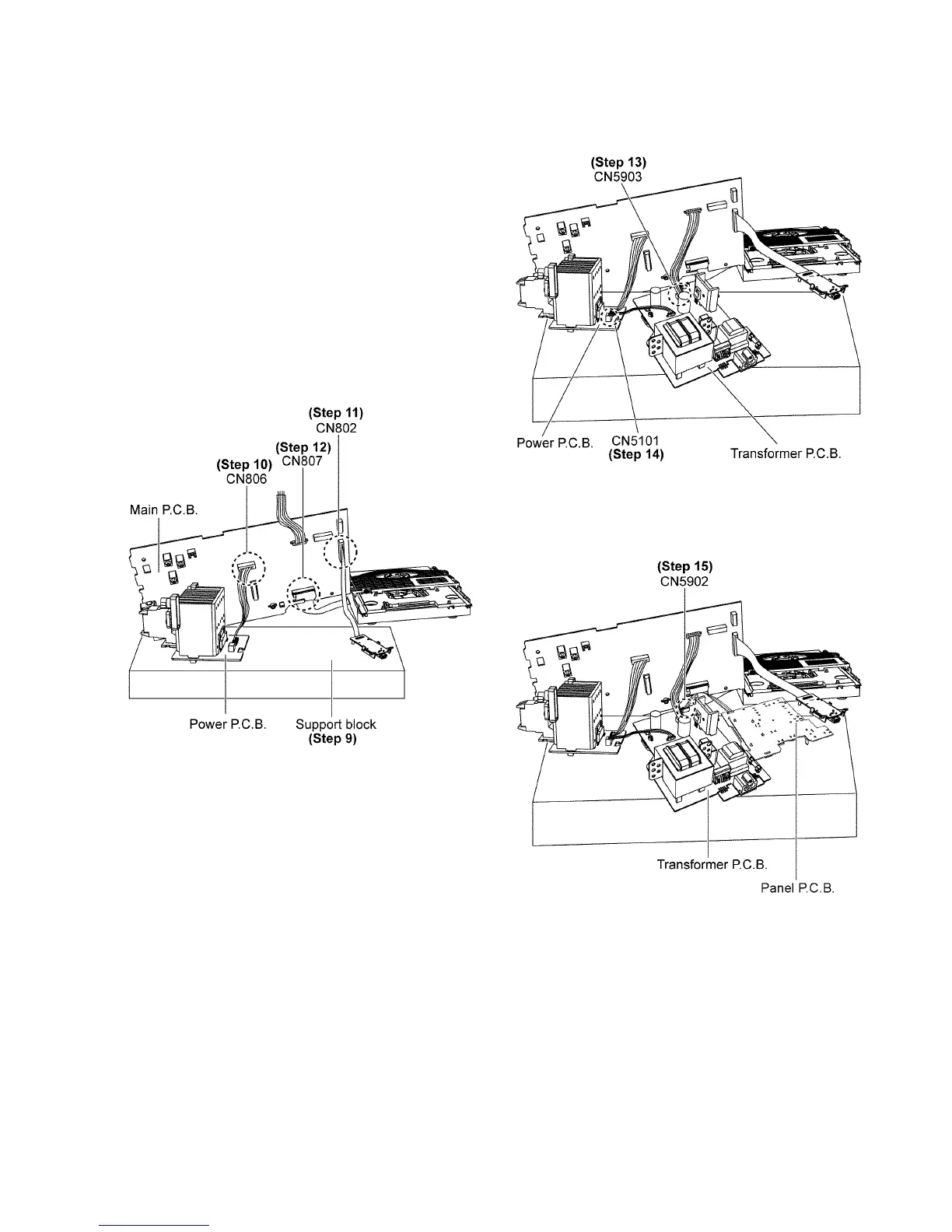

Step 10 : Connect 6P Cable at the connector (CN806) on Main
P. C. B .
Step 11 : Connect 22P FFC at the connector (CN802) on Main
P. C. B .
Step 12 : Connect 22P FFC at the connector (CN807) on Main
P. C. B .
Step 13 : Connect 7P Cable at the connector (CN5903) on
Transformer P.C.B.
Step 14 : Connect 4P Cable at the connector (CN5101) on
Power P.C.B.
Step 15 : Connect 4P Cable at the connector (CN5902) on
Transformer P.C.B.
