9.11. Disassembly of Main P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly”.
• Refer to “Disassembly of Front Panel Assembly”.

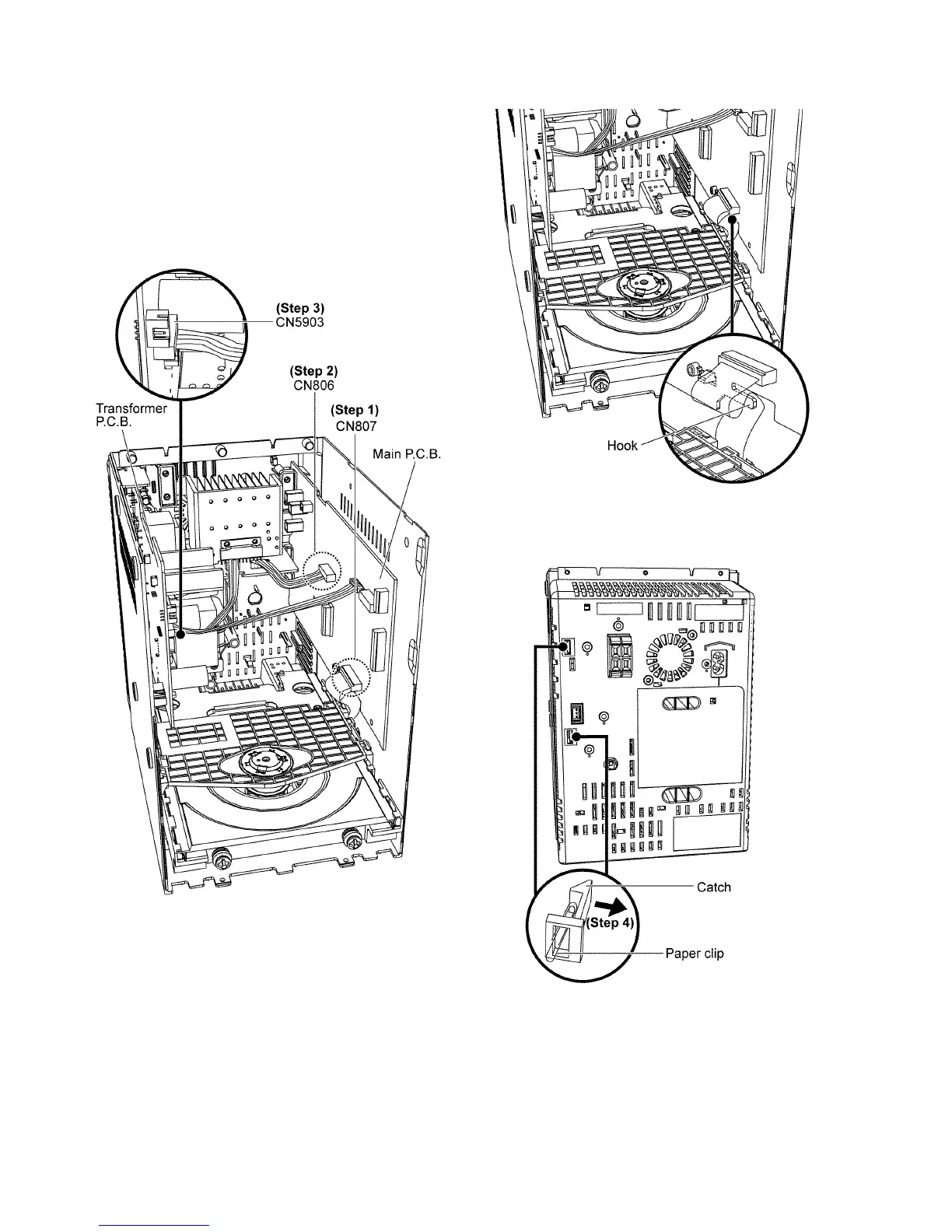

Step 1 : Detach 22P FFC at the connector (CN807) on Main
P. C.B .
Step 2 : Detach 6P Cable at the connector (CN806) on Main
P. C.B .
Step 3 : Detach 7P Cable at the connector (CN5903) on Trans-
former P.C.B.
Caution : During assembling, ensure the 22P FFC properly
dressed into the hook of Main P.C.B..
Step 4 : Use a paper clip to release both catches.
To Next Page
