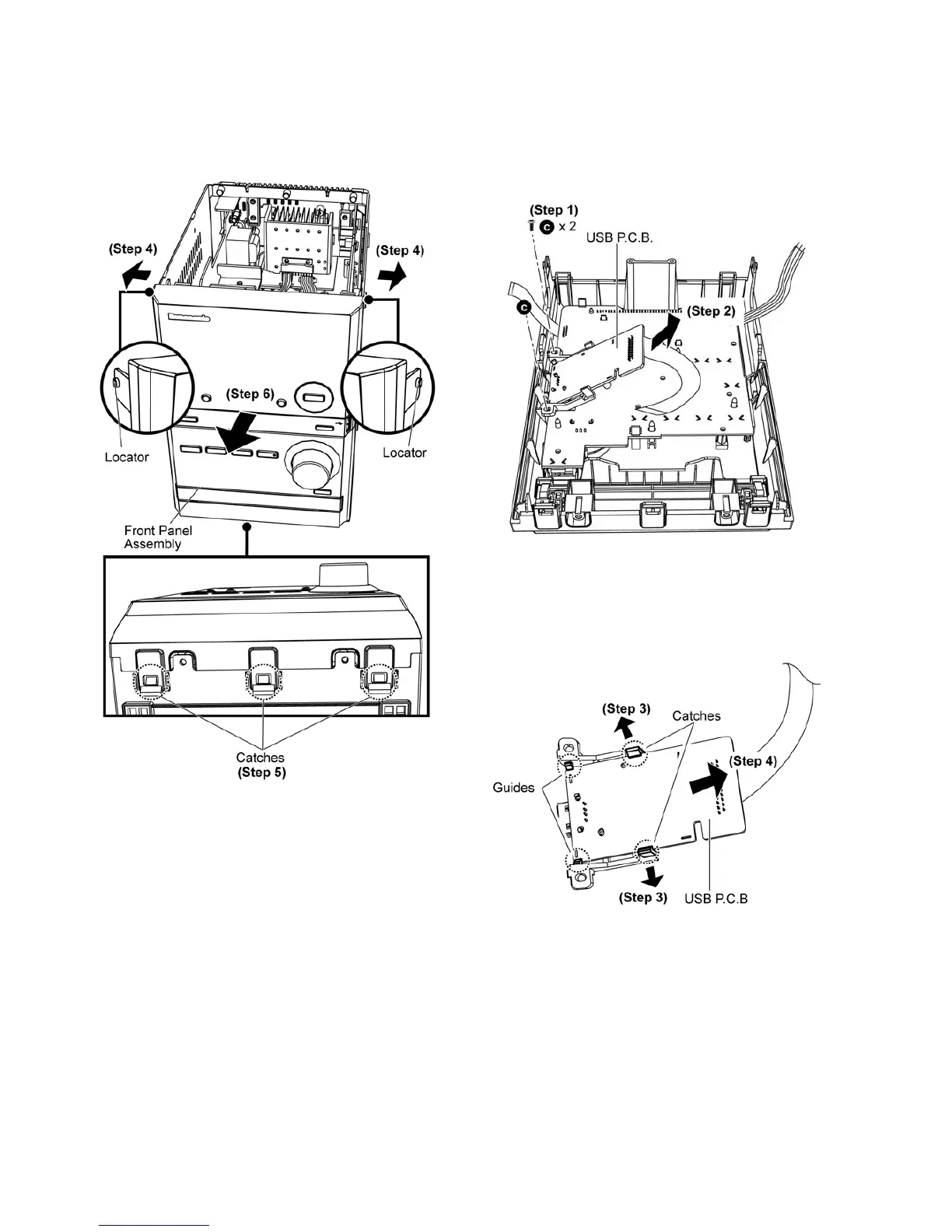

Step 4 : Release both locators.
Step 5 : Release 3 catches from the bottom.
Step 6 : Detach the Front Panel Assembly.
Caution : Do not attempt to exert strong force when
detaching the Front Panel Assembly.
9.6. Disassembly of USB P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly”.
• Refer to “Disassembly of Front Panel Assembly”.
Step 1 : Remove 2 screws.
Step 2 : Remove USB assembly.
Step 3 : Release both catches as arrows shown.
Step 4 : Detach the USB P.C.B. as arrow shown to release
from both guides.
