33

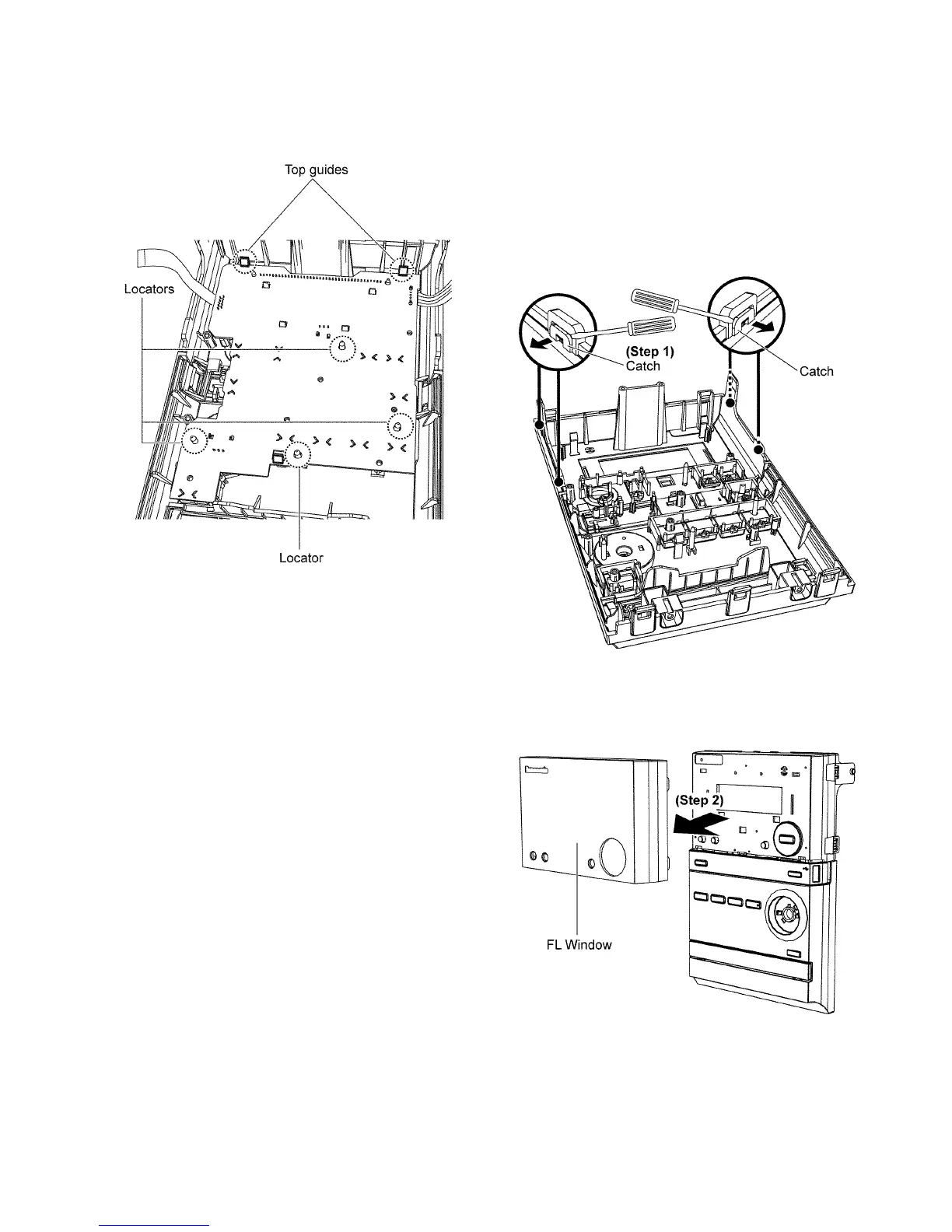

Caution 1 : During assembling, ensure that Panel P.C.B. is
slot under the top guides. A “click” sound will be heard
when fully catched.
Caution 2 : During assembling, ensure that Panel P.C.B.
seated properly on the 4 locators.
9.8. Disassembly of FL Window
• Refer to “Disassembly of Top Cabinet Assembly”.
• Refer to “Disassembly of Front Panel Assembly”.
• Refer to (Step 1) of Item 9.6.
• Refer to “Disassembly of Panel P.C.B.”.
Step 1 : Release all catches by pushing the edge of the
catches as arrows shown.
Caution : Do not apply strong force during the release of
catches to avoid damage to the Front Panel Assembly & FL
Window.
Step 2 : Remove the FL Window as shown.
To Next Page
