11.5. Checking and Repairing of
Power P.C.B.
• Refer to (Step 1) - (Step 17) of item 11.3

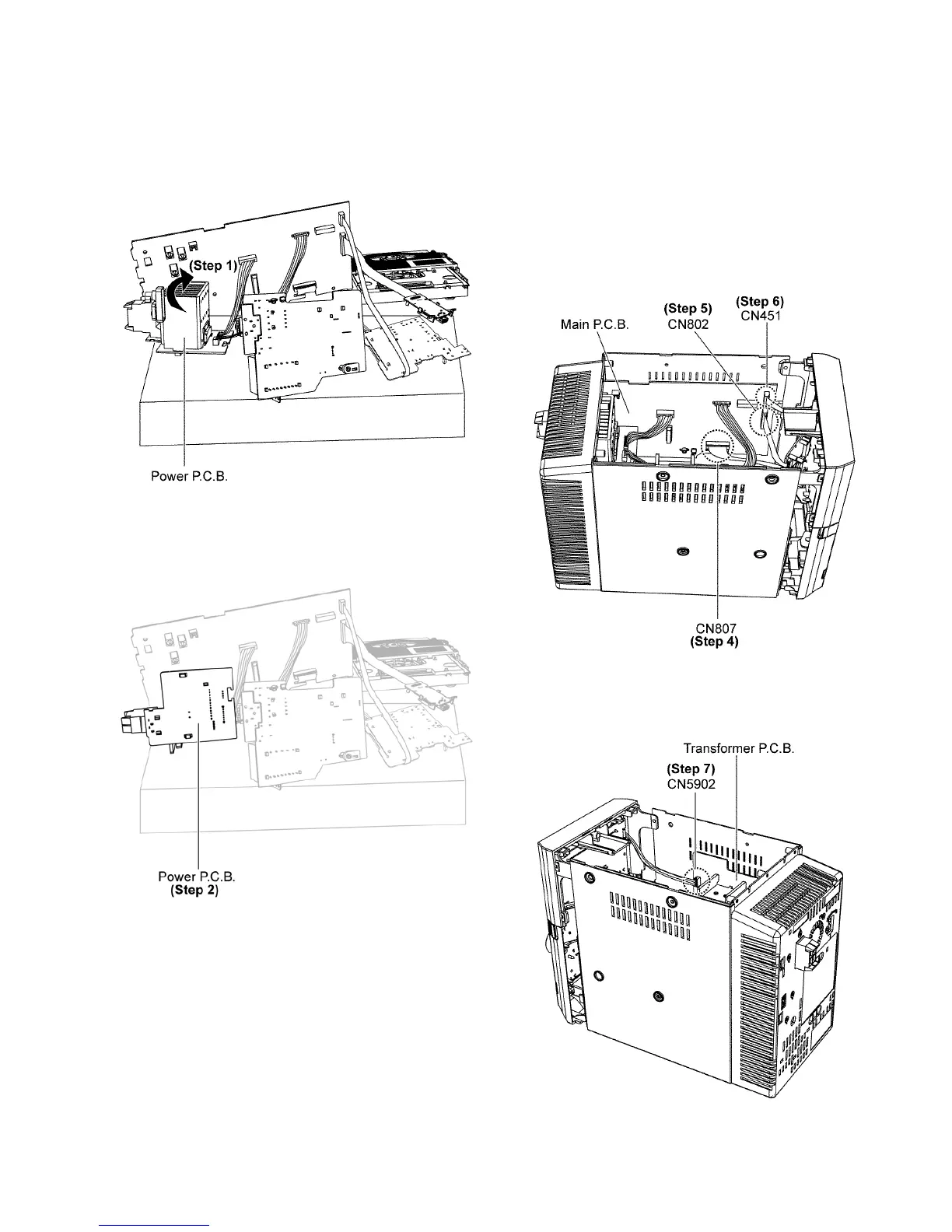

Step 1 : Flip the Power P.C.B. as shown.
Step 2 : Check and repair Power P.C.B. according to the dia-
gram shown.
11.6. Checking and Repairing of CD
Servo P.C.B.
Step 1 : Remove the Top Cabinet Assembly.
Step 2 : Remove the Front Panel Assembly.
Step 3 : Remove the CD Mechanism Unit (DLS6C).
Step 4 : Connect 22P FFC at the connector (CN807) on Main
P. C .B .
Step 5 : Connect 22P FFC at the connector (CN802) on Main
P. C .B .
Step 6 : Connect 10P FFC at the connector (CN451) on Main
P. C .B .
Step 7 : Connect 4P Cable at the connector (CN5902) on
Transformer P.C.B.
