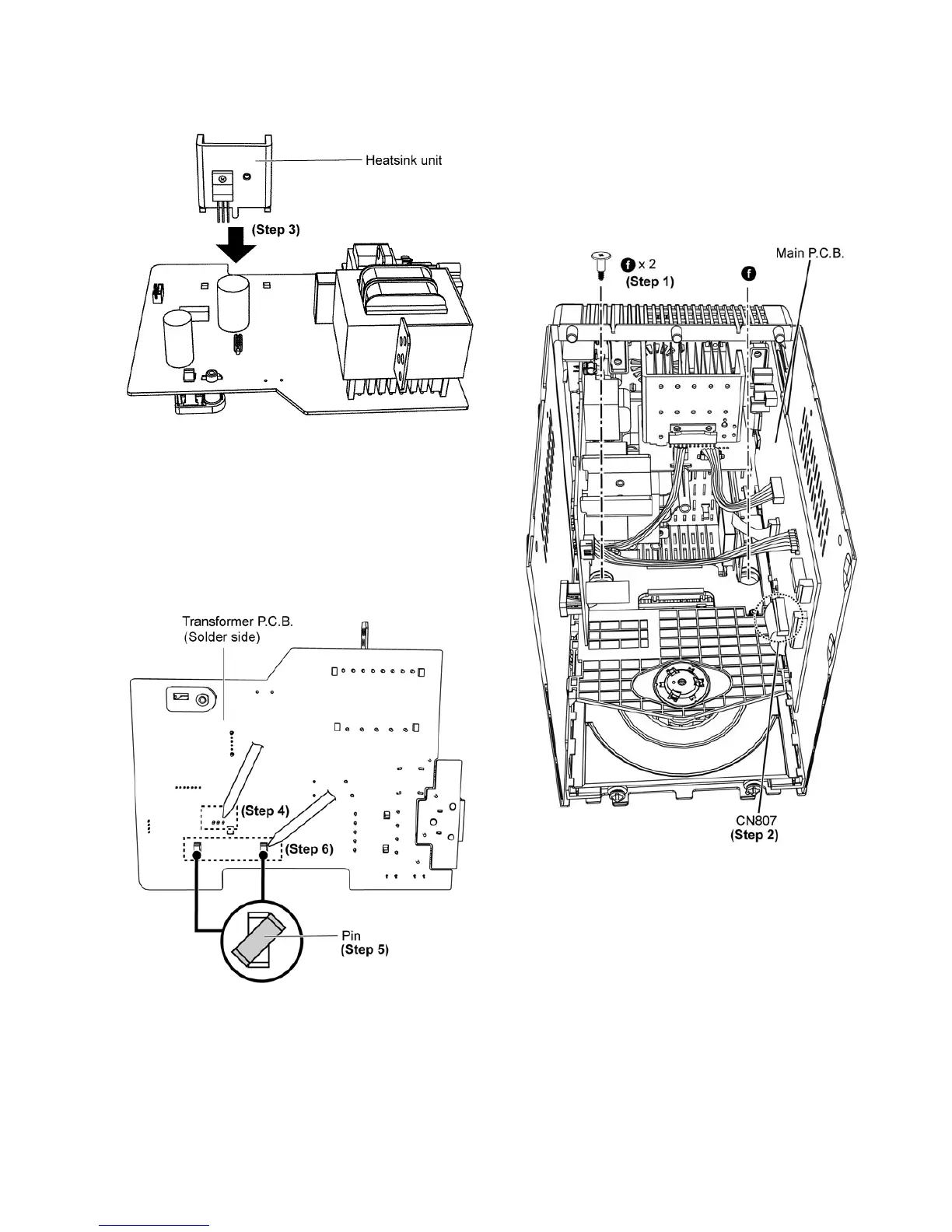

Step 3 : Mount the heatsink unit with Transistor (Q5901) on the
Transformer P.C.B.
Step 4 : Solder pins of the Transistor (Q5901).
Step 5 : Twist the pins of heatsink unit by 45°
in an anti-clock-
wise or clockwise direction.
Step 6 : Solder pins of the heatsink unit.
Caution : Ensure pins of the Transistor (Q5901) and heat-
sink unit are properly seated and soldered on the Trans-
former P.C.B.
9.16. Disassembly of CD Mecha-
nism Unit (DLS6C)
• Refer to “Disassembly of Top Cabinet Assembly”.
• Refer to “Disassembly of Front Panel Assembly”.
Step 1 : Remove 2 screws.
Step 2 : Detach 22P FFC at the connector (CN807) on Main
P. C .B .
To Next Page
