Panasonic SA-PM24EB - Page 44

44

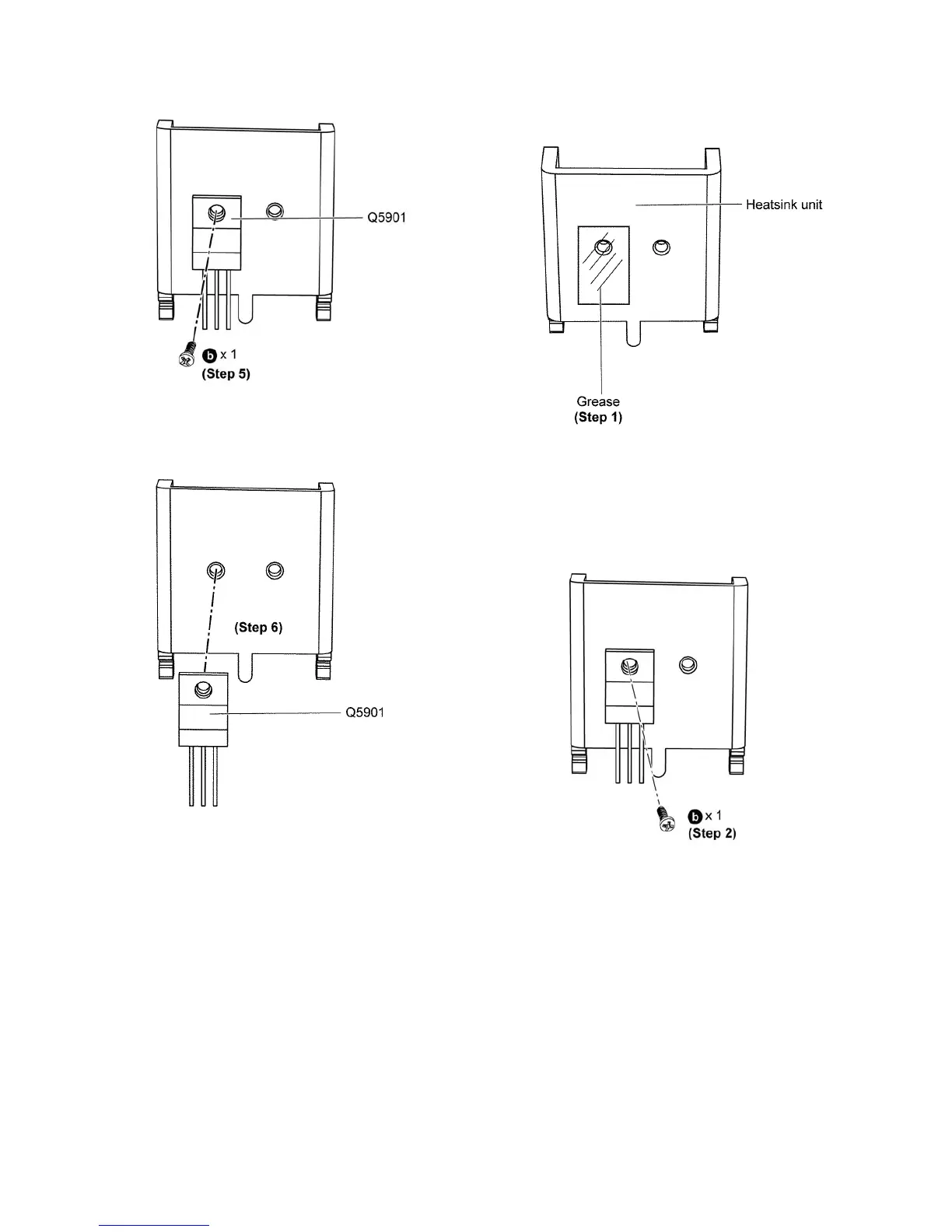

Step 5 : Remove 1 screw.
Step 6 : Remove the Transistor (Q5901).
• Assembly of Transistor (Q5901)
Step 1 : Apply grease to the heatsink unit.
Step 2 : Fix and screw the Transistor (Q5901) to the heatsink
unit.
Caution : Ensure the Transistor (Q5901) is tightly screwed
to the heatsink unit.
