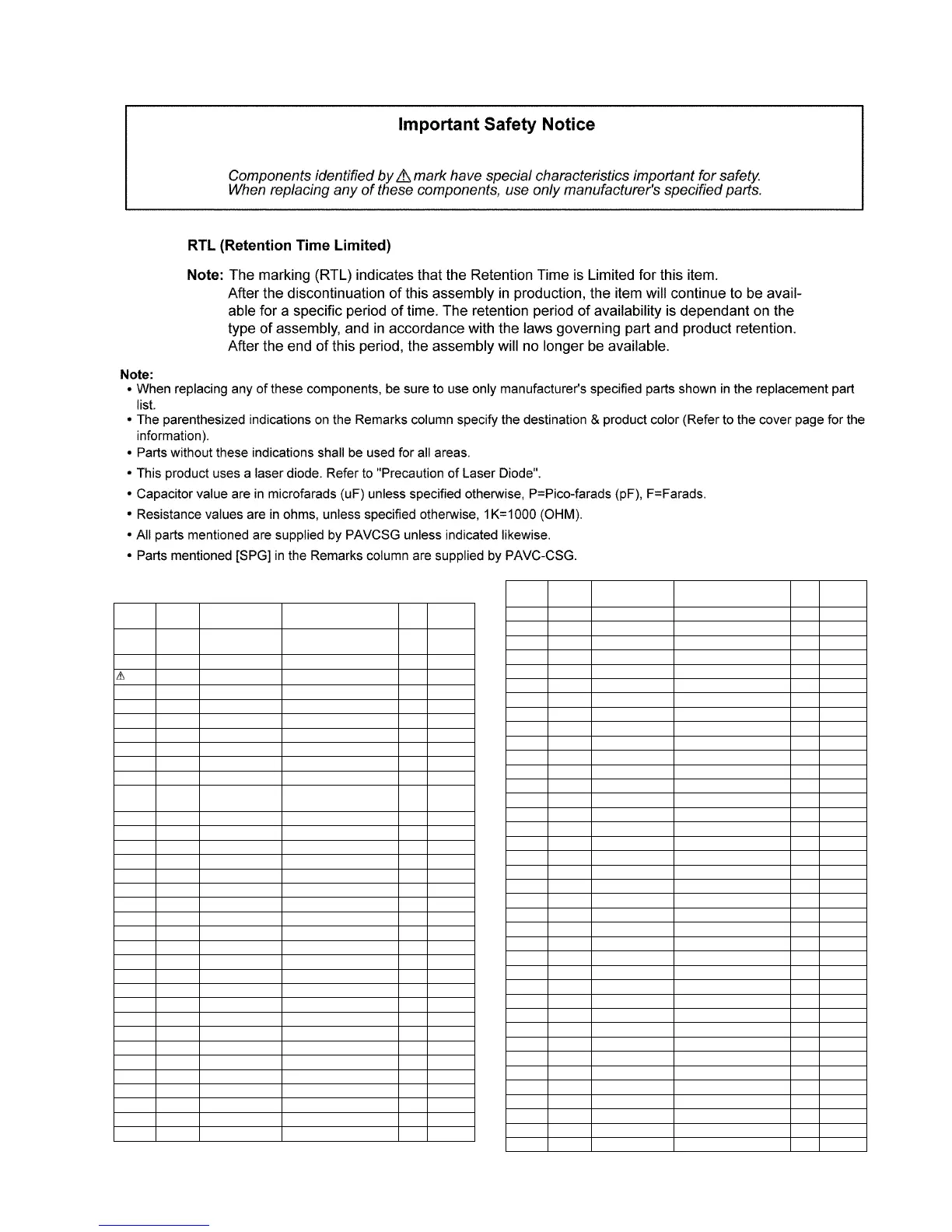

21.2. Electrical Replacement Parts List
Safety Ref.
No.
Part No. Part Name &
Description
QTY Remarks
PRINTED CIRCUIT
BOARDS
PCB1 REPX0709AA TRANSFORMER P.C.B. 1 (RTL)
PCB2 REPX0709AB POWER P.C.B. 1 (RTL)
PCB3 REPX0709AC MAIN P.C.B. 1 (RTL)
PCB4 REPX0709AD HEADPHONE P.C.B. 1 (RTL)
PCB5 REPX0709AE PANEL P.C.B. 1 (RTL)
PCB6 REPX0720B USB P.C.B. 1 (RTL)
PCB7 REPX0636A CD SERVO P.C.B. 1 (RTL)
INTEGRATED CIR-
CUITS
IC1 C1BB00001120 IC 1
IC301 C1BB00000732 IC 1
IC302 C1AB00002751 IC 1
IC650 C0DAEJG00001 IC 1
IC651 C0DBZGC00067 IC 1
IC700 C0AABB000125 IC 1
IC800 RFKWMPM5EB IC 1
IC900 C0HBB0000057 IC 1
IC900 MNZSFB5KJM2 IC 1
IC5101 AN17831A IC 1
IC5901 C0DBGYY00089 IC 1
IC7001 MN6627954AMA IC 1
IC7002 BA5948FPE2 IC 1
TRANSISTORS
Q1 B1ABDF000026 TRANSISTOR 1
Q2 B1ADCF000063 TRANSISTOR 1
Q222 B1GFGCAA0001 TRANSISTOR 1
Q650 B1BACG000023 TRANSISTOR 1
Q750 UNR211L00L TRANSISTOR 1
Q801 B1GBCFJN0028 TRANSISTOR 1
Q5901 B1BCCG000023 TRANSISTOR 1
Q5902 B1ABCF000176 TRANSISTOR 1
Q5903 2SB0621AHA TRANSISTOR 1
Q5904 UNR221100L TRANSISTOR 1
Q5905 B1ABCF000176 TRANSISTOR 1
Q5907 B1BABG000007 TRANSISTOR 1
Q7601 B1ADCF000001 TRANSISTOR 1
DIODES
D1 B0CDAD000010 DIODE 1
D2 B0CDAB000019 DIODE 1
D3 B0CDAB000019 DIODE 1
D4 B0AACK000004 DIODE 1
D650 B0EAKM000117 DIODE 1
D652 B0BC010A0267 DIODE 1
D653 MA2J1110GL DIODE 1
D654 B0EAKM000117 DIODE 1
D655 B0EAKM000117 DIODE 1
D658 B0ADFJ000004 DIODE 1
D660 B0EAKM000117 DIODE 1
D802 MA2J1110GL DIODE 1
D805 MA2J1110GL DIODE 1
D806 MA2J1110GL DIODE 1
D807 MA2J1110GL DIODE 1
D900 B0BC8R2A0266 DIODE 1
D5111 MA2J1110GL DIODE 1
D5901 B0EAMM000038 DIODE 1
D5902 B0EAMM000038 DIODE 1
D5903 B0EAMM000038 DIODE 1
D5904 B0EAMM000038 DIODE 1
D5905 B0EAKM000117 DIODE 1
D5907 B0EAKM000117 DIODE 1
D5909 B0EAKM000117 DIODE 1
D5911 B0EAKM000117 DIODE 1
D5913 B0EAKM000117 DIODE 1
D5914 B0EAKM000117 DIODE 1
D5915 B0BC030A0264 DIODE 1
Safety Ref.
No.
Part No. Part Name &
Description
QTY Remarks
