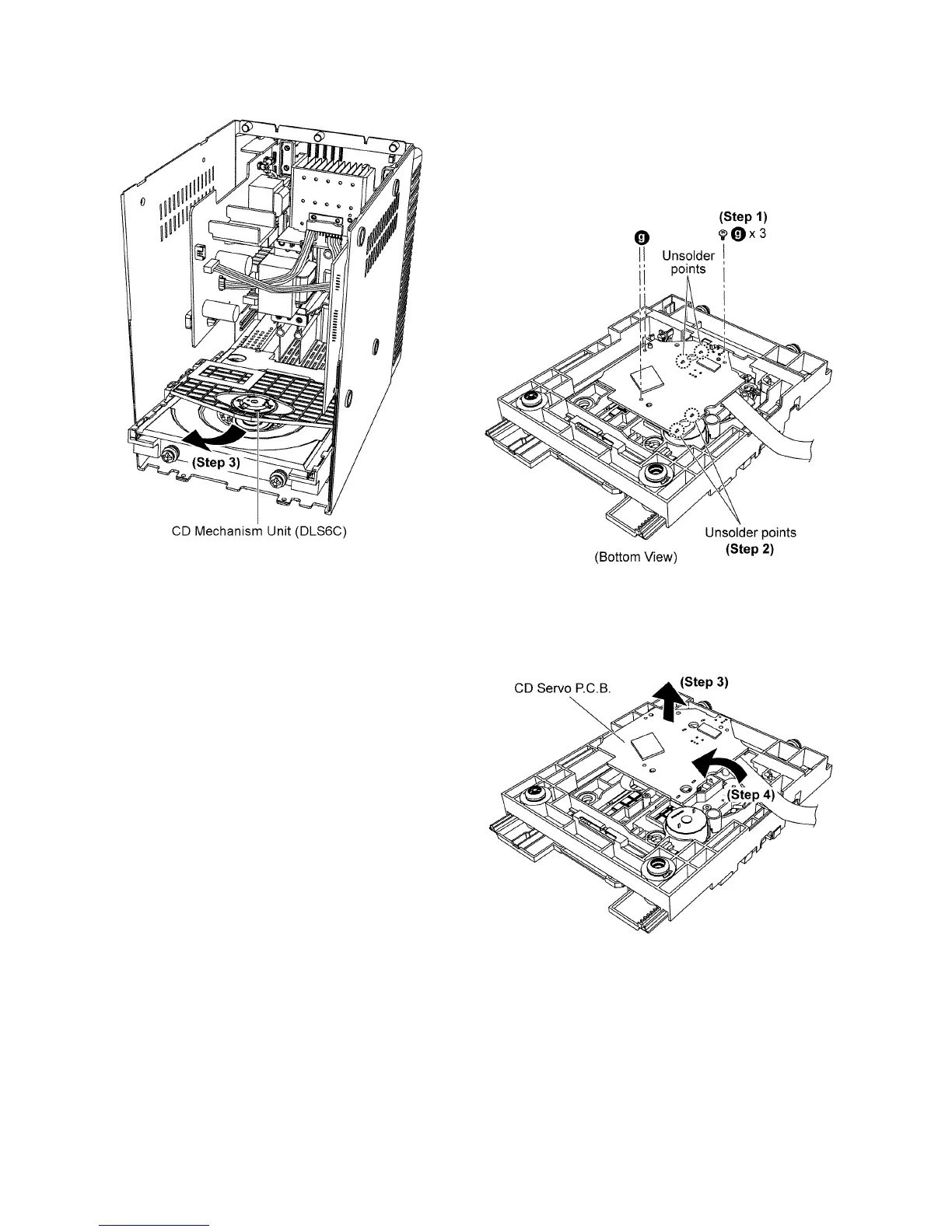

Step 3 : Slightly tilt the CD Mechanism Unit (DLS6C) and pull
out as shown.
9.17. Disassembly of CD Servo
P. C. B.
• Refer to “Disassembly of CD Mechanism Unit (DLS6C)”.
Step 1 : Remove 3 screws.
Step 2 : Unsolder 4 points.
Step 3 : Move up the CD Servo P.C.B.
Step 4 : Flip the CD Servo P.C.B.
