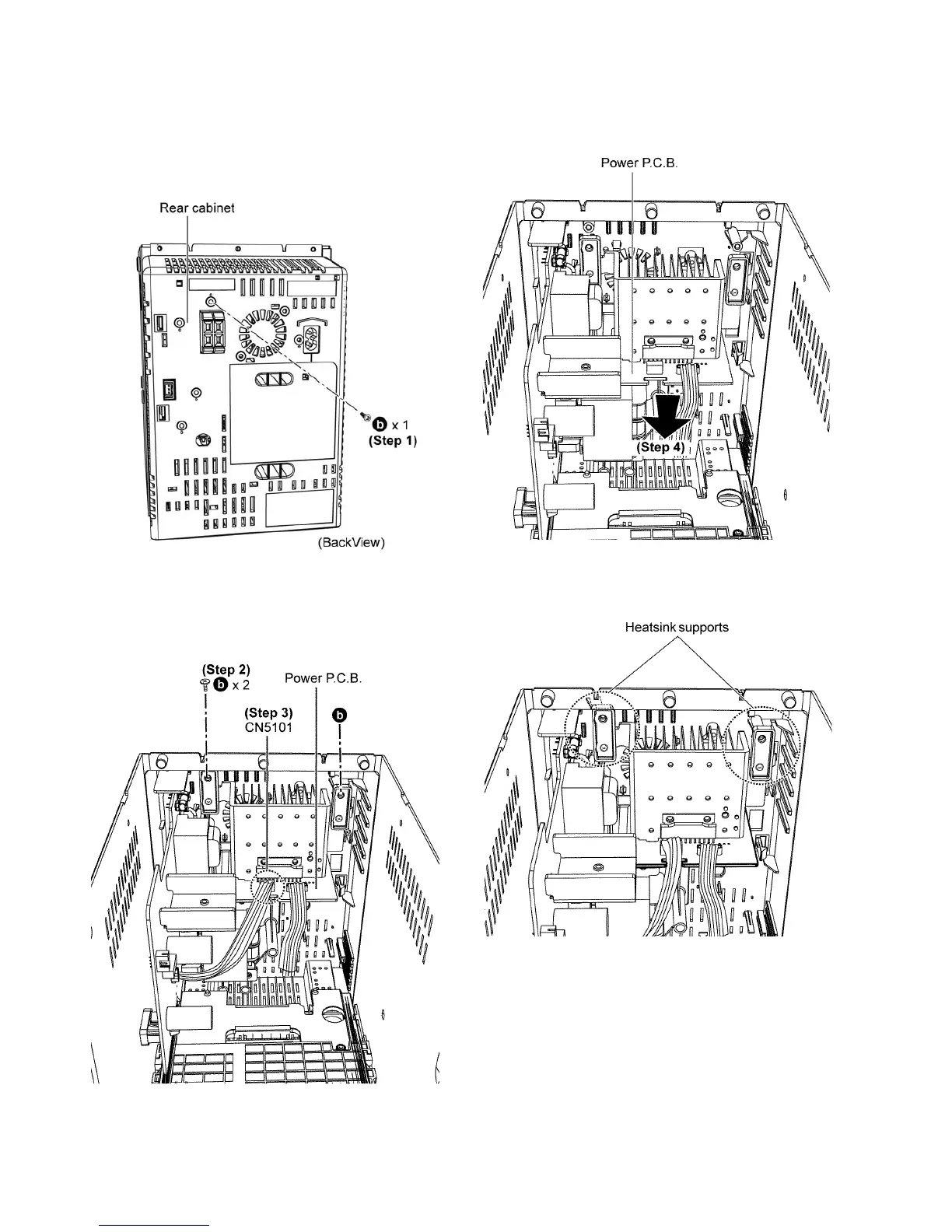

9.12. Disassembly of Power P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly”.
• Refer to “Disassembly of Front Panel Assembly”.
• Refer to “Disassembly of Main P.C.B.”.
Step 1 : Remove 1 screw.
Step 2 : Remove 2 screws.
Step 3 : Detach 4P Cable at the connector (CN5101) on Power
P. C.B .
Step 4 : Remove the Power P.C.B.
Caution : Handle the heatsink unit and P.C.B. with caution
due to its high temperature after prolonged use. Touching
it may lead to injuries.
Caution 1 : Ensure the heatsink supports are seated prop-
erly.
To Next Page
