Panasonic SA-PM24EB - Page 40

40

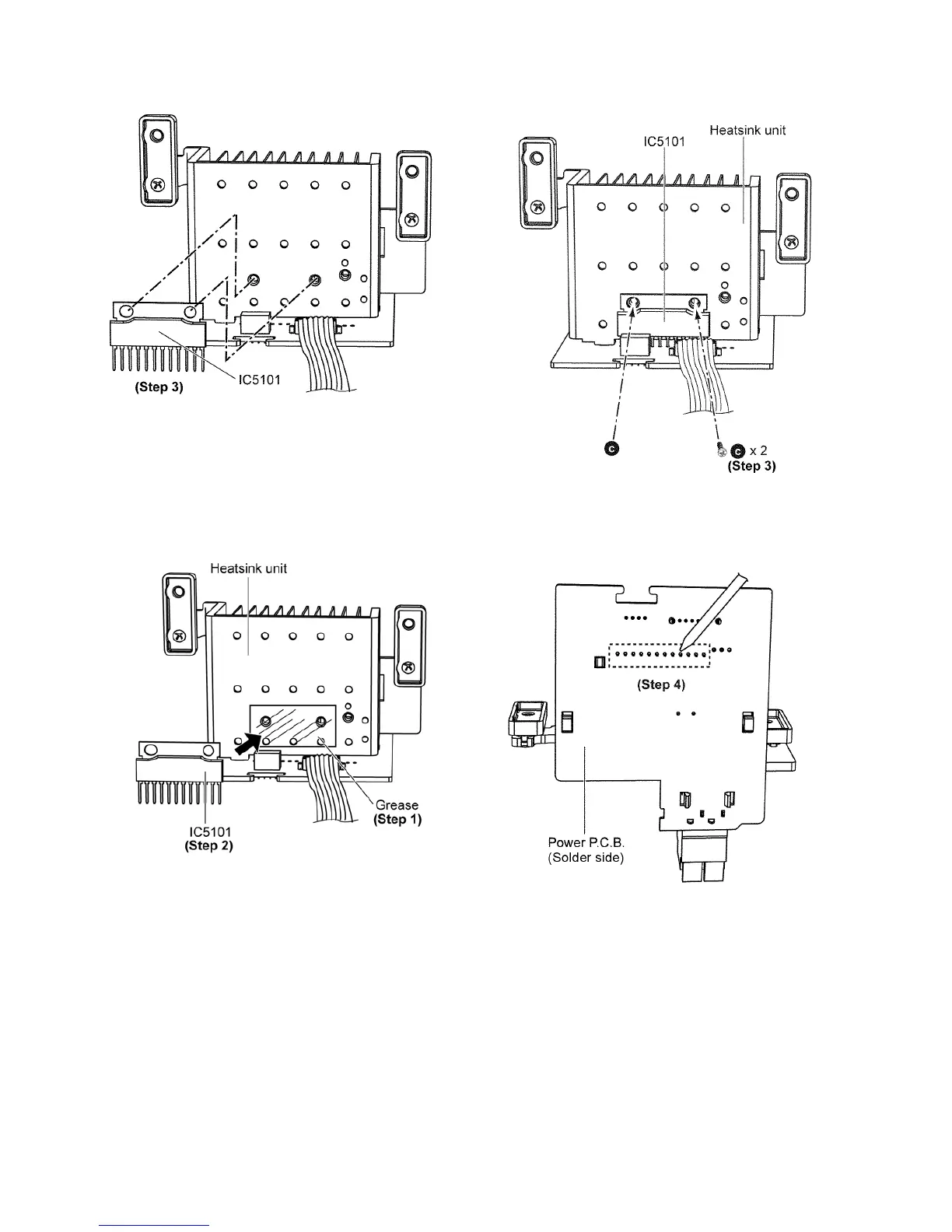

Step 3 : Remove Power Amp IC (IC5101).
• Assembly of Power Amp IC (IC5101)
Step 1 : Apply grease to the heatsink unit.
Step 2 : Install Power Amp IC (IC5101) onto Power P.C.B.
Caution : Ensure the Power Amp IC (IC5101) is seated
properly on the Power P.C.B.
Step 3 : Fix the Power Amp IC (IC5101) onto the heatsink unit
with 2 screws.
Step 4 : Solder pins of the Power Amp IC (IC5101).
Caution : Check for solderability of the Power Amp IC
(IC5101).
