50

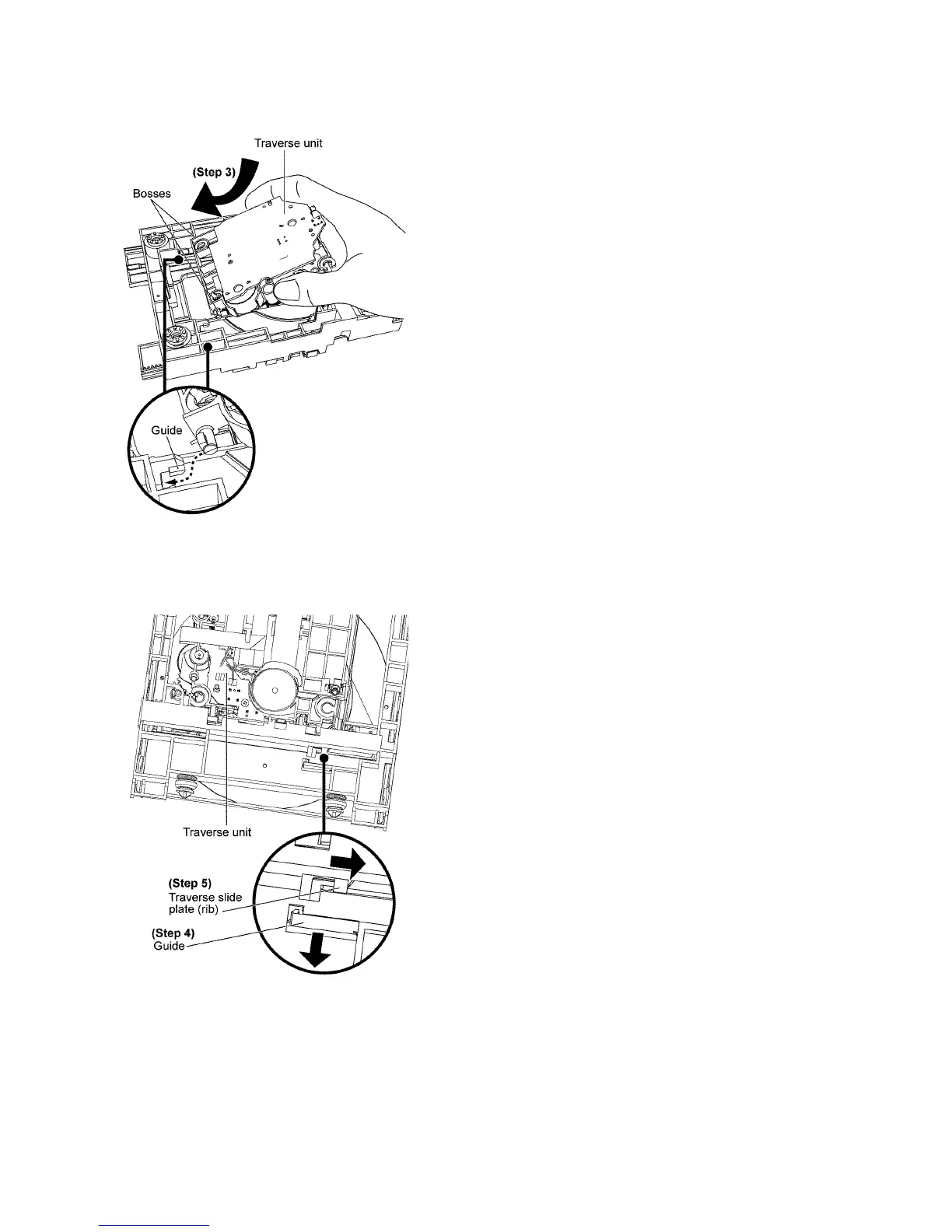

Step 3 : Slot the traverse unit at approximately 45° into the
mecha chassis as arrow shown.
Caution : Ensure the bosses fix exactly onto the guides.
Step 4 : Release the guide.
Step 5 : Push the traverse slide plate (rib) to lock the traverse
unit in.
