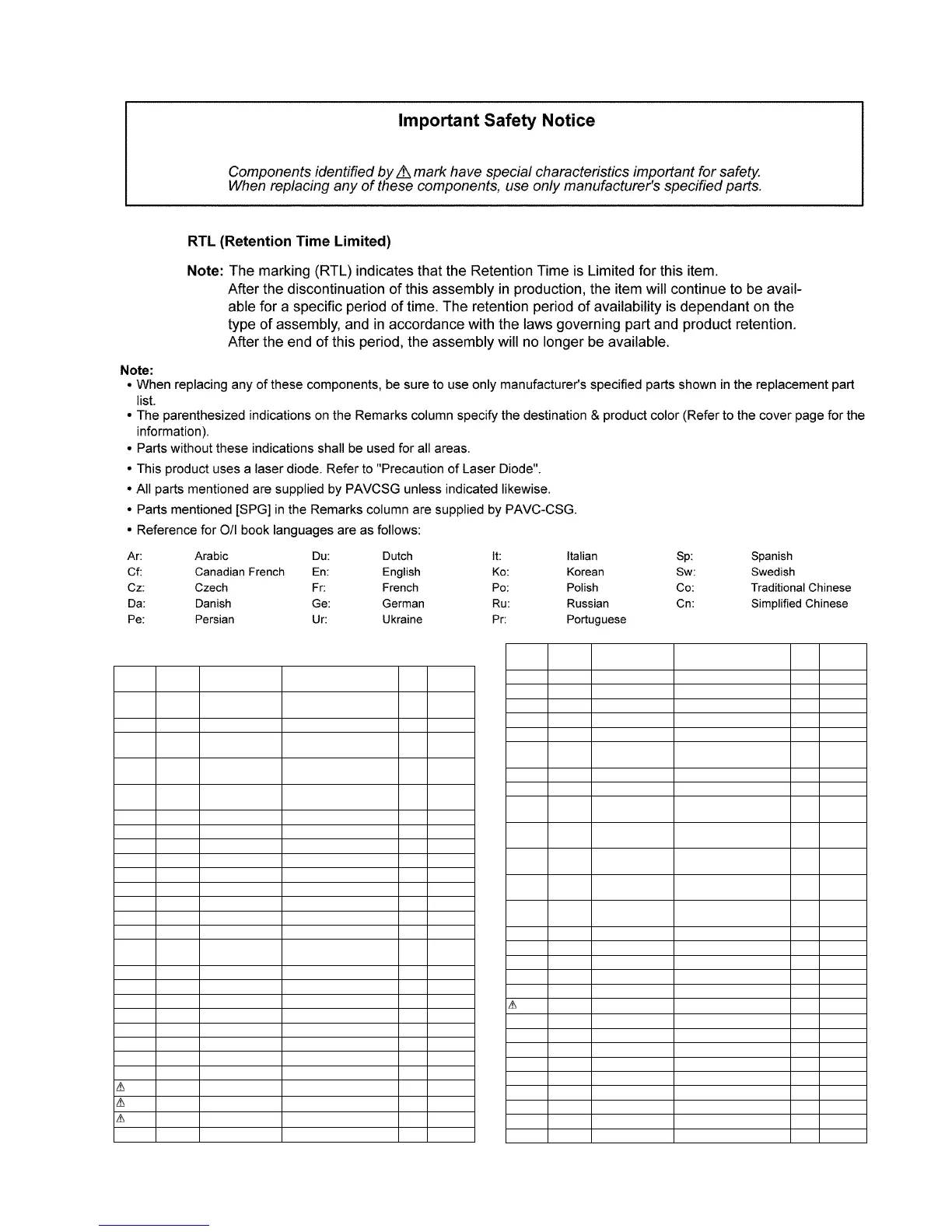

21.1.3. Mechanical Repacement Parts List
Safety Ref.
No.
Part No. Part Name &
Description
QTY Remarks
CABINET AND CHAS-
SIS
1 REEX0740 10P FFC (PANEL-
MAIN)
1
2 REEX0945 22P WIRE (MAIN-
DLS6C)
1
3 REEX0947 22P WIRE (USB-
MAIN)
1
4 RGBV0016-S PANASONIC BADGE 1
5 RGKX0513G-H FL WINDOW 1
6 RGKX0514C-1S CD LID 1
7 RGKX0515F-1S CENTER ORNAMENT 1
8 RGKX0523-2S VOLUME RING 1
9 RGPX0370N-1S FRONT PANEL 1
10 RGUX0800-1S FUNCTION BUTTON 1
11 RGUX0801A-1S CD EJECT BUTTON 1
12 RGUX0802-1S POWER BUTTON 1
13 RGUX0803-K BASS/TREBLE BUT-
TON
1
14 RGUX0804-K FF/REW BUTTON 1
15 RGUX0805-1S STOP BUTTON 1
16 RGWV0047-3S VOLUME KNOB 1
17 RHD26046-L SCREW 10
18 RHDC0023 SCREW 4
19 RHDX03001 SCREW 2
20 RKAX0042-K LEG CUSHION 4
21 RKMX0149D-K TOP CABINET 1
22 RFKHAPM24EBK REAR CABINET ASS’Y 1 EB
22 RFKHAPM24EGK REAR CABINET ASS’Y 1 EG
22 RFKHAPM24EPK REAR CABINET ASS’Y 1 EP
23 RMBX0088 CD LID SPRING 1
24 RMG0547-K CUSHION 2
25 RMNV0084 ANTENNA HOLDER 1
26 RMNX0304 USB HOLDER 1
27 RMNV0062A FL HOLDER 1
28 RMQX0353 HEAT SINK SUPPORT 2
29 RMQX0354 TRANSFORMER PCB
SUPPORT
1
30 RMQX0355 MAIN PCB SUPPORT 1
31 RMQX0359 TRANSFORMER SPACER 1
32 RWJ0204130XX 4P WIRE (TRANS-
FORMER-POWER)
1
33 RWJ1104135XX 4P WIRE (PANEL-
TRANSFORMER)
1
34 RWJ1106090XX 6P WIRE (POWER-
MAIN)
1
35 RWJ1107125XX 7P WIRE (MAIN-
TRANSFORMER)
1
36 RWJ1107138XX 5P WIRE (HEAD-
PHONE-MAIN)
1
37 XTB3+10JFJ SCREW 12
38 XTW3+10SFJ SCREW 6
TRAVERSE DECK
401 RAEX0190Z-V TRAVERSE UNIT 1
407 XTN2+6GFJ TRAVERSE UNIT 3
PACKING MATERIALS
P1 RPGX3256 PACKING CASE 1 EG
P1 RPGX3257 PACKING CASE 1 EB
P1 RPGX3258 PACKING CASE 1 EP
P2 RPNX0605 POLYFOAM 1
P3 RPHV0001-1 MIRAMAT SHEET 1
