10.3. Disassembly of Top Cabinet

Assembly

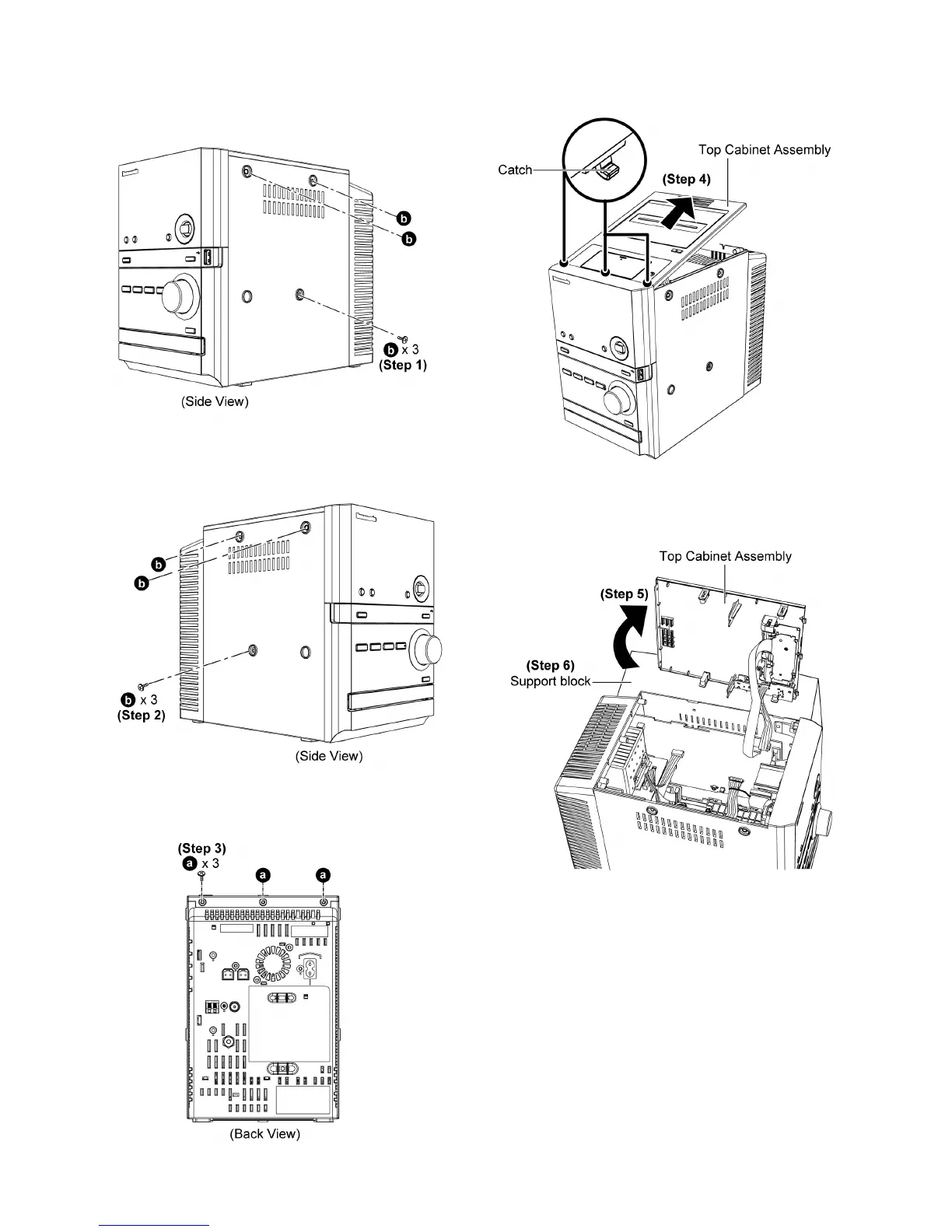

Step 1 : Remove 3 screws.

Step 2 : Remove 3 screws.

Step 3 : Remove 3 screws.

Step 4 : Lift the Top Cabinet Assembly as arrow shown to

release 3 catches.

Step 5 : Upset the Top Cabinet Assembly as arrow shown.

Step 6 : Place a support block underneath the Top Cabinet

Assembly.
