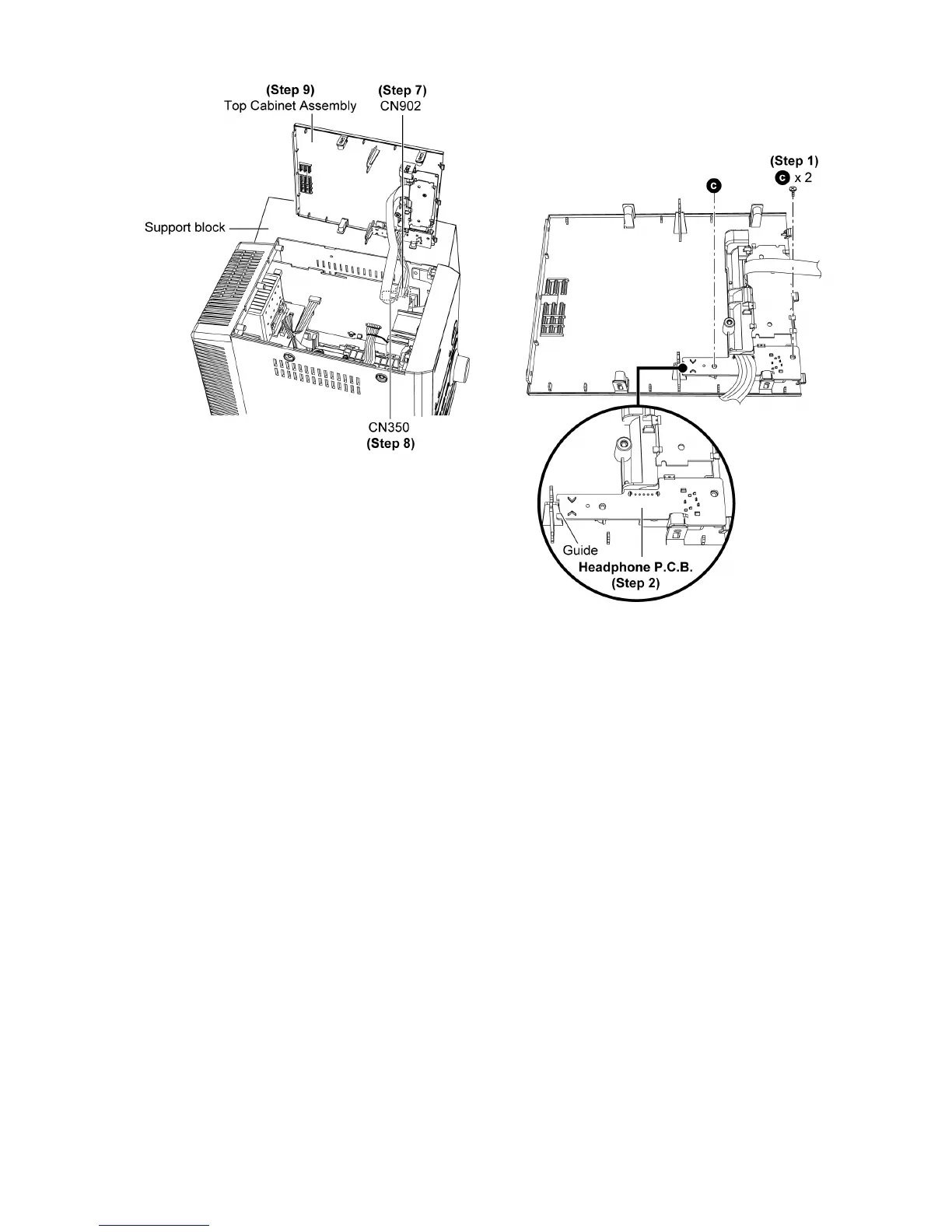

Step 7 : Detach 5P cable at connector (CN902) on Main P.C.B..

Step 8 : Detach 14P FFC at connector (CN350) on Main

P.C .B. .

Step 9 : Remove Top Cabinet Assembly.

10.4. Disassembly of Headphone

P.C.B.

• Follow the (Step 1) - (Step 9) of item 10.3.

Step 1 : Remove 2 screws.

Step 2 : Release guide and remove Headphone P.C.B..
