12 Service Position
Note: For description of the disassembly procedures, see the Section 10

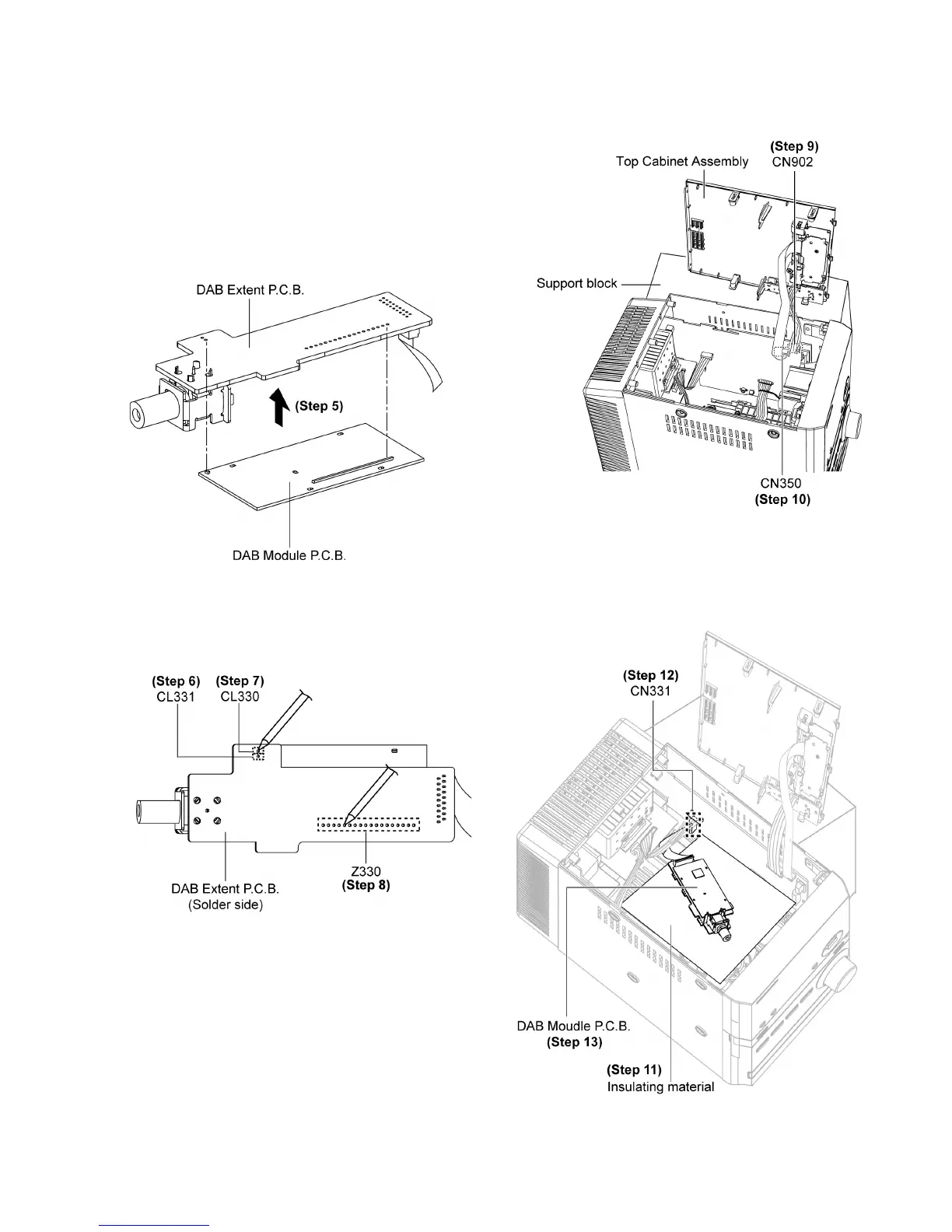

12.1. Checking & Repairing DAB
Module P.C.B.
Step 1 : Remove Top Cabinet Assembly.
Step 2 : Remove DAB Unit.
Step 3 : Remove DAB Extent P.C.B..
Step 4 : Remove DAB Module P.C.B..
Step 5 : Connect DAB Module P.C.B to the DAB Extent P.C.B..
Step 6 : Solder point of (CL331).
Step 7 : Solder point of (CL330).
Step 8 : Solder points of (Z330).
Step 9 : Connect 5P cable at connector (CN902) on Main
P. C .B . .
Step 10 : Connect 14P FFC at connector (CN350) on Main
P. C .B . .
Step 11 : Lay an insulating material under the DAB unit.
