Panasonic SA-PM38DBEB - Checking and Repairing Power PCB

54
12.5. Checking & Repairing Power
P. C .B .

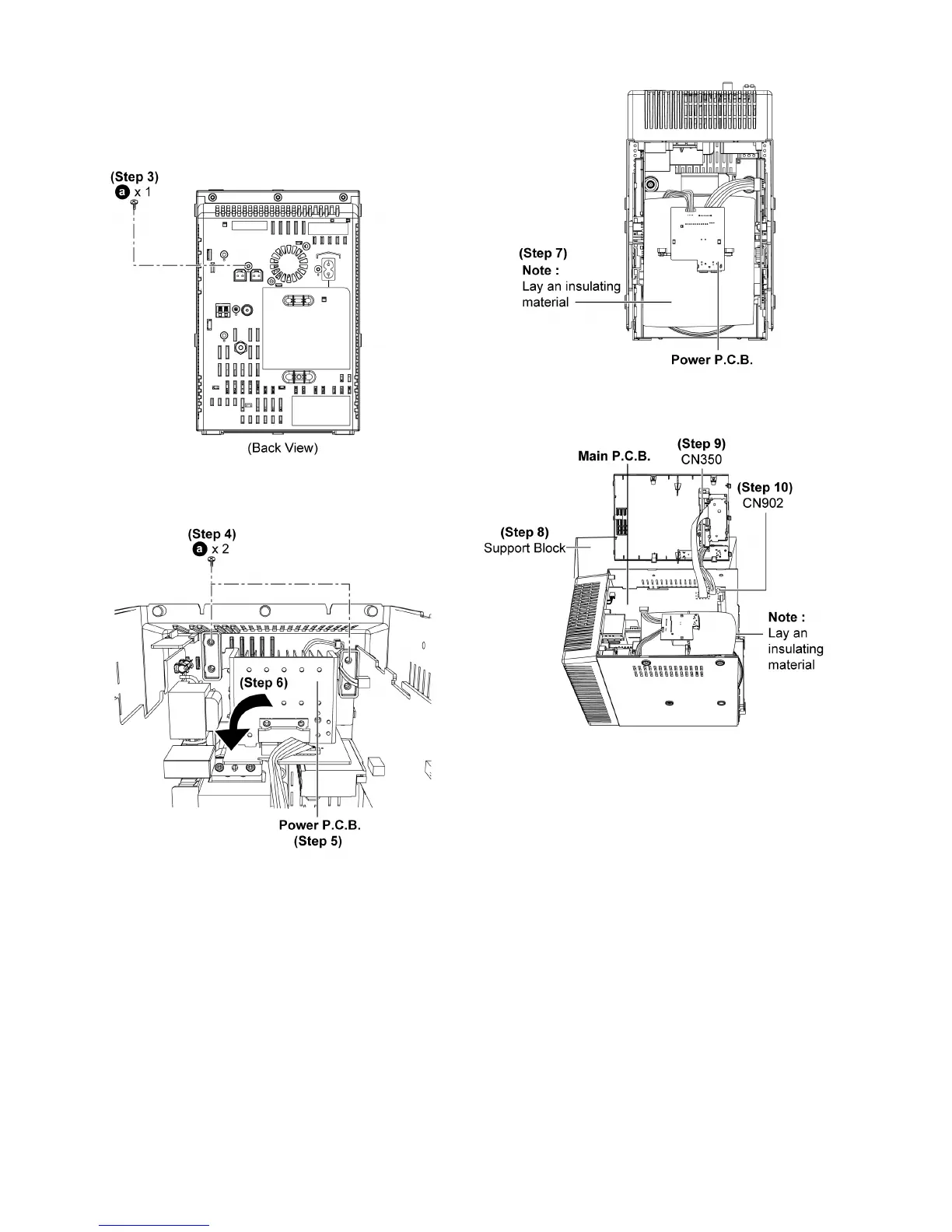

Step 1 : Remove Top Cabinet Assembly.
Step 2 : Remove Front Panel Assembly.
Step 3 : Remove 1 screw.
Step 4 : Remove 2 screws.
Step 5 : Detach Power P.C.B..
Step 6 : Flip over Power P.C.B. as arrow shown.
Step 7 : Put insulating material under Power P.C.B..
Step 8 : Place a support block underneath the Top Cabinet
Assembly.
Step 9 : Connect 14P FFC at connector (CN350) on Main
P.C .B. .
Step 10 : Connect 5P cable at connector (CN902) on Main
P.C .B. .
