10.13. Disassembly of CD Mecha-
nism Unit (DLS6C)
• Follow the (Step 1) - (Step 9) of item 10.3.
• Follow the (Step 1) - (Step 6) of item 10.7.

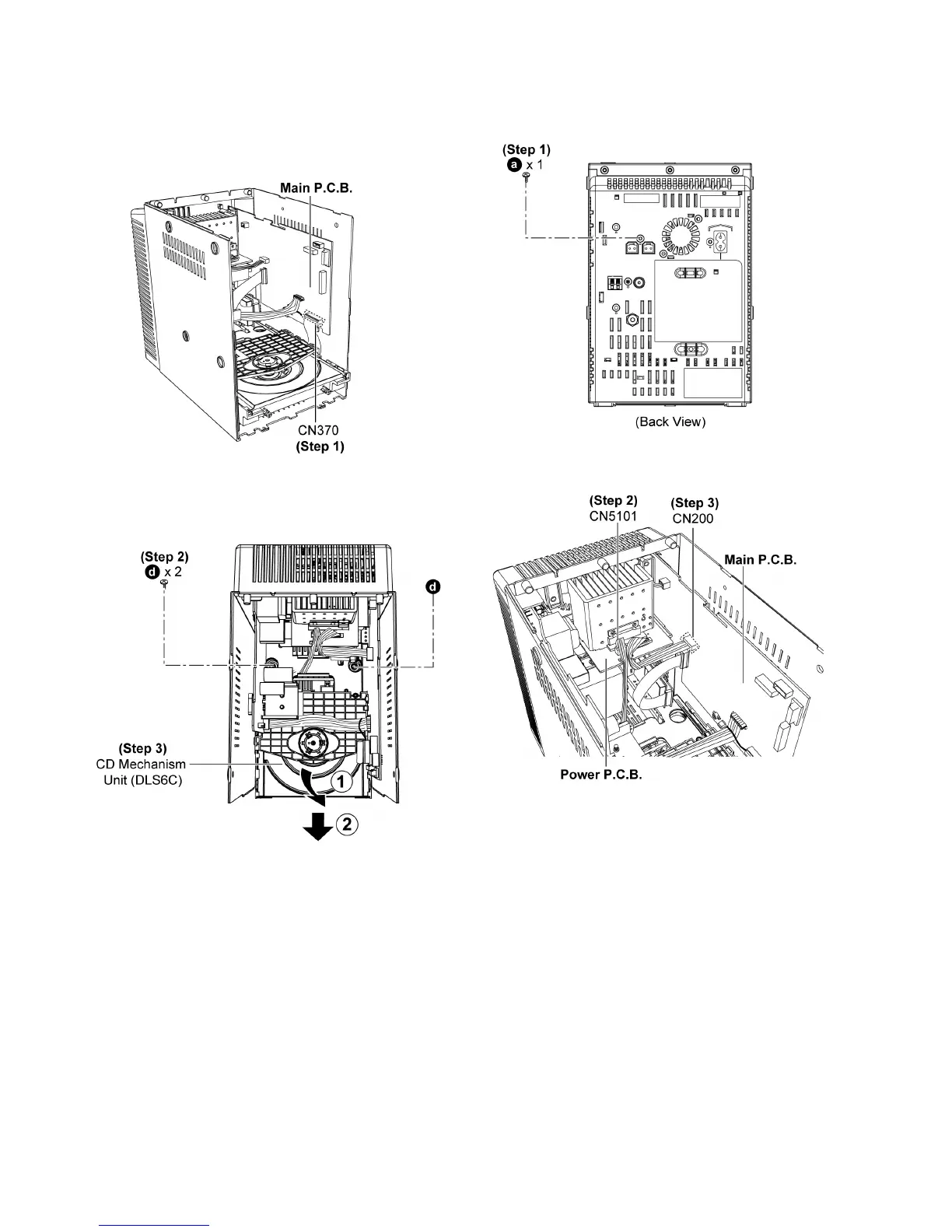

Step 1 : Detach 22P FFC at connector (CN370) on Main
P. C .B . .
Step 2 : Remove 2 screws.
Step 3 : Slightly tilt and remove the CD Mechanism Unit
(DLS6C) as arrow shown.
10.14. Disassembly of Power P.C.B.
• Follow the (Step 1) - (Step 9) of item 10.3.
• Follow the (Step 1) - (Step 6) of item 10.7.
Step 1 : Remove 1 screw.
Step 2 : Detach 4P cable at connector (CN5101) on Power
P.C .B. .
Step 3 : Detach 6P cable at connector (CN200) on Main P.C.B..
