10.20. Disassembly of CD Servo
P. C .B .
• Follow the (Step 1) - (Step 9) of item 10.3.
• Follow the (Step 1) - (Step 6) of item 10.7.
• Follow the (Step 1) - (Step 3) of item 10.13.

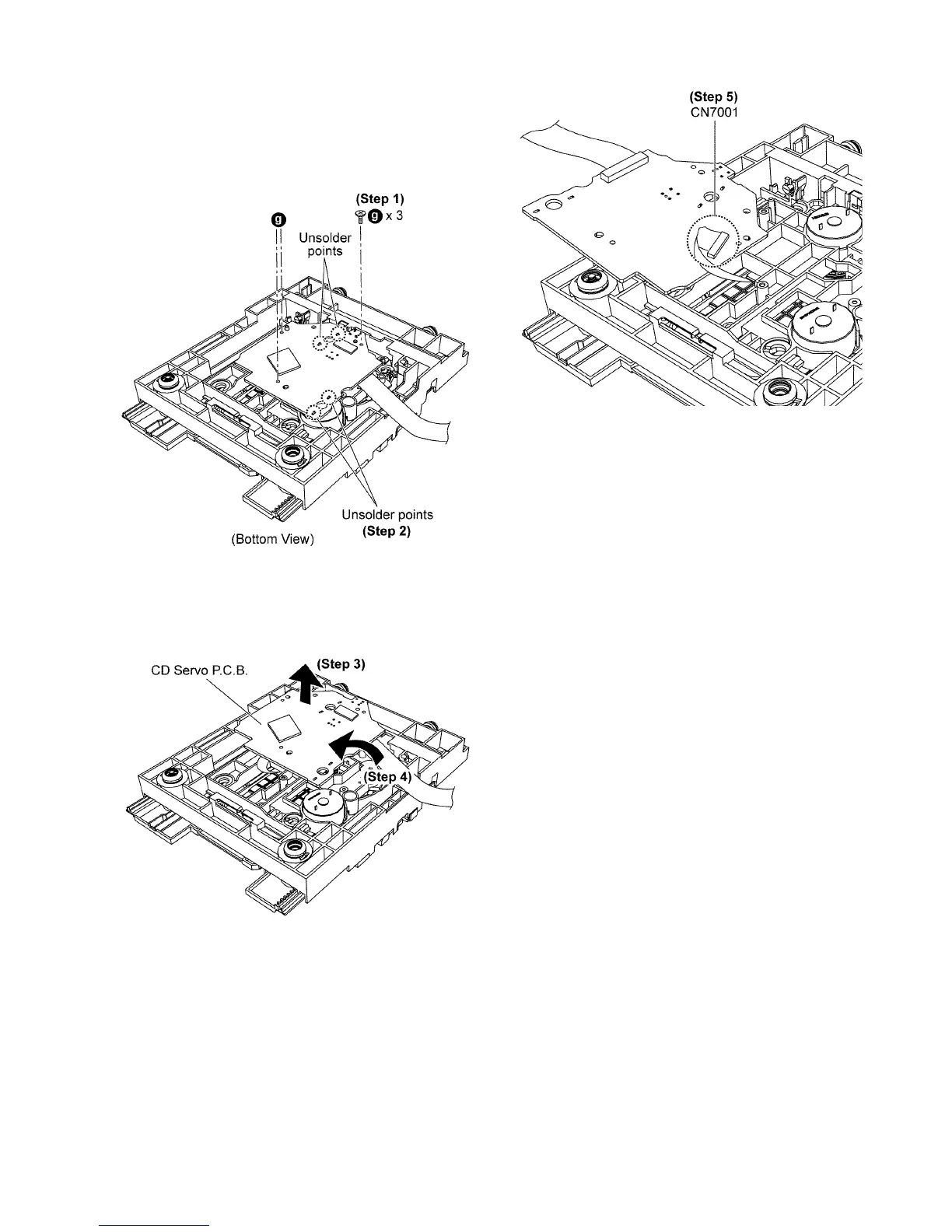

Step 1 : Remove 3 screws.
Step 2 : Unsolder 4 points.
Step 3 : Move up the CD Servo P.C.B.
Step 4 : Flip the CD Servo P.C.B.
Step 5 : Detach 16P FPC at the connector (CN7001) on CD
Servo P.C.B.
