10.16. Disassembly of Main P.C.B.
• Follow the (Step 1) - (Step 9) of item 10.3.
• Follow the (Step 1) - (Step 6) of item 10.7.
• Follow the (Step 1) - (Step 5) of item 10.14.

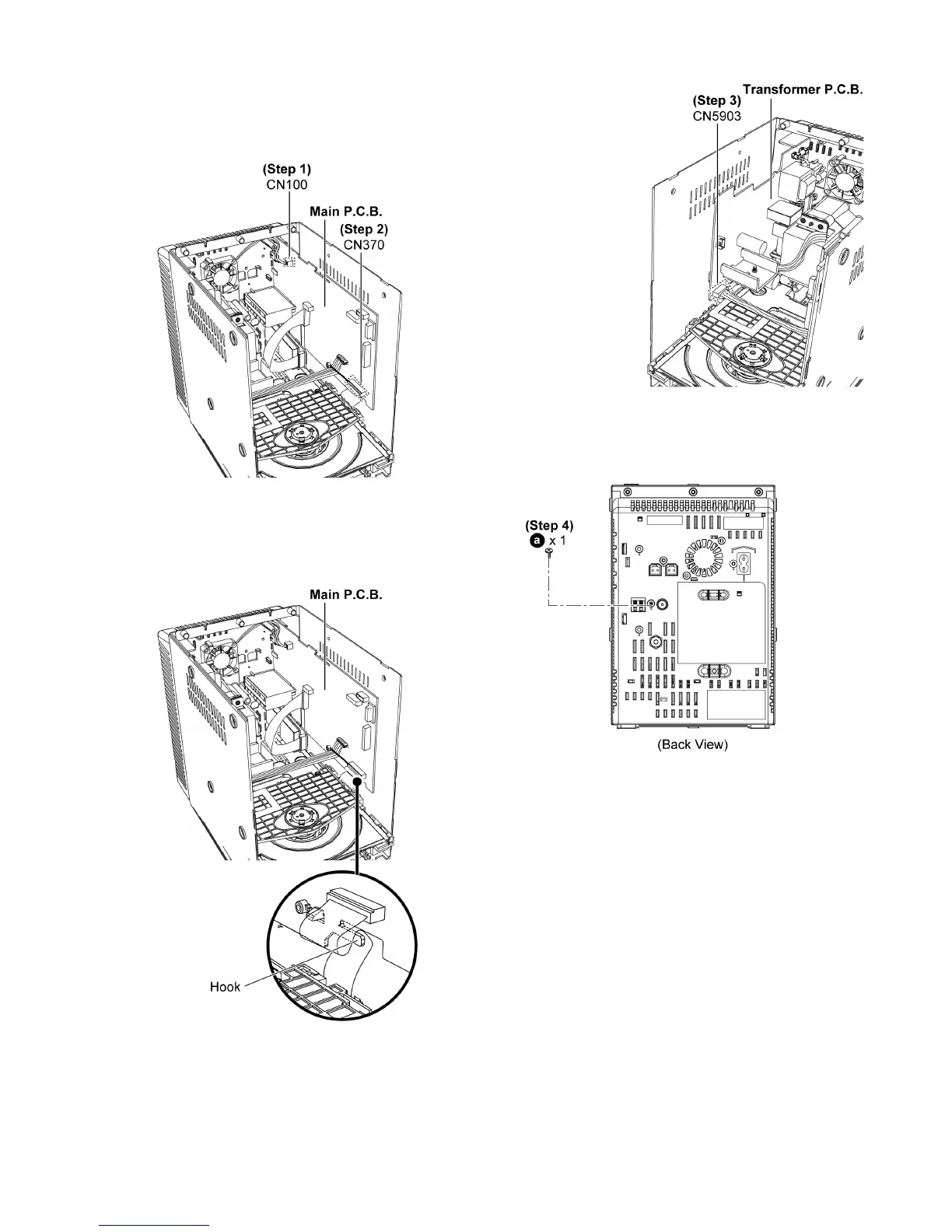

Step 1 : Detach 2P cable at connector (CN100) on Main P.C.B..
Step 2 : Detach 22P FFC at connector (CN370) on Main
P.C .B. .
Caution : Ensure the 22P FFC properly dressed into the
hook of Main P.C.B. during assembling.
Step 3 : Detach 7P cable at connector (CN5903) on Trans-
former P.C.B..
Step 4 : Remove 1 screw.
To Next Page
