Panasonic SA-PM38DBEB - CD Lid Disassembly

35
10.12. Disassembly of CD Lid
• Follow the (Step 1) - (Step 9) of item 10.3.

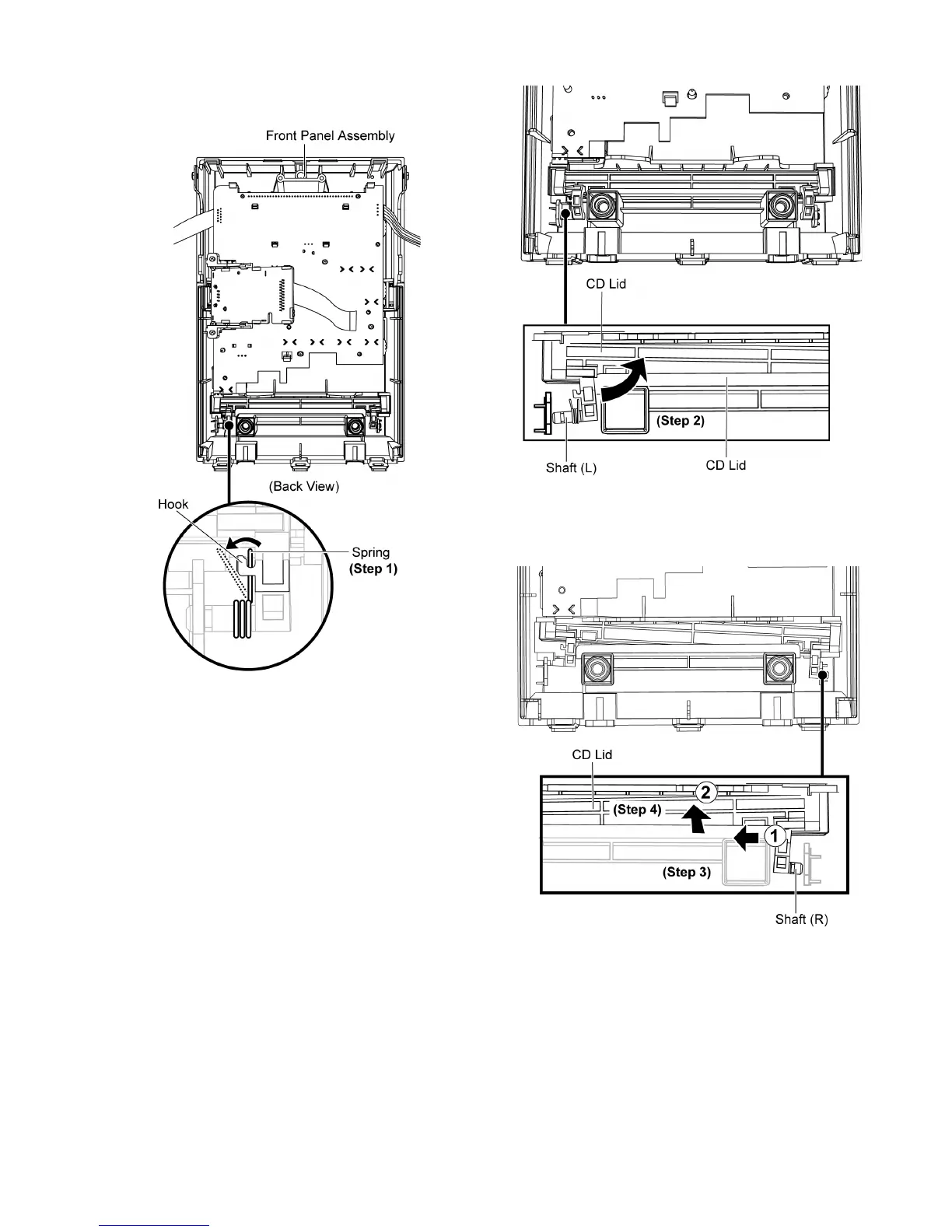

Step 1 : Lift the spring out of the hook.
Caution : Keep the spring in a safe place and place it back
during assembling.
Step 2 : Move the shaft (L) of the CD Lid in the direction of
arrow shown.
Step 3 : Move the shaft (R) of the CD Lid in the direction of
arrow shown.
Step 4 : Remove the CD Lid in the direction of arrow shown.
Caution : Do not excert strong force to the shafts during
removal and assembly of the CD Lid.
