12.3. Checking & Repairing Panel
P. C .B .

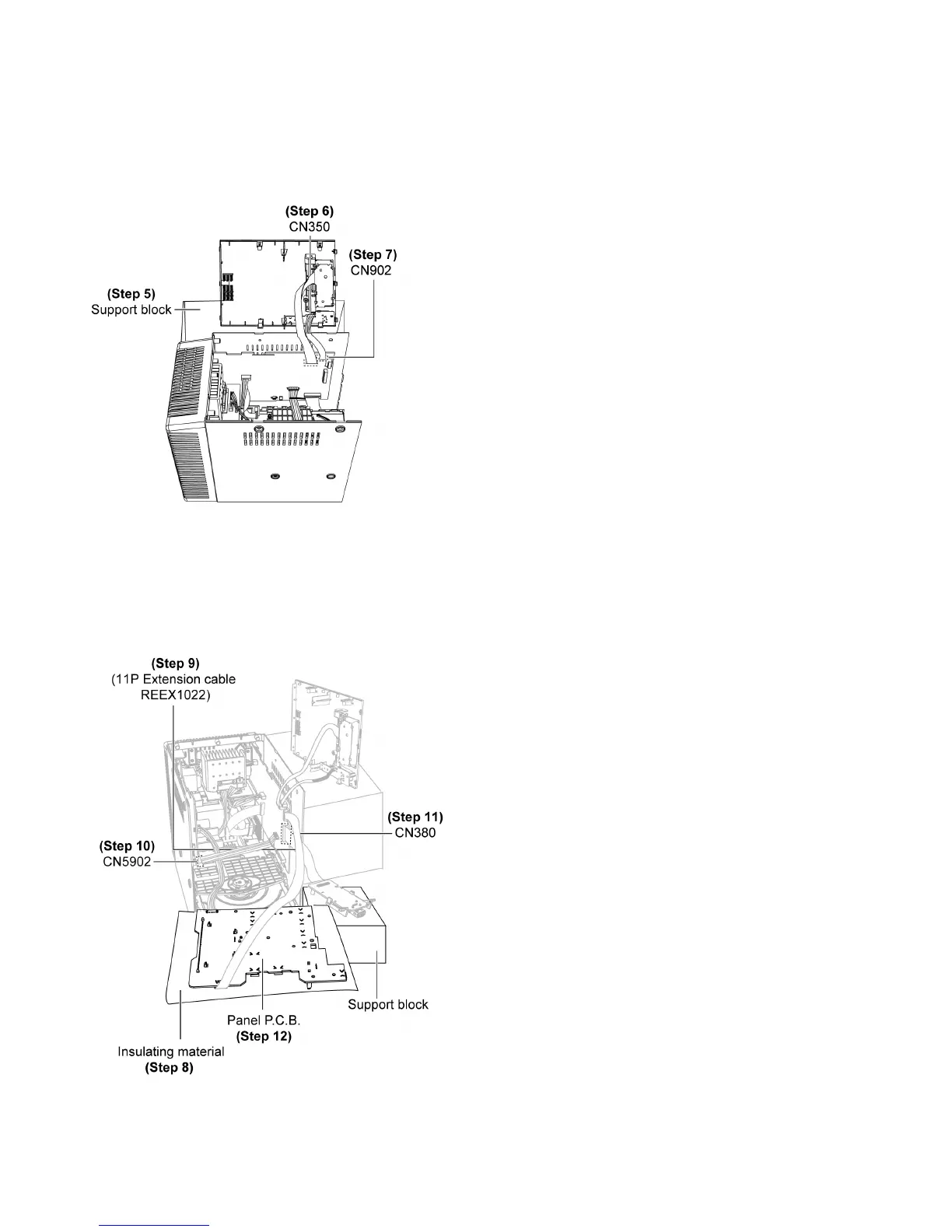

Step 1 : Remove Top Cabinet Assembly.
Step 2 : Remove Front Panel Assembly.
Step 3 : Remove USB P.C.B..
Step 4 : Remove Panel P.C.B..
Step 5 : Place a support block underneath the Top Cabinet
Assembly.
Step 6 : Connect 14P FFC at connector (CN350) on Main
P. C .B . .
Step 7 : Connect 5P cable at connector (CN902) on Main
P. C .B . .
Step 8 : Lay an insulating material on Panel P.C.B..
Step 9 : Attach extension cable REEX1022 (11P FFC from
CN901 on Main P.C.B. to CN900 on Panel P.C.B.).
Step 10 : Connect 4P cable at connector (CN5902) on Trans-
former P.C.B..
Step 11 : Connect 22P FFC at connector (CN380) on Main
P.C .B. .
Step 12 : Check & repair Panel P.C.B. according to the diagram
shown.
